Quick Details
-
Engine Brand:
-
Laidong
-
Weight:
-
1650 KG
-
Engine fuel injection:
-
Mechanical pump oil
-
Clutch Type:
-
Dual stage clutch
-
Gear Shift:
-
8F+2R shift
-
Tire Size:
-
6.0-16/9.5-24
-
PTO Speed:
-
540/1000
-
Steering:
-
Hydraulic Power Steering 4WD
-
3-point linkage:
-
3-point cat I
-
Transmission:
-
Manuel gear box
-
Differential lock:
-
Full mechanical type
-
Options:
-
Rops/Sunshade
Quick Details
-
Brand Name:
-
Jinma
-
Place of Origin:
-
Shandong, China
-
Marketing Type:
-
New Product 2024
-
Engine Brand:
-
Laidong
-
Weight:
-
1650 KG
-
Engine fuel injection:
-
Mechanical pump oil
-
Clutch Type:
-
Dual stage clutch
-
Gear Shift:
-
8F+2R shift
-
Tire Size:
-
6.0-16/9.5-24
-
PTO Speed:
-
540/1000
-
Steering:
-
Hydraulic Power Steering 4WD
-
3-point linkage:
-
3-point cat I
-
Transmission:
-
Manuel gear box
-
Differential lock:
-
Full mechanical type
-
Options:
-
Rops/Sunshade
Products Description
|

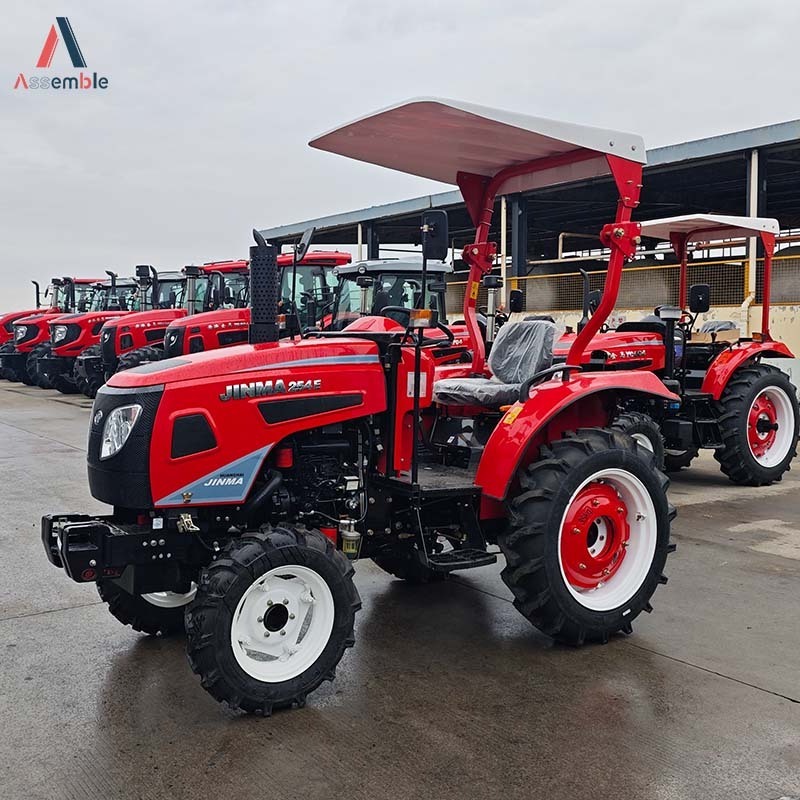

Tractor
Parameters |
Model
|
|
JINMA-254 HST
|
JINMA-254E
|
|
|
|
Drive Type
|
|
4WD
|
4WD
|
|
|
|
Overall Dimensions L×W×H(mm):
|
|
3180×1285/1450×2290
|
3360×1500×2450
|
|
|
|
Wheel Track(mm)
|
Front
|
970/1210
|
1050
|
|
|
|
|
Rear
|
1000/1160
|
1200
|
|
|
|
Wheelbase(mm)
|
|
1540
|
1755
|
|
|
|
Ground Clearance(mm)
|
|
300
|
320
|
|
|
|
Rated Traction Force(kn)
|
|
7
|
6
|
|
|
|
Construction Mass(kg)
|
|
1080
|
1527
|
|
|
|
Min.Turning Radius(m)
|
|
3.27
|
3
|
|
|
|
Theoretical Speed(km/h)
|
Forward
|
0~20
|
1.78~26.93
|
|
|
|
|
Reverse
|
0~20
|
0.43/2.10
|
|
|
Engine
Specifications |
Model
|
|
Perkins 403J-11(EPA Tier 4)
|
KM385BT-VT37(EURO V)
|
|
|
|
Type
|
|
3 cylinder,water cooled, 4 stroke
|
3 cylinder, water cooled, 4 stroke
|
|
|
|
Rated Power(kw/hp)
|
|
18.4/25
|
18.4/25
|
|
|
|
Rated Speed (rpm)
|
|
2600
|
2400
|
|
|
|
Bore×Stroke (mm)
|
|
77×81
|
90×95
|
|
|
|
Total Displacement(L)
|
|
1.131
|
1.813
|
|
|
Drive
System |
Clutch
|
|
Monolithic dry combined with friction
|
Dual-Stage
|
|
|
|
Gear Box
|
|
Hydraulic continuously variable speed
|
8F+2R
|
|
|
|
Main Drive
|
|
A pair of spiral bevel gears
|
Two bevel gears
|
|
|
|
Differential
|
|
Two closed planetary wheel
|
Two planetary gear
|
|
|
|
Differential Lock
|
|
Tooth type
|
Jaw lock
|
|
|
|
Final Transmission
|
|
External gear
|
Single spur gear
|
|
|
Traveling
Mechanism |
Tyre
|
Front
|
6.0-12
|
6.00-16
|
|
|
|
|
Rear
|
11.2-20
|
9.5-24
|
|
|
|
Steering Gear
|
|
Full Hydraulic Steering
|
hydraulic steering
|
|
|
|
Brake |
|
Double pedal disc brakes |
disc brake
|
|
|
Working
Device |
Lifting Capacity at
610mm(kn) |
|
3.9
|
4.2
|
|
|
|
3-Point Linkage
|
|
Category :I
|
Category :l
|
|
|
|
Rotating Speed (rpm)
|
|
540/1000
|
540/1000
|
|
|
|
Spline Size
|
|
6-Ø35 Rectangular Spline
|
6-Ø35 Rectangular Spline
|
|
*Fully flat floor design, no exposed chassis, more leg room
*
Side shift,frees up leg space and is more convenient and comfortable
*
Mechanical shock-absorbing seats reduce work fatigue
*Laidong KM385BT Euro Stage V engine,
Comply with European emission standards
*
3-cylinder, in-line, water-cooled, four-stroke standardization
*
The hydraulic system has independent oil supply, making the oil supply flexible and efficient.
*
