SevenLift Actuation stair lift control panels are both on the bottom of the lift and the platform.
Two remote controllers are more convenient in your using.
- Product Details
- {{item.text}}
Quick Details
-
Power:
-
2.2kw
-
Min. Lifting Height:
-
1m
-
Table Size:
-
1200*1000mm
-
Overall Dimensions:
-
1300*1400*3200mm
-
Weight:
-
500 kg
-
Application:
-
SevenLift passenger elevator platform for the deadlift in villa
-
Type:
-
7LSJW Wheelchair Lift Elevator
-
Material:
-
High-duty Stainless Steel
-
Install method:
-
Directly on the floor by anchor bolts
-
Paint:
-
Steel plate with powder spraying
-
Voltage:
-
2.2kw/Local Voltage
-
Keywords:
-
Safety door on upper floor
-
Control:
-
Double Controller
-
Feature:
-
Low Noise
-
Usage:
-
Higher Level
-
Certification:
-
ISO
Quick Details
-
Warranty:
-
12 Months
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SevenLift
-
Power:
-
2.2kw
-
Min. Lifting Height:
-
1m
-
Table Size:
-
1200*1000mm
-
Overall Dimensions:
-
1300*1400*3200mm
-
Weight:
-
500 kg
-
Application:
-
SevenLift passenger elevator platform for the deadlift in villa
-
Type:
-
7LSJW Wheelchair Lift Elevator
-
Material:
-
High-duty Stainless Steel
-
Install method:
-
Directly on the floor by anchor bolts
-
Paint:
-
Steel plate with powder spraying
-
Voltage:
-
2.2kw/Local Voltage
-
Keywords:
-
Safety door on upper floor
-
Control:
-
Double Controller
-
Feature:
-
Low Noise
-
Usage:
-
Higher Level
-
Certification:
-
ISO
Product Description
Product Application

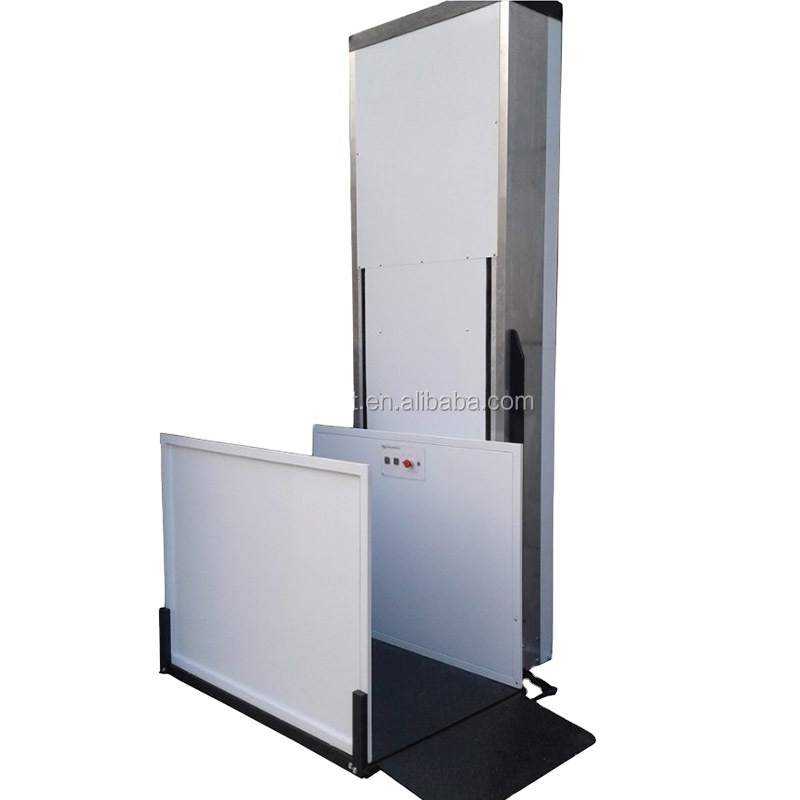

The
passenger scissor lift elevator platform for wheelchair in villa
is vertical lift platform for disabled people, suitable for indoor or outdoor, provides safe and convenient access in different level, includes access solutions for churches, schools or commercial sites etc. It is customized design for your real condition to install a convenient lift.
|
passenger scissor lift elevator platform for wheelchair in villa
|
|
|
|
|||
|
Lifting height
|
1.5m
|
|
||||
|
|
Table size
|
1.2x1m
|
|
|||
|
|
Motor Power
|
220v, 1.5kw, single phase
|
|
|||
|
Material
|
covered with stainless steel
|
|
||||
|
|
Controller
|
2 control panels both on the ground and the platform, two remote controllers.
|
|
|||
|
|
Installation
|
Installed on the ground directly
|
|
|||
|
Overload protection
|
If overload, the lift will not work.
|
|
||||
|
|
Emergency stop
|
It can be stopped immediately in case of power failure
|
|
|||
|
|
Safety pan
|
It will stop immediately once it meets obstacle.
|
|
|||
Customized Production
Lift height: 1m - 12m
Load capacity: 250kg - 350kg
Platform size: 1000*1200mm
Installation: In a pit or directly on the ground, mobile lift with wheels is also OK
Certifications
Detailed Images
The Actuation stair lift safety pan can make the lift stops immediately once it meets obstacle.
The auto ramp is on the enter side which is automatic turn up max 75 Degree, go up together with platform.
It is customized as the real install condition, if not available, we will supply fixed ramp which set on the ground.
Two Actuation stair lift legs fixed on ground directly by anchor bolts, to make the platform steady.
Our Service
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
1300x1400x3000mm
|
|
|
Weight
|
800kg
|
|
|
Packaging Details
|
||
|
Delivery
|
|
|
|
SevenLift Delivery
|
Ship by sea
|
|
|
Port
|
Qingdao, other ports is available.
|
|
|
Delivery Details
|
||
FAQ
Questions about 7LSJW Shandong SevenLift passenger scissor lift elevator platform for wheelchair in villa
Q1. Can I have a sample model?
A:Our
passenger scissor lift elevator platform for wheelchair in villa
is customized based on your detail request, you can buy one for your testing at first.
MOQ 1 set is available.
Q2. What about the delivery time?
A: It usually takes about 20 working days after we receive the deposit.
Q3. What kind of payment do you support?
A: T/T, L/C, West Union, Alibaba Trade Assurance. T/T is usually.
Q4.
How to proceed an order for the lift
?
A: Firstly, tell us your requirements, if you can send a photo where you will use the lift, it will be better.
Secondly, we send you our suggestions and quote according to the practical situation.
Thirdly, you confirm the quotation along with your request details and places deposit.
Then we arrange the production. Once we finish the production, we will send photos for your reference.
Q5. How to transfer the lift machine?
A: It is usually shipped by sea. Plywood package and LCL in a 20' container.
The ship has to be booked one-week before, and shipping time is usually longer, please be patient.
Q6. Is it OK to print my LOGO on the lift?
A:Yes. Please inform us formally before our production and send us your high pixel LOGO.
Q7:
How to deal with the broken
?
A: Firstly, our products are produced in strict quality, we must test it before we sending out each machine.
Secondly, we will buy an Insurance for any CIF product to make sure the lift safety in shipping.
If any parts broken, you can tell us, we have one year warranty and free send you a new spare parts and we supply technical supporting all the times.
