Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LEYU
-
Model Number:
-
MDR-20-24
-
Output Frequency:
-
50-100KHZ
-
Output Current:
-
1A
-
Product Name:
-

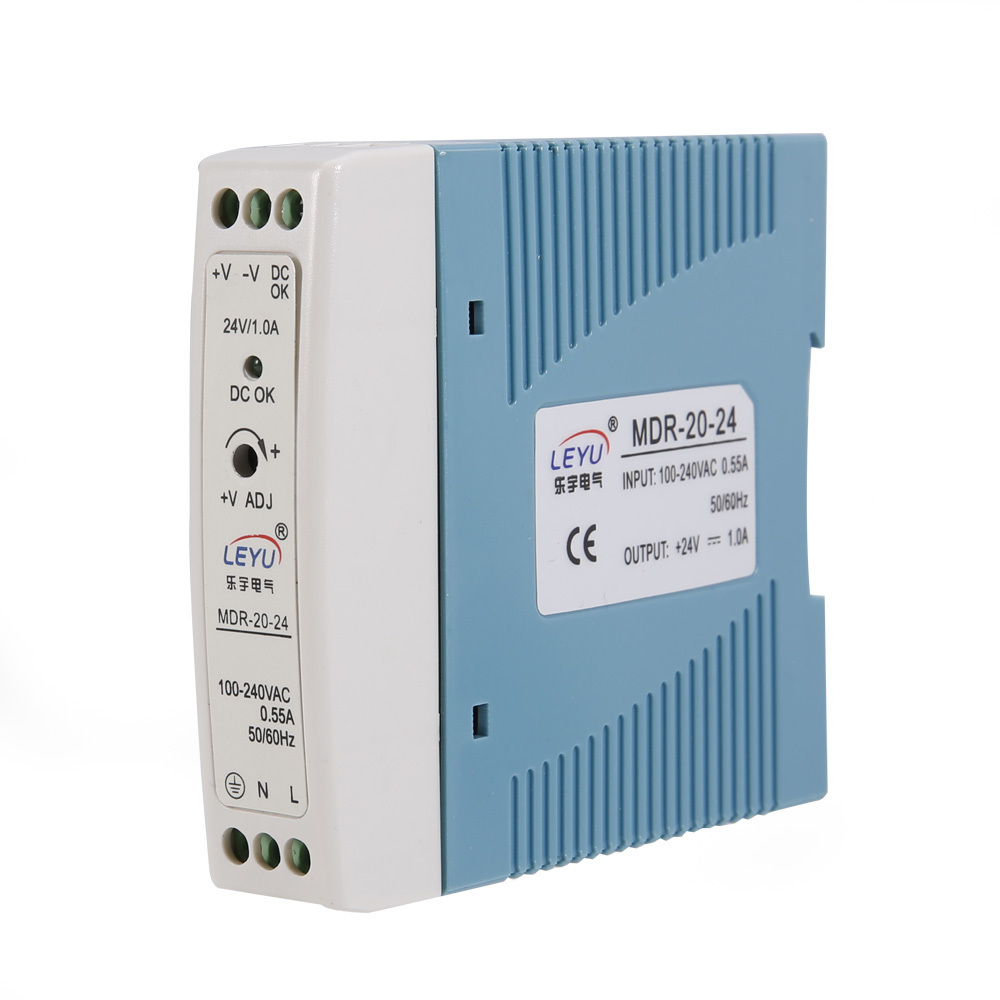

20W 24V 1A Single Output Industrial DIN Rail Power Supply
-
Certification:
-
CE ROHS
-
Application:
-
LED Lighting, Electrical Equipment, Industral Contro
-
Warranty:
-
2 Years
-
Protections:
-
Short circuit/ Over load/ Over voltage
-
Feature:
-
Universal AC input/ full range
-
Efficiency:
-
83%
-
Size:
-
22.5*90*100mm(L*W*H)
-
Weight:
-
0.2KG/PC
Quick Details
-
Output Power:
-
1 - 50W
-
Input Voltage:
-
85-264VAC/120-370VDC
-
Output Voltage:
-
24V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LEYU
-
Model Number:
-
MDR-20-24
-
Output Frequency:
-
50-100KHZ
-
Output Current:
-
1A
-
Product Name:
-
20W 24V 1A Single Output Industrial DIN Rail Power Supply
-
Certification:
-
CE ROHS
-
Application:
-
LED Lighting, Electrical Equipment, Industral Contro
-
Warranty:
-
2 Years
-
Protections:
-
Short circuit/ Over load/ Over voltage
-
Feature:
-
Universal AC input/ full range
-
Efficiency:
-
83%
-
Size:
-
22.5*90*100mm(L*W*H)
-
Weight:
-
0.2KG/PC
Product Description
Specification
|
SPECIFICATIONS
|
|
|
|
|
||||
|
Model
|
MDR-20-5
|
MDR-20-12
|
MDR-20-15
|
MDR-20-24
|
||||
|
DC Voltage
|
5V
|
12V
|
15V
|
24V
|
||||
|
Rated Current
|
3A
|
1.67A
|
1.34A
|
1A
|
||||
|
Current Range
|
0-3A
|
0-1.67A
|
0-1.34A
|
0-1A
|
||||
|
Rated Power
|
15W
|
20W
|
20W
|
24W
|
||||
|
Ripple & Noise
|
80mVp-p
|
120mVp-p
|
120mVp-p
|
150mVp-p
|
||||
|
Voltage Tolerance
|
±2%
|
±1%
|
±1%
|
±1%
|
||||
|
Line regulation
|
±1.0%
|
±1.0%
|
±1.0%
|
±1.0%
|
||||
|
Load regulation
|
±1.0%
|
±1.0%
|
±1.0%
|
±1.0%
|
||||
|
Setup, Rise Time
|
500ms,30ms/230VAC 1000ms,30ms/115VAC at full load
|
|
|
|
||||
|
Voltage Range
|
85~264VAC 47~63Hz; 120~370VDC
|
|
|
|
||||
|
AC Current
|
0.55A/115VAC 0.35A/ 230VAC
|
|
|
|
||||
|
Efficiency
|
76%
|
80%
|
81%
|
84%
|
||||
|
Inrush Current
|
Cold start 20A/115V 40A/230V
|
|
|
|
||||
|
Leakage Current
|
<1mA/240VAC
|
|
|
|
||||
|
Over Load
|
105% ~ 160% rated output power
|
|
|
|
||||
|
|
Protection type: Constant current limiting, recovers automatically after fault condition is removed
|
|
|
|
||||
|
Over Voltage
|
5.75-6.75V
|
13.8-16.2V
|
17.25-20.25V
|
27.6-32.4V
|
||||
|
|
Protection type: Shut down o/p voltage, re-power on to recover
|
|
|
|
||||
|
Working Temp., Humidity
|
-20℃~+70℃; 20%~90% RH non-condensing
|
|
|
|
||||
|
Storage Temp., Humidity
|
-40℃~+85℃; 10%~95%RH
|
|
|
|
||||
|
Temp. Coefficient
|
±0.03%/℃(0~50℃)
|
|
|
|
||||
|
Vibration
|
10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes
|
|
|
|
||||
|
Safety Standard
|
Design refer to UL508,TUV EN60950-1
|
|
|
|
||||
|
EMC Standard
|
Design refer to EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,EN55024,EN61000-6-1，EN61204-3, light industry level,
criteria A |
|
|
|
||||
|
Dimension
|
22.5*90*100mm(W*H*D)
|
|
|
|
||||
|
Weight
|
0.19Kg
|
|
|
|
||||
|
Packing
|
72pcs/carton/14.7kg/0.91CUFT
|
|
|
|
||||
|
Warranty
|
2 years
|
|
|
|
||||
Dimension:22.5*90*100 mm(W*H*D)
Weight :0.19 Kg
one power in one box,a certain number in a cartaon
