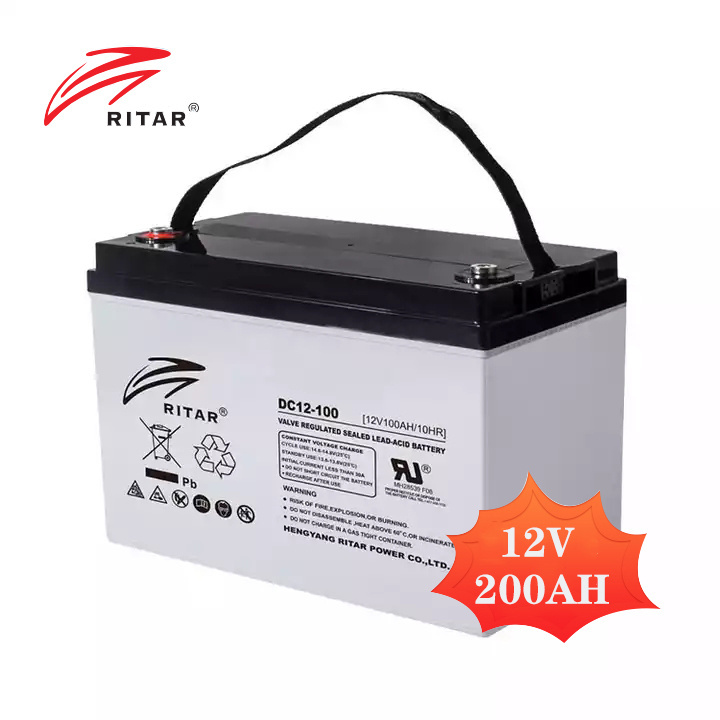

AGM Deep Cycle VRLA Batteries
Voltage class: 2V/6V/12V
Capacity range: 26Ah~3000Ah
Superior deep cycle design
Suitable for solar & wind energy, UPS, telecom systems, electric power systems, control systems, golf cars, etc.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
ritar
-
Place of Origin:
-
Anhui, China
-
Weight:
-
30kg, 170KG
-
Product name:
-
solar battery
-
Battery type:
-
GEL/AGM
-
Capacity:
-
2V/6V/12V 26Ah~3000Ah
-
Cycle life:
-
3000 Times
-
Type:
-
GEL Lead Acid Battery
-
Battery Size:
-
521*238*218mm
-
Warranty:
-
5years
Quick Details
-
Anode Material:
-
Other
-
Application:
-
Solar Energy Storage Systems
-
Brand Name:
-
ritar
-
Model Number:
-
ritar
-
Place of Origin:
-
Anhui, China
-
Weight:
-
30kg, 170KG
-
Product name:
-
solar battery
-
Battery type:
-
GEL/AGM
-
Capacity:
-
2V/6V/12V 26Ah~3000Ah
-
Cycle life:
-
3000 Times
-
Type:
-
GEL Lead Acid Battery
-
Battery Size:
-
521*238*218mm
-
Warranty:
-
5years
Product Description
DC Series
Battery construction
Technical Specifications
|
Model
|
DC12-26~DC12-260
|
DC2-200~DC2-3000
|
FT12-55D~FT12-185D
|
||
|
Cells Per Unit
|
6
|
1
|
6
|
||
|
Voltage Per Unit
|
12V
|
2V
|
12V
|
||
|
Terminal
|
F3(M5) / F13-BP(M5)/T24(M5)/F5(M8) / F12(M8)
|
F10(M8)
|
F9(M8)/F14(M8)
|
||
|
Design Life
|
12 years (floating charge)
|
20 years (floating charge)
|
12 years (floating charge)
|
||
|
Float Charging Voltage
|
13.6 V~13.8 V @ 25℃ Temperature Compensation: -3mV/℃/Cell
|
2.27 V~2.30 V @ 25℃ Temperature Compensation: -3mV/℃/Cell
|
13.6 V~13.8 V @ 25℃ Temperature Compensation: -3mV/℃/Cell
|
||
|
Cycle Use Voltage
|
14.6 V~14.8 V @ 25℃ Temperature Compensation: -4mV/℃/Cell
|
2.43 V~2.47 V @ 25℃ Temperature Compensation: -4mV/℃/Cell
|
14.6 V~14.8 V @ 25℃ Temperature Compensation: -4mV/℃/Cell
|
||
|
Operating Temperature Range
|
Discharge: -20℃~60℃;Charge: 0℃~50℃;Storage: -20℃~60℃
|
|
|
||
|
Normal Operating Temperature Range
|
25℃±5℃
|
|
|
||
|
Self Discharge
|
RITAR Valve Regulated Lead Acid (VRLA) batteries can be stored for up to 6 months at 25℃ and then recharging is recommended.
Monthly Self-discharge ratio is less than 3% at 25℃.Please charged batteries before using. |
|
|
||
|
Container Material
|
A.B.S.
|
|
|
||
Performance Characteristics
