The use of load sensing and dual-pump confluence hydraulic system technology has high operating efficiency and low energy consumption of the whole machine;The forklift-specific electronic control technology jointly developed with the engine manufacturer makes the whole machine power have better performance;The use of a 9-inch large air filter with a safety filter element and an electronic pressure alarm is safer and more reliable on the basis of ensuring the engine intake volume; the use of a split radiator has better heat dissipation effect, reliable thermal balance of the whole machine, and a standard power brake system to improve braking ability, easy and comfortable operation.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Runtx
-
Fork Length:
-
1070MM
-
Fork Width:
-
125MM
-
Overall Dimensions:
-
2685*1210MM
-
Weight (KG):
-
8230 kg
-
Type:
-
Forklift
-
After-sales Service Provided:
-
Overseas third-party support available
-
Feature:
-
Hydraulic Systems, Low Fuel Consumption, High Efficiency, Low Noise
-
Color:
-
Red, Green, or customer demanded
-
Mast tilt angle (front / rear):
-
6°/ 12°
-
Fuel tank capacity:
-
70 L
-
Load center:
-
500 mm
-
Tire:
-
pneumatic or solid
-
Mast:
-
2 Stage, 3 Stage
-
Certification:
-
CQC, CE, SIQ, COC, TUV
Quick Details
-
Min. Lifting Height:
-
3000MM
-
Warranty:
-
2 years
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Runtx
-
Fork Length:
-
1070MM
-
Fork Width:
-
125MM
-
Overall Dimensions:
-
2685*1210MM
-
Weight (KG):
-
8230 kg
-
Type:
-
Forklift
-
After-sales Service Provided:
-
Overseas third-party support available
-
Feature:
-
Hydraulic Systems, Low Fuel Consumption, High Efficiency, Low Noise
-
Color:
-
Red, Green, or customer demanded
-
Mast tilt angle (front / rear):
-
6°/ 12°
-
Fuel tank capacity:
-
70 L
-
Load center:
-
500 mm
-
Tire:
-
pneumatic or solid
-
Mast:
-
2 Stage, 3 Stage
-
Certification:
-
CQC, CE, SIQ, COC, TUV
Products Description

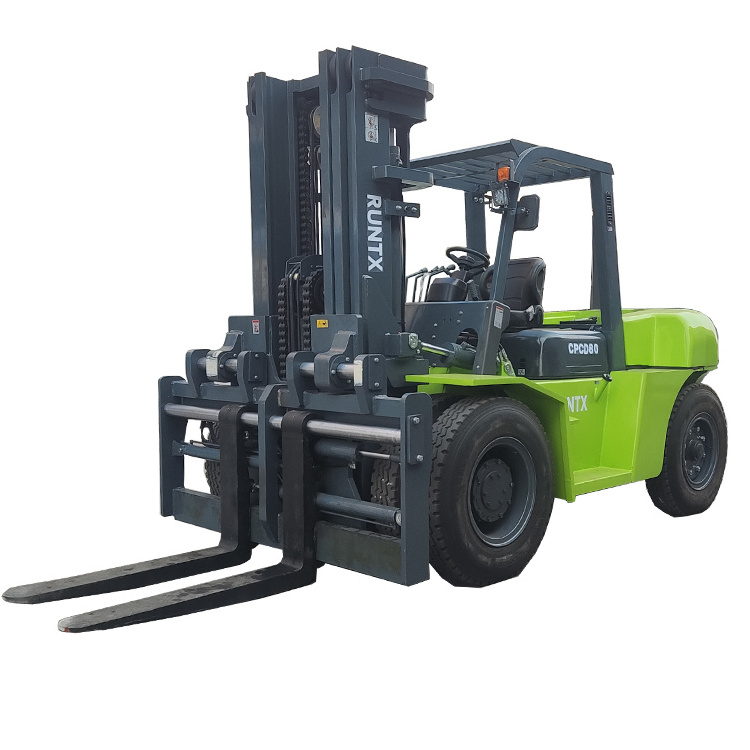

RUNTX brand C series 5-12 ton diesel counterbalanced forklifts are widely used in factories, warehouses, stations, docks, ports, etc. for loading and unloading of packaged goods. After being equipped with other work accessories, they can also be used for loading and unloading of bulk goods and other non-packaged goods.
|
Model
|
|
CPCD60
|
CPCD70
|
CPCD80
|
CPCD100
|
CPCD120
|
|
Power Type
|
|
Diesel
|
Diesel
|
Diesel
|
Diesel
|
Diesel
|
|
Rated Capacity
|
kg
|
6000
|
7000
|
8000
|
10000
|
12000
|
|
Load Centre
|
mm
|
600
|
600
|
600
|
600
|
600
|
|
Lift Height
|
mm
|
3000
|
3000
|
3000
|
3000
|
3000
|
|
Mast Tilt Angle
|
Deg
|
6°/12°
|
6°/12°
|
6°/12°
|
6°/12°
|
6°/12°
|
|
Fork Overhang (Wheel center to fork face)
|
mm
|
590
|
595
|
595
|
739
|
754
|
|
Ground Clearance（Bottom of mast）
|
mm
|
200
|
200
|
200
|
230
|
230
|
|
Overall Dimension
|
mm
|
3440
|
3565
|
3565
|
4280
|
4685
|
|
|
mm
|
2010
|
2010
|
2010
|
2170
|
2200
|
|
|
mm
|
2500
|
2500
|
2500
|
2830
|
3080
|
|
|
mm
|
4415
|
4415
|
4415
|
4335
|
4500
|
|
|
mm
|
2430
|
2430
|
2430
|
2510
|
2540
|
|
Turning Radius (outside)
|
mm
|
3250
|
3350
|
3350
|
3970
|
4700
|
|
Speed
|
km/h
|
30
|
30
|
28
|
30
|
30
|
|
|
mm/s
|
500
|
460
|
430
|
270
|
270
|
|
Max.Gradeability
|
%
|
20
|
20
|
20
|
20
|
20
|
|
Self weight
|
kg
|
8750
|
9750
|
10350
|
13100
|
14500
|
|
Wheelbase
|
mm
|
2250
|
2250
|
2250
|
2800
|
3200
|
Details
Runtx C Type Overall Performance
Attachmen
Engine Option
Packaging and Shipping
Production Workshop
