Quick Details
-
Brand Name:
-
ZHG Power
-
Model Number:
-
ZHG12170RB
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
28KG
-
The charging ratio:
-
98%
-
The discharge rate:
-
95%
-
Product name:
-

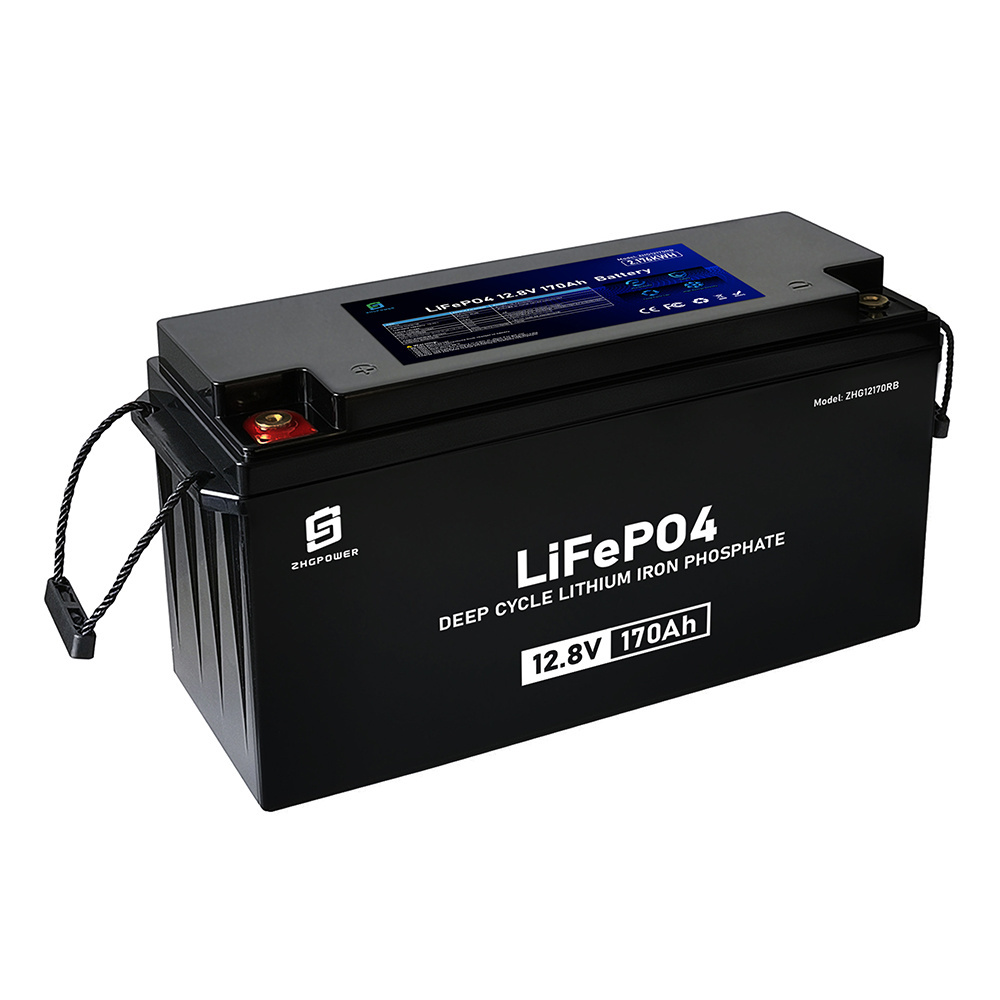

12.8V 170Ah Lithium Battery Lifepo4 Battery
-
Output voltage:
-
110/120/220/230V
-
Battery Capacity::
-
170Ah
-
Cycle Life:
-
≥6000 times
-
Warranty:
-
5year
-
Rated Capacity:
-
5KWH/10KWH/15KWH/20KWH/25KWH/30KWH/35KWH/40KWH
-
Solar Panel Type:
-
Polycrystalline Silicon
-
BMS:
-
Build-in
-
Battery type:
-
LiFePO4 Battery Pack
-
Certification:
-
CE/RoHS/UN38.3/MSDS
Quick Details
-
Storage Type:
-
Solar Energy Storage Systems
-
Anode Material:
-
LFP
-
Application:
-
Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, electric vehicles, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric Forklifts
-
Brand Name:
-
ZHG Power
-
Model Number:
-
ZHG12170RB
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
28KG
-
The charging ratio:
-
98%
-
The discharge rate:
-
95%
-
Product name:
-
12.8V 170Ah Lithium Battery Lifepo4 Battery
-
Output voltage:
-
110/120/220/230V
-
Battery Capacity::
-
170Ah
-
Cycle Life:
-
≥6000 times
-
Warranty:
-
5year
-
Rated Capacity:
-
5KWH/10KWH/15KWH/20KWH/25KWH/30KWH/35KWH/40KWH
-
Solar Panel Type:
-
Polycrystalline Silicon
-
BMS:
-
Build-in
-
Battery type:
-
LiFePO4 Battery Pack
-
Certification:
-
CE/RoHS/UN38.3/MSDS
Product Description
Customized 12V Lifepo4 Solar Camping Car Battery RV Camping Car Motor Home Caravan Battery
Product Main Features
3.External weak current switch reduces product power consumption and improves the safety of transportation and storage.
4.With BT/RS485/CAN communication function, it can easily communicate with the equipment with communication.
5.External wireless module can be connected for remote data monitoring and corresponding control
6. lt has multiple protection functions to protect the safety of power supply inan all-round way.
7.The output is stable and can be connected to different loads with in the voltage rang.
8.Support up to 4S4P .
1.The battery adopts high-performance lithium iron phosphate battery with high safety
performance and long service life.
2. M16S series energy storage battery adopts intellizent air cooling and heat dissipation to improve the reliability of the product.
3.External weak current switch reduces product power consumption and improves the safety of transportation and storage.
4.With BT/RS485/CAN communication function, it can easily communicate with the equipment with communication.
5.External wireless module can be connected for remote data monitoring and corresponding control
6. lt has multiple protection functions to protect the safety of power supply inan all-round way.
7.The output is stable and can be connected to different loads with in the voltage rang.
8.Support up to 4S4P .
|
Model
|
100AH
|
170AH
|
|
|
Nominal Voltage
|
12.8V
|
12.8V
|
|
|
Nominal Capacity
|
100AH
|
170AH
|
|
|
Effciency
|
≥96%
|
≥96%
|
|
|
Impedance（Max，at1000Hz）
|
≤40mΩ
|
≤40mΩ
|
|
|
Cell Type
|
LiFePO4
|
LiFePO4
|
|
|
Charge Voltage
|
14.6V
|
14.6V
|
|
|
Standard Charging Current
|
20A
|
40A
|
|
|
Max.Continuous Charging Current
|
100A
|
100A
|
|
|
Standard Discharge Current
|
20A
|
40A
|
|
|
Continuous Discharge Current
|
100A
|
100A
|
|
|
Peak Discharge Current
|
200A(3S)
|
|
|
|
Discharge Cut-off Voltage
|
42V
|
|
|
|
Charge Temperature Range
|
0~60°C
|
|
|
|
Discharge Temperature Range
|
-10°C~65°C
|
|
|
|
Storage Temperature Range
|
-5~40°C
|
|
|
|
Storaqe Humidity
|
65±20％HR
|
|
|
|
Size(LxWxH)
|
330×172×215mm
|
L406*W173*H218
|
|
|
|
|
|
|
|
Shell Material
|
SPCC
|
|
|
|
Net Weight
|
12.5kg
|
28kg
|
|
|
Gross Weight
|
14.5kg
|
30kg
|
|
|
Package Method
|
1pcs per carton
|
|
|
|
Cycle Life
|
≥6000 times
|
|
|
|
Self Discharge
|
2% per month
|
|
|
|
SOC Indication
|
LED Light& LCD Screen
|
|
|
|
Communication Protocol
|
RS485/CAN/BT
|
|
|
.
