Quick Details
-
Bottle Volume(ml):
-
1500 ml
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
tepai
-
Year:
-
2024
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
3.4*1.9*2.05
-
Hollow part volume:
-
1.5L
-
Clamping Force (kN):
-
40
-
Power (kW):
-
25kw
-
Weight (KG):
-
2800 KG
-
Number of cavities:
-
3
-
Mould plate dimension(LxH)(mm):
-
600x360
-
Mould thickness(mm):
-
188
-
Mould opening stroke(mm):
-
110
-
Heating power(kw):
-
22
-
Operation Pressure(Mpa):
-
0.8-1.0
-
Action Air Consuming(m³/min):
-
≥1.6
-
Blowing Pressure(Mpa):
-
2.6-4.0
-
Blowing Air Consuming(m³/min):
-
≥4.8
-
Main body weight(kg):
-
2600
Quick Details
-
Neck Diameter(mm):
-
105 mm
-
Max.Bottle Diameter(mm):
-
105 mm
-
Max.Bottle Height(mm):
-
360 mm
-
Bottle Volume(ml):
-
1500 ml
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
tepai
-
Year:
-
2024
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
3.4*1.9*2.05
-
Hollow part volume:
-
1.5L
-
Clamping Force (kN):
-
40
-
Power (kW):
-
25kw
-
Weight (KG):
-
2800 KG
-
Number of cavities:
-
3
-
Mould plate dimension(LxH)(mm):
-
600x360
-
Mould thickness(mm):
-
188
-
Mould opening stroke(mm):
-
110
-
Heating power(kw):
-
22
-
Operation Pressure(Mpa):
-
0.8-1.0
-
Action Air Consuming(m³/min):
-
≥1.6
-
Blowing Pressure(Mpa):
-
2.6-4.0
-
Blowing Air Consuming(m³/min):
-
≥4.8
-
Main body weight(kg):
-
2600
Products Description

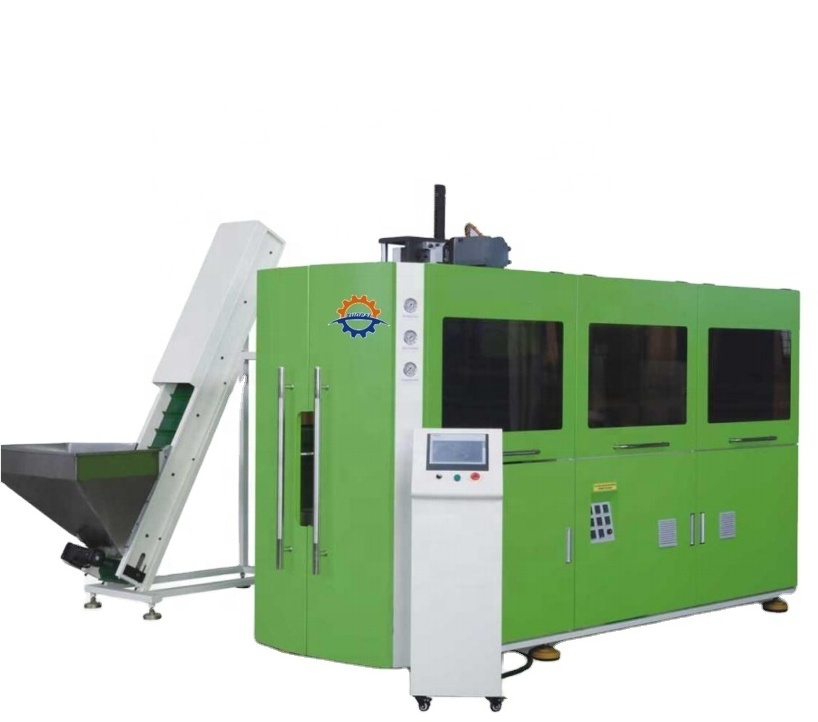

Tepai PET series Servo Motor Two-step Multi functional Full-automatic Blow
Moulding Machine
Machine feature:
1, Blowing0.5-1.5 PET common bottle.
2. Durable PLC micro computer controlling system controls time can be accurate to0.01 seconds.
3.Special recycling installation for high pressure air reduces the energy consumption.
4.The far-infrared heater uses a way of conversion self-rotating heating and the rail revolution makes the heating even, quick and reliable.
5.Every heating lamp has independent temperate re control device, togetideal preform heating effect.
6. Particular pre-heater design makes prefrom close while heating. Change space, shorten heating tunnel and reduce energy consumption according to the bottle size while blowing.
7.simpie installation and starting.
Product Paramenters
Main Parameter
|
ITEM
|
|
CX5B-3S
|
Tepai-4S
|
Tepai-65
|
|
|
瓶型规格
PRODUCT |
理论产量
theoretics output(Pcs/h) |
4500
|
5500
|
6500
|
|
|
|
容积Volume(L)
最大高度Max.height(mm) |
1.5
|
1.5
|
1.5
|
|
|
|
|
360
|
360
|
360
|
|
|
|
最大直径Max.diameter(mm)
|
105
|
105
|
105
|
|
|
|
模穴数Number of cavities
|
3
|
4
|
6
|
|
|
成型组规格MOULD
|
模板尺寸Mould plate dimension(LxH)(mm)
|
430x360
|
600x360
|
840x360
|
|
|
|
模厚Mould thickness(mm)
|
188
|
188
|
198
|
|
|
|
开模行程Mould opening stroke(mm)
|
110
|
110
|
110
|
|
|
电力规格
ELECTRICAL |
电源Power
|
220-380V/50-60HZ
|
220-380V/50-60HZ
|
220-380V/50-60HZ
|
|
|
|
总功率Total power(KW)
|
18
|
25
|
35
|
|
|
|
加热功率Heating power(kW)
|
15
|
22
|
32
|
|
|
|
动作压力Operation Pressure(Mpa)
|
0.8-1.0
|
0.8-1.0
|
0.8-1.0
|
|
|
空压机规格
AIR SYSTEM |
动作耗气量Action Air Consuming(m3/min)
|
≥1.6
|
≥1.6
|
≥1.6
|
|
|
|
吹气压力Blowing Pressure(Mpa)
|
2.6-4.0
|
2.6-4.0
|
2.6-4.0
|
|
|
|
吹气耗气：量Blowing Air Consuming(m3/min)
|
≥3.2
|
≥4.8
|
≥4.8
|
|
|
机器规格
MACHINE |
吹瓶机主机尺寸Main body dimension(LxWxH)(M)
|
2.7x1.45x2.05
|
3.4x1.9x2.05
|
3.9x1.9x2.0
|
|
|
|
吹瓶机主机重量Main body weight(KG)
|
2300
|
2600
|
3200
|
|
|
|
瓶坯输送机尺寸Preform Auto loader(LxWxH)(M)
|
1.9x1.9x22
|
1.9x1.9x22
|
2.1x19x2.4
|
|
|
|
瓶坯输送机重量Preform Auto loader weight(KG)
|
200
|
200
|
300
|
|
Machine Details
Packaging&shipping
Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India,
Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia,
Colombia, ,
Venezuela, Peru....
We have our own service team in
Saudi Arabia, Colombia, Panama, South Africa ...
