Quick Details
-
Hose Inner Diameter:
-
57 mm
-
Air Consumption:
-
22-25m³ /min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Sinogrout
-
Voltage:
-
220V/380V/400V/415V/440V/660V/50Hz
-
Power:
-
22KW
-
Dimension(L*W*H):
-
3200 * 1350 * 1300mm
-
Weight:
-
1500 kg
-
Product name:
-
Wet Shotcrete machine
-
Application:
-
Construction,slope,stabilization,basement,walls
-
After-sales Service Provided:
-
Online Support
-
Keywords:
-
Shotcrete Machine
-
Type:
-
Shotcrete Equipment
-
Operating Air Pressure:
-
0.4-0.6Mpa
-
Drive mode:
-
Electric Motor
-
voltage:
-
220V/380V/400V/415V/440V/660V/50Hz
-
Concrete slump:
-
12-18cm
-
Accelerator pump:
-
0-1000L/h (Continuously VariableTransmission)
Quick Details
-
Marketing Type:
-
New Product 2022
-
Max. Conveying Distance:
-
Horizontal: 100m, Vertical: 60m
-
Max Aggregate Size:
-
15mm
-
Hose Inner Diameter:
-
57 mm
-
Air Consumption:
-
22-25m³ /min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Sinogrout
-
Voltage:
-
220V/380V/400V/415V/440V/660V/50Hz
-
Power:
-
22KW
-
Dimension(L*W*H):
-
3200 * 1350 * 1300mm
-
Weight:
-
1500 kg
-
Product name:
-
Wet Shotcrete machine
-
Application:
-
Construction,slope,stabilization,basement,walls
-
After-sales Service Provided:
-
Online Support
-
Keywords:
-
Shotcrete Machine
-
Type:
-
Shotcrete Equipment
-
Operating Air Pressure:
-
0.4-0.6Mpa
-
Drive mode:
-
Electric Motor
-
voltage:
-
220V/380V/400V/415V/440V/660V/50Hz
-
Concrete slump:
-
12-18cm
-
Accelerator pump:
-
0-1000L/h (Continuously VariableTransmission)
Products Description
DYP-90 series hydraulic wet shotcrete machine is a pumping type concrete wet shotcrete machine,which adopts hydraulic pumping type, with high system reliability and stable delivery capacity.The hydraulic wet spraying machine can be used for grouting, filling, grouting, pumping and other construction.Continuous adjustment of injection quantity and the main oil pump adopts variable piston pump, and the injection speed can be adjusted freely .The adding amount of accelerator is continuously adjustable, which can be adjusted steplessly according to the spraying amount.DYP-90 hydraulic wet spraying machine is widely used in construction of highway, railway, tunnel and hydropower station etc.

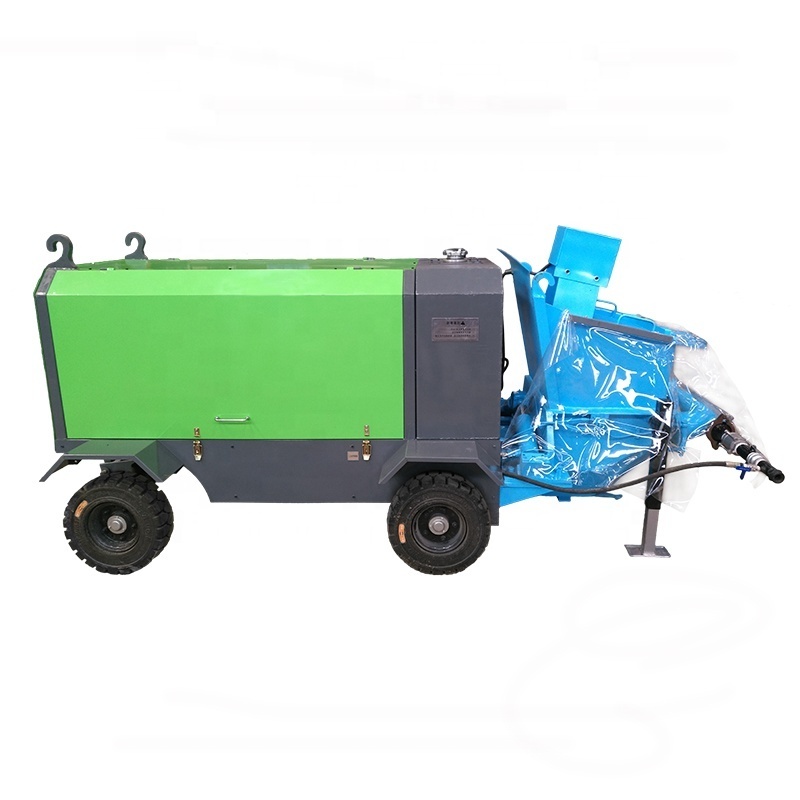

DYP-90A wet shotcrete machine with tire
DYP-90 wet shotcrete machine with mixing hopper
Technical Parameters
|
Model
|
DYP-90A
|
DYP-90
|
|
Production capacity
|
3-9m³ /h (Continuously VariableTransmission)
|
3-9m³ /h(Continuously VariableTransmission)
|
|
Main motor power
|
22KW
|
22KW
|
|
Aggregate diameter
|
≤ 15mm
|
≤ 15mm
|
|
System max.pressure
|
16Mpa
|
16Mpa
|
|
Working air pressure
|
0.4-0.6Mpa
|
0.4-0.6Mpa
|
|
Concrete slump
|
12-18cm
|
12-18cm
|
|
Max.spraying distance
|
horizontal 100m, vertical 60m
|
horizontal 100m, vertical 60m
|
|
Cylinder
|
140mm
|
140mm
|
|
Cylinder stroke
|
580mm
|
580mm
|
|
Electric control system
|
Wireless remote control
|
LCD display, plug-in appliances
|
|
Lubrication system
|
Automatically
|
Automatically
|
|
Accelerator pump
|
0-1000L/h (Continuously VariableTransmission)
|
0-1000L/h (Continuously VariableTransmission)
|
|
Mixing system
|
None
|
0.5m3 mixing tank
|
|
Tire
|
Four-wheel solid tire
|
None
|
|
Total Weight
|
1500Kg
|
2300KG
|
|
Dimension
|
3200 * 1350 * 1300mm
|
3450 * 1550 * 1650mm
|
90A hopper without mixing and 90 hopper with mixing
Performance characteristics
1. Large transmission capacity and high comprehensive efficiency.
2. Long spraying distance up to 100m horizontally and 60m vertically.
3. One machine can be used for multiple purposes which can be used not only as a wet spraying machine, but also as a concrete delivery pump or mortar pump.
4. Key components from well-known domestic manufacturers are used to ensure high reliability of equipment.
5. The adding amount of accelerator is continuously adjustable and it can be adjusted steplessly according to the spraying amount.
6. Equipped with automatic lubrication system,the service life of wearing parts is greatly extended.
7. Four wheel solid tire, easy to move, and easy to operate and maintain.
8. The hydraulic oil is cooled by air which is simple and environmentally friendly.
9. Low resilience. With wet spraying technology, the resilience rate can even be reduced to less than 10%, and effectively
saving costs.
10. The concentration of dust beside the machine and outside the nozzle is reduced, so that it can eliminate the harm to workers' health.
2. Long spraying distance up to 100m horizontally and 60m vertically.
3. One machine can be used for multiple purposes which can be used not only as a wet spraying machine, but also as a concrete delivery pump or mortar pump.
4. Key components from well-known domestic manufacturers are used to ensure high reliability of equipment.
5. The adding amount of accelerator is continuously adjustable and it can be adjusted steplessly according to the spraying amount.
6. Equipped with automatic lubrication system,the service life of wearing parts is greatly extended.
7. Four wheel solid tire, easy to move, and easy to operate and maintain.
8. The hydraulic oil is cooled by air which is simple and environmentally friendly.
9. Low resilience. With wet spraying technology, the resilience rate can even be reduced to less than 10%, and effectively
saving costs.
10. The concentration of dust beside the machine and outside the nozzle is reduced, so that it can eliminate the harm to workers' health.
