Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FUERTE
-
Model Number:
-
FGW10-15/630-1
-
Standard:
-
IEC 62271-102
-
Insulator Type:
-
Resin
-
Rated current Max.:
-
600A
-
Temperature-rise:
-
Less than 65K
-
Impulse withstand voltage:
-
95kV
-
Power-frequency withstand voltage:
-
42kV
-
Creepage distance:
-
320mm
Quick Details
-
Number of Pole:
-
1
-
Rated Current:
-
600A
-
Rated Voltage:
-
15, 15KV
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FUERTE
-
Model Number:
-
FGW10-15/630-1
-
Standard:
-
IEC 62271-102
-
Insulator Type:
-
Resin
-
Rated current Max.:
-
600A
-
Temperature-rise:
-
Less than 65K
-
Impulse withstand voltage:
-
95kV
-
Power-frequency withstand voltage:
-
42kV
-
Creepage distance:
-
320mm

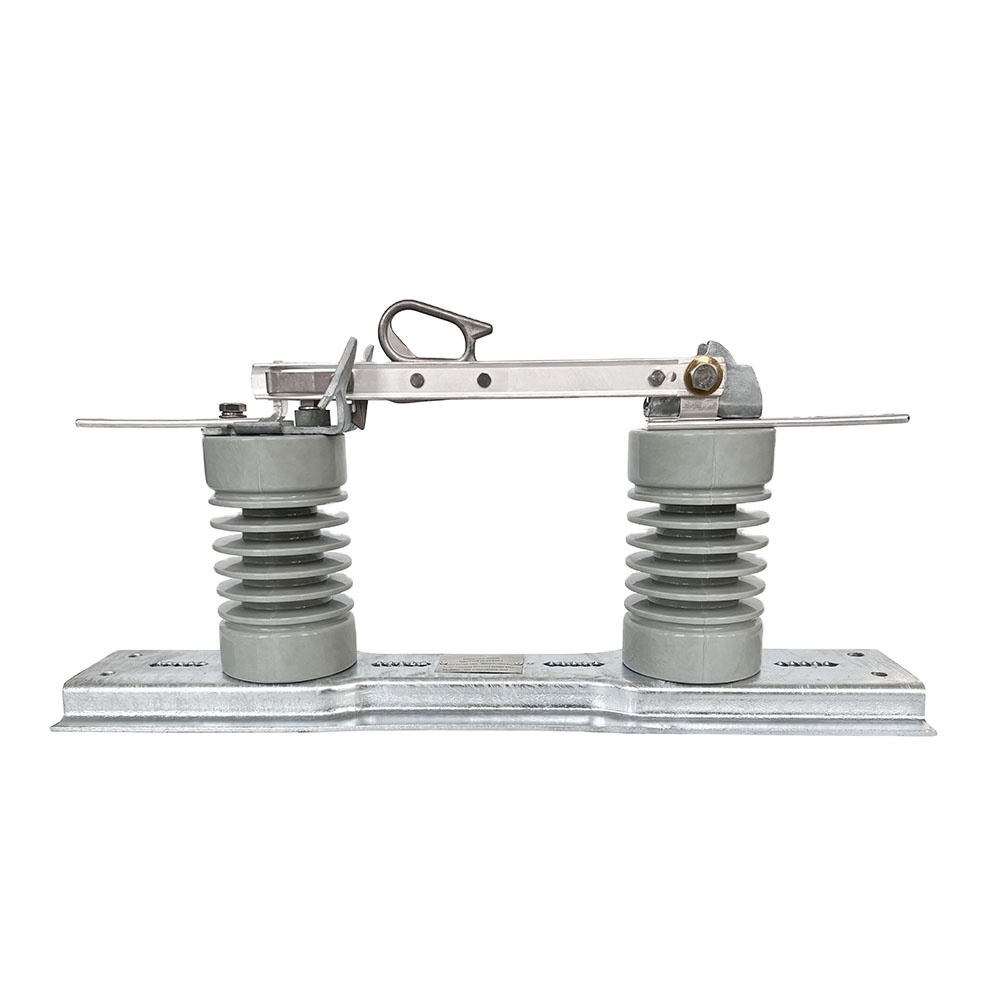

Load break resin material disconnector switch 15kV
Main Material:Red copper with silver coating,copper with silver coating,wet-process porcelain insulator,
Stainless steel,galvanized steel.
Standard:IEC62271-102
Technical Specifications:
| Model | Rated Voltage | Rated Current | Impulse Withstand Voltage | Power-frequency Withstand Voltage | Peak Withstand Current |
| FGW10-15/630-1 | 15KV |
600A |
95KV | 42KV | 20KA |
