Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Tianyi
-
Model Number:
-
Wall Panel
-
sandwich eps cement block machine:
-
Light weight precast concrete wall panels automatic making machine
-
Color:
-
White
-
Material:
-
Cement
-
Thickness:
-
50-200mm
Quick Details
-
Project Solution Capability:
-
graphic design, total solution for projects
-
Application:
-
Apartment
-
Design Style:
-
Contemporary
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Tianyi
-
Model Number:
-
Wall Panel
-
sandwich eps cement block machine:
-
Light weight precast concrete wall panels automatic making machine
-
Color:
-
White
-
Material:
-
Cement
-
Thickness:
-
50-200mm
Hot sale precast sandwich eps cement block automatic machine/ Light weight precast concrete wall panels automatic making machine
Machinery making external wall panel / EPS cement wall panel machinery:
main system:molding machine/mixing system/pumping system/demoulding machine for wall panel drawing out/turnover system
The specification of the molding
|
Overall dimention of the moulding(mm) |
3030x2500x1200 |
|
|
Total power |
23KW |
|
|
Power of heating system(KW) |
20 |
|
|
Power of hydraulic system(KW) |
3 |
|
|
Hydraulic working pressure(Mpa) |
8 |
|
|
Maximum Hydraulic working pressure(Mpa) |
16 |
|
|
Capacity of hydraulic tank (L) |
70 |
|
|
Wall panel size/Qty |
50mm |
10pieces |
|
100mm |
10pieces |
|
|
150mm |
7pieces |
|

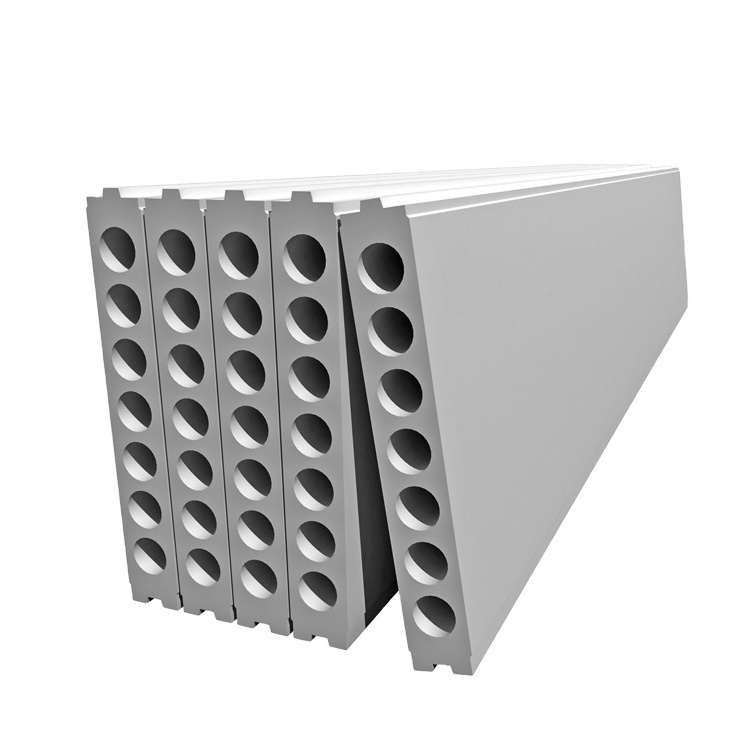

The specification of the wall panel:
2440/2800/3000mm*600mm*75/90/120/150/180mm
Used as internal wall,external wall,roof board,enclosure wall,
And we could produce at your request
The features of the wall panel made by Tianyi machinery:
1.heat insulation
2.sound insulation
3.water insulation
4.moisture insulation
5.A grade fire protection
6.the panels could be reused
7.high strength , lightweight ,shock resistance ;
8.the coal ash and industrial solid wastes as raw material,energy saving , environmentally friendly ;
9.Installation is fast and simple,shortening the construction period,saving labor lost and comprhensive cost
10.increasing the floor area of the building ;
1. We free design for you the formula according to the raw material of your local area ,
2. We free design for you the workshop according to the area ,
3. We will send the engineers to insstall the production line for you ,train and help you how to produce high quality wall panel ;
packing and shipping according to your request
