- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
Depends on capacity
-
Size:
-
Customized
-
Power:
-
1.1KW
-
Weight (KG):
-
400 kg
-
Product name:
-
Water Treatment System Processing Reverse Osmosis Plant
-
Function:
-
RO Water Purification
-
Certification:
-
ISO9001, CE
-
Application:
-
Filtration
-
Color:
-
White/Green/Blue or Customized Color
-
Membrane material:
-
PVDF+PE
-
Capacity:
-
250LPH~30000LPH
-
Technology:
-
RO Membrane Filtration
-
MOQ:
-
1 Set
-
RO membrane:
-
DOW Membrane USA Original Vontron Or ROBEST
Quick Details
-
Place of Origin:
-
Shandong China
-
Brand Name:
-
ROBEST
-
Material:
-
Wooden case package with plastic film
-
Weight:
-
Depends on capacity
-
Size:
-
Customized
-
Power:
-
1.1KW
-
Weight (KG):
-
400 kg
-
Product name:
-
Water Treatment System Processing Reverse Osmosis Plant
-
Function:
-
RO Water Purification
-
Certification:
-
ISO9001, CE
-
Application:
-
Filtration
-
Color:
-
White/Green/Blue or Customized Color
-
Membrane material:
-
PVDF+PE
-
Capacity:
-
250LPH~30000LPH
-
Technology:
-
RO Membrane Filtration
-
MOQ:
-
1 Set
-
RO membrane:
-
DOW Membrane USA Original Vontron Or ROBEST
1000 LPH Ro Water System Industrial RO System Reverse Osmosis Equipment RO Water Treatment System
Manufacturer
Products Description

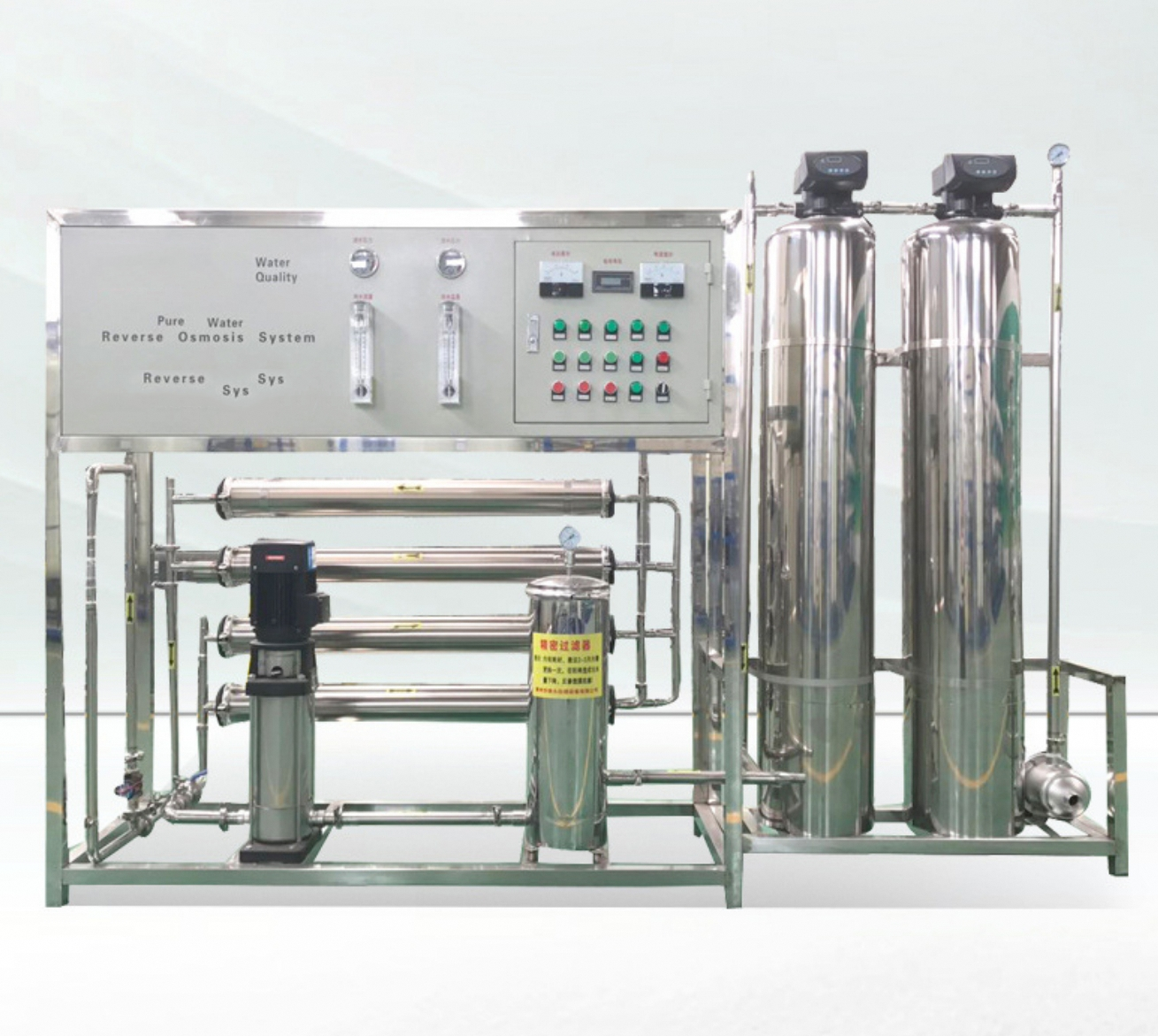

Reverse Osmosis System
Reverse Osmosis(RO) is a process that uses semi-permeable spiral wound membranes to separate and remove dissolved solids,organic,pyrogens,submicron colloidal matter,color,nitrate and bacteria from water. Feed water is delivered under pressure through the semi-permeable membrane,where water permeates the minute pores of the membrane and is delivered as purified water called permeate water.Impurities in the water are concentrated in the reject stream and flushed to the drain is called concentrate water.
RO Membrane is mainly used in different small systems, such as domestic water Hospital and laboratory cleaning and other cleaning water equipment. Achieve the same high flux as conventional low pass and salt.
reverse osmosis water filter system.
Details Images
|
CE Industrial Reverse Osmosis Commercial Water filter Purification RO Water System Plant For Water Treatment
|
|
|
|
|
||||
|
Model
|
Capacity(LPH)
|
Membrane Quantity
|
Size(L*W*H)(mm)
|
Weight(Kg)
|
||||
|
ROBEST-300
|
1500GPD(300LPH)
|
4040*1
|
1550*900*1820
|
150
|
||||
|
ROBEST-500
|
3000GPD (500LPH)
|
4040*2
|
1550*900*1820
|
250
|
||||
|
ROBEST-1000
|
6000GPD(1000LPH)
|
4040*4
|
1980*900*1940
|
450
|
||||
|
ROBEST-2000
|
2000LPH
|
4040*7
|
4800*700*2050
|
700
|
||||
|
ROBEST-3000
|
3000LPH
|
4040*10
|
6000*800*2200
|
800
|
||||
|
ROBEST-5000
|
5000LPH
|
8040*4
|
7000*900*2400
|
1000
|
||||
|
ROBEST-8000
|
8000LPH
|
8040*8
|
8000*1000*2700
|
1600
|
||||
|
ROBEST-10000
|
10000LPH
|
8040*9
|
8200*1600*3000
|
2200
|
||||
|
ROBEST-15000
|
15000LPH
|
8040*15
|
8600*1700*3100
|
2800
|
||||
|
ROBEST-20000
|
20000LPH
|
8040*20
|
10000*1700*3200
|
3500
|
||||
|
ROBEST-25000
|
25000LPH
|
8040*25
|
5000*1800*3300
|
4200
|
||||
|
ROBEST30000
|
30000LPH
|
8040*30
|
7000*1900*3500
|
5000
|
||||
|
ROBEST50000
|
50000LPH
|
8040*50
|
7000*2300*3800
|
8500
|
||||
Single-stage/
Two-stage
reverse osmosis process fow chart：
Introduction of Industrial Reverse Osmosis Commercial Water filter Purification RO Water System Plant For Water Treatment
ROBEST offers Fully Packaged Reverse Osmosis Systems designed to fit the end-user application, those Reverse Osmosis Systems include feed pumps, pre-treatment necessary as per end-user water quality analysis reports, RO Process, and finally all post-treatment including post-filtration and Ultra Violet to guarantee best water quality at the point of use. The series ranges from 1,500 GPD to 10,000 GPD.
Industrial Reverse Osmosis System
The material and brand of accessories can be specified by customers.
Benefits of CE Industrial Reverse Osmosis Commercial Water filter Purification RO Water System Plant For Water Treatment
Robest Packaged Reverse Osmosis System Water Treatment Plants use proven, reliable components and are mounted on a sturdy powder-coated or stainless stell SUS304/316 metal frame. There are numerous design details learned from years of experience that are incorporated in our water filtration systems.
Our process and fluid design ensures an optimum membrane life and minimizes the membrane fouling.
* Over 30 years of experience in reflected in our quality
* Manufactured in the China in our ISO 9001:2015 Certified Facilities
* Conservatively engineered for reliable, long term performance
* Factory tested to ensure trouble-free operation
* Heavy duty powder coated or stainless steel 304/316 frame
* Stainless steel high pressure components, stainless steel pump
* Microprocessor controlled operation
|
Advantages of Industrial Reverse Osmosis Commercial Water filter Purification RO Water System Plant For Water Treatment
|
|
|
|
|||
|
|
|
|
|
|||
|
1
|
* 5 Micron 20” Sediment Filter and Housing
|
8
|
* Permeate and Concentrate Flowmeters
|
|||
|
2
|
* Thin Film Spiral Wound Elements
|
9
|
* Concentrate Recycle Flowmeter
|
|||
|
3
|
* Stainless Steel Pressure Vessels
|
10
|
* TDS Monitor, Digital, Panel Mounted
|
|||
|
4
|
* Low Pressure Switch
|
11
|
* Powder Coated Skid
|
|||
|
5
|
* Automatic Feed Water Shut-Off
|
12
|
*Temperature Monitor
|
|||
|
6
|
* High Pressure Pump
|
13
|
* Flow Control and Back-Pressure Regulator
|
|||
|
7
|
* Liquid Filled Pressure Gauges (3) For Filter In/Out and System Pressure
|
14
|
* Auto System Operation with Level Controls
|
|||
|
Home Use Pure Drinking Water Making Industrial Treatment RO System Filter Purification Plant Machine 1000L / H Reverse Osmosis *Concentrate Recycle Valve
|
|
|
|
|||
Optional Equipment of Industrial Reverse Osmosis System Commercial Water filter Purification RO Water System Plant For Water Treatment
* Automatic Operating Programmable logic controller: UL/CE Approved
* Smart Relay
* Delayed start-up of high-pressure pump
* Inlet Solenoid Valve
* Low & High Feed Pressure Switch Controls
* Supply & Delivery Pumps Controls
* R/P Storage Tank Full Pump on/off
* Silica quartz Pre-Filter w/auto-backwash valve
Application & Usage
Application of Industrial Reverse Osmosis Commercial Water filter Purification RO Water System Plant For Water Treatment
RO system is widely used in water treatment, purification for tap water, well water, underground water, borehole salty water, brackish water and seawater, pure water and ultra-pure water production. Application area such as, food processing, bottled drinking water, home use drinking water, power stations, electronic industries, cosmetics production, pharmaceuticals manufactories, and medical treatment(such as hemodialysis). It is a key equipment for pure water plant and ultrapure water
equipment.
Feature and advantages of ROBEST Reverse Osmosis/RO system:
1.System can produce water continuously and high degree automation.
2.No need chemical to regenerate, easy operation and maintenance.
2.No need chemical to regenerate, easy operation and maintenance.
3.Core components of ro system are imported USA DOW membranes.
4.Automatic switch on when low water level, and switch off when high water level.
4.Automatic switch on when low water level, and switch off when high water level.
5.System flushes RO membranes automatically, reducing membranes polluted speed.
6.Water shortage protection for multi-stage pump.
7.Product water conductivity meter can monitor water quality online continuously.
8.Low operation cost and long life span.
Successful case：
