Small Trommel screen for sale Soil Screener Top Soil Screener

Small Trommel screen for sale Soil Screener Top Soil Screener

FOB Reference Price: Get Latest Price

≥1 Sets

US $3000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Dazhen

Voltage:: 220v/380v/415v

Dimension(L*W*H):: standard

Weight:: 2000 KG

Material:: Carbon Steel

Cleaning system:: brushes

mobile type:: available

screen hole sizes:: as specified

Quick Details

Type:: trommel

Marketing Type:: trommel screen screener

Place of Origin:: Henan, China

Brand Name:: Dazhen

Voltage:: 220v/380v/415v

Dimension(L*W*H):: standard

Weight:: 2000 KG

Material:: Carbon Steel

Cleaning system:: brushes

mobile type:: available

screen hole sizes:: as specified

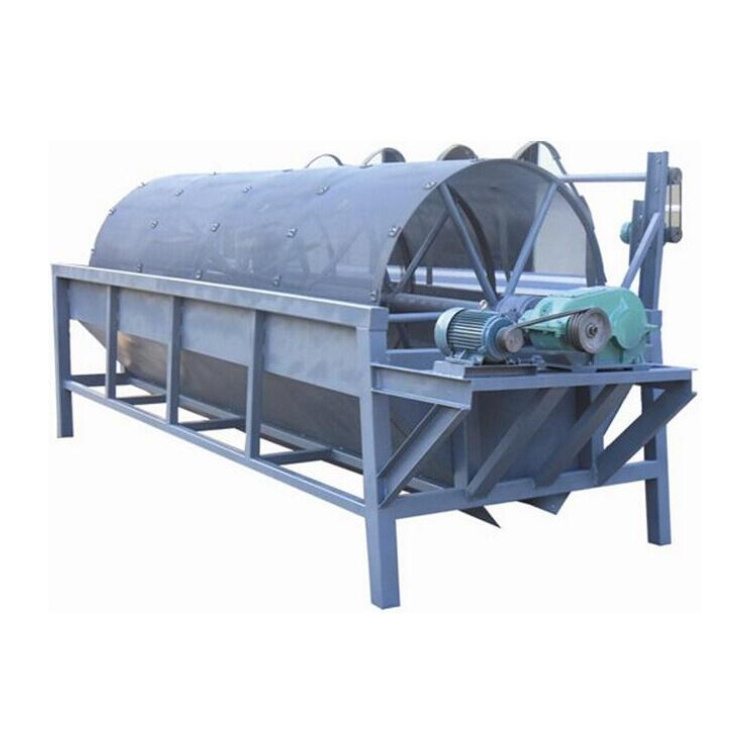

Small Trommel screen for sale Soil Screener Top Soil Screener

Product Description

Dazhen GTS series trommel screen, also known as drum screen and drum sieve, used to process topsoil, gravel, stone, concrete, dirt, sand, compost, mulch and other bulk materials.

Machine Structure

T echnical Parameters

Model	Cylinder size(m)	Angle	Revolving speed(r/min)	Mesh(mm)	Max. Feed size(mm)	Capacity(m3/h)		Power (Kw)
Model	Cylinder size(m)	Angle	Revolving speed(r/min)	Mesh(mm)	Max. Feed size(mm)	Mesh(2mm)	Mesh(20mm)	Power (Kw)
GTS830	Φ0.8X3	6°	32	2-20	Mesh sizeX2.5	8	50	3
GTS1030	Φ1X3	6°	25	2-20	Mesh sizeX2.5	10	60	4
GTS1040	Φ1X4	6°	25	2-20	Mesh sizeX2.5	11	80	4
GTS1230	Φ1.2X3	6°	20	2-20	Mesh sizeX2.5	12	100	5.5
GTS1530	Φ1.5X3	6°	17	2-20	Mesh sizeX2.5	16	120	5.5

Main Features

(1) Smoothly operation and low noise.
(2) High powerful Screening ability, screened and washed widely and remarkable effects.
(3) The screening tube can be closed, easy to collect dust airtight.
(4) The high reliability and one-time investment is less.
