Quick Details
-
Power:
-
9kw
-
Dimension(L*W*H):
-
2600*800*1200mm
-
Weight (KG):
-
900
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
stainless steel rebar metal tube pipe straightening polishing machine
-
Usage:
-
Steel Bar Straightening Cutting
-
Application:
-
Building Construction
-
Function:
-
Straigthen
-
Material:
-
Carbon Steel
-
Color:
-
Customer Demand
-
power:
-
9kw
-
Other name:
-
Metal tube straightener machine
-
Weight:
-
900kg
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SILK ROAD
-
Voltage:
-
380V
-
Power:
-
9kw
-
Dimension(L*W*H):
-
2600*800*1200mm
-
Weight (KG):
-
900
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
stainless steel rebar metal tube pipe straightening polishing machine
-
Usage:
-
Steel Bar Straightening Cutting
-
Application:
-
Building Construction
-
Function:
-
Straigthen
-
Material:
-
Carbon Steel
-
Color:
-
Customer Demand
-
power:
-
9kw
-
Other name:
-
Metal tube straightener machine
-
Weight:
-
900kg
Contact:Ms sunny
whatsapp/mobile:008618737317087
skype:sunnymachinerysd
wechat:18737317087
QQ:3492521902

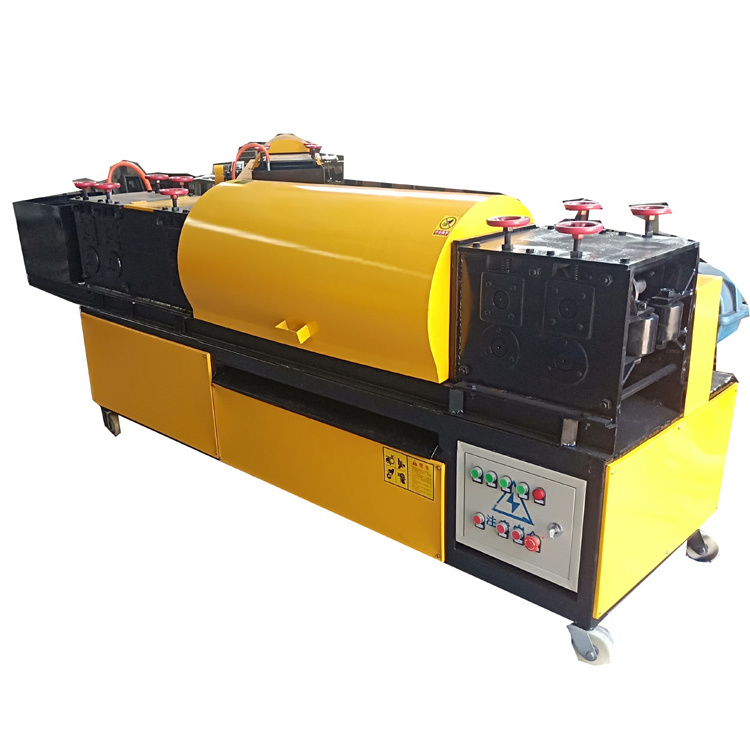

stainless steel rebar metal tube pipe straightening polishing machine
Introduction for steel straightening machines:
It mainly use for straightening repair the bending scaffolding in building construction . It also can clean up grime and rust on steel surface and painting it..
Straightening : the steel pipe after straightening will not have scratch . Good straightness, longitudinal diameter not twist, strength loss is small . it have many models differ from steel pipe diameter
Rust removing function .More thoroughly, cleaning brush replacement is convenient, economy is durable
it also have painting function .
F unctions of the steel tube straightening machine
1. Straighten the steel pipe/steel pope
2. Removing the rust on the surface of the steel pipe
3. Remove sand ,soil , dirty on the surface of the steel pipe
4. Paint the steel pipe and steel tube
Technical data of the steel tube straightening machine
|
Model |
SRP -48A ( eight rollers) |
SRP -48B ( six rollers) |
SRP -48C |
|
Straightening diameter range |
45-51mm |
45-51mm |
45-51mm |
|
Motor Power (KW) |
3kw+3kw+3kw |
3kw+3kw+3kw |
4kw+4kw+4kw |
|
voltage |
380v |
380v |
380v |
|
Working speed |
12m/min |
12m/min |
18m/min |
|
Weight |
950kg |
900kg |
1050kg |
|
Size L*W*H |
2600x800x1200mm |
2750x800x1200mm |
2900x800x1100mm |
|
Straightening angle |
60 degrees |
60 degrees |
60 degrees |
|
Function |
Remove rust, dirty, straighten, paint. |
Remove rust, dirty, straighten, paint. |
Remove rust, dirty, straighten, paint. |
