Quick Details
-
Key word:
-
Air lift bags,Air bag,Air Lift Bags for Salvage,Buoyancy Bags
-
Material:
-
3 layers PVC and Polyester Fabric
-
Floating Capacity:
-
100kg,300kg,1000kg and 50000kg and Customized
-
Accessories:
-
Dump valves, inverter line point,lifting belts, open/close bottom
-
Test Type:
-
Launching, salvage,Diving
-
Shape:
-
Parachute, open bottom, enclosed, enclosed pillow
-
Application:
-
underwater, salvage for Diver and Rov Operators
-
Color:
-
Yellow
-
Usage:
-
Lifting underwater salvage
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LETSFLEX
-
Type:
-
Underwater,Launching Salvage,Commercial Diving,Marine Salvage,Buoyancy
-
Key word:
-
Air lift bags,Air bag,Air Lift Bags for Salvage,Buoyancy Bags
-
Material:
-
3 layers PVC and Polyester Fabric
-
Floating Capacity:
-
100kg,300kg,1000kg and 50000kg and Customized
-
Accessories:
-
Dump valves, inverter line point,lifting belts, open/close bottom
-
Test Type:
-
Launching, salvage,Diving
-
Shape:
-
Parachute, open bottom, enclosed, enclosed pillow
-
Application:
-
underwater, salvage for Diver and Rov Operators
-
Color:
-
Yellow
-
Usage:
-
Lifting underwater salvage

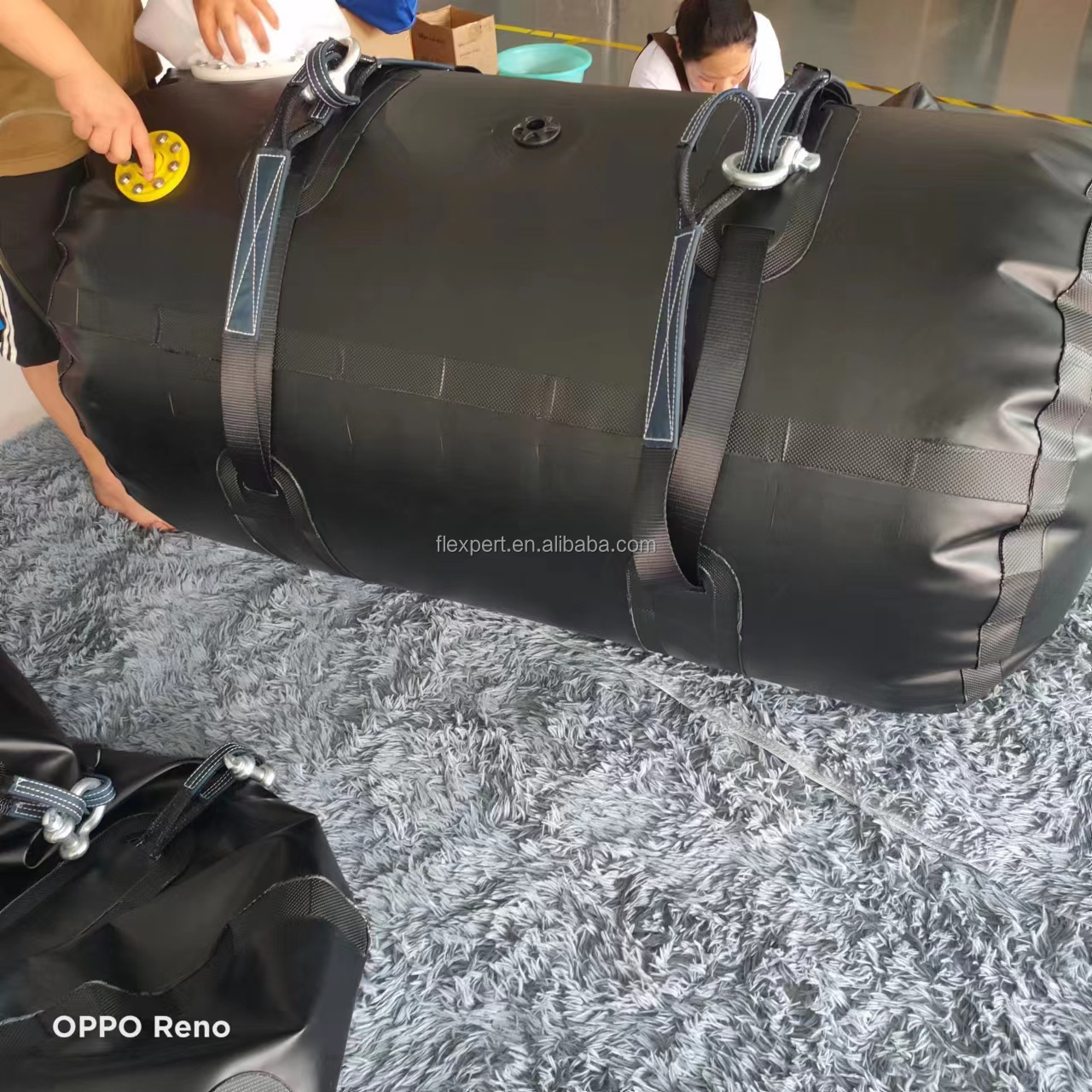

Air Lifting Bag for Buoyancy, Diving Salvage
Marine Salvage PVC Marine floating bags / Inflatable Dock Pontoon For Sale Cylinder buoyancy airbags/Underwater air lifting bag
Advantages and Specifications
- All bags from 100kg-50000KG upwards are manufactured from FLEXPERT produced heavy duty 3x3 weave PVC coated polyester, with a total weight of 1200-1680g/m2, and come with stitched polyester webbing straps and single attachment load shackle.
- Each bag comes with the following as standard:
- Top mounted manual dump valve with lanyard, operated from the bottom of the bag
Clearly labelled inversion line attachment point
|
Model NO.
|
Capacity
(KG) |
Bag Height
（mm/inch) |
Bag Diameter
(mm/inch)
|
Material Specification
|
Dump valve
|
|
FL-100
|
100
|
770/30
|
610/24
|
2x2 pvc 900gsm
|
Small
|
|
FL-250
|
250
|
1000/39
|
810/32
|
3x3 pvc 1250gsm
|
Small
|
|
FL-1000
|
1000
|
1490/59
|
1325/52
|
3x3 pvc 1250gsm
|
Large
|
|
FL-5000
|
5000
|
2590/102
|
2250/89
|
3x3 pvc 1680gsm
|
Large
|
|
FL-20000
|
20000
|
4400/173
|
3500/138
|
3x3 pvc 1680gsm
|
Large and 3/4" fill Valve
|
Air Lifting/ lift Bag Kits
Standard Accessories
-Inflate valves
-Dump valves
-Inverter line point
-Handles
-Lifting Belts
-Inverter line
-Open/Closed bottom
-Bow shackles
-Inflate valves
-Dump valves
-Inverter line point
-Handles
-Lifting Belts
-Inverter line
-Open/Closed bottom
-Bow shackles
-Masterlink
Features and Advantages
. Bags from 3,000kg/6,600lbs benefit from a top mounted 3/4" inlet pump valve assembly，less than 3,000kg is for small and large pump
Features and Advantages
. Bags from 3,000kg/6,600lbs benefit from a top mounted 3/4" inlet pump valve assembly，less than 3,000kg is for small and large pump
.
valve and quick release camlock coupling and 100kg-50000KG capacities are available in a wide choice of colours to match corporate branding or diving club colours.
|
Specification
|
Floating Capacity (KG)
|
Diameter (m)
|
Length (m)
|
Net weight (KG)
|
Color
|
|
FL-50L
|
50
|
0.3
|
0.6
|
5
|
Yellow or customized
|
|
FL-250L
|
100
|
0.4
|
0.9
|
6
|
Yellow or customized
|
|
FL-500L
|
250
|
0.6
|
1.1
|
8
|
Yellow or customized
|
|
FL-1
|
500
|
0.8
|
1.5
|
14
|
Yellow or customized
|
|
FL-2
|
1,000
|
1.0
|
1.8
|
20
|
Yellow or customized
|
|
FL-5
|
2,000
|
1.3
|
2.0
|
29
|
Yellow or customized
|
|
FL-10
|
3,000
|
1.4
|
2.4
|
35
|
Yellow or customized
|
|
FL-15
|
5,000
|
1.5
|
3.5
|
52
|
Yellow or customized
|
|
FL-20
|
8,000
|
1.8
|
3.8
|
78
|
Yellow or customized
|
|
FL-25
|
20,000
|
2.4
|
5.6
|
170
|
Yellow or customized
|
|
FL-35
|
35,000
|
2.9
|
6.7
|
255
|
Yellow or customized
|
|
FL-50
|
50,000
|
2.9
|
8.5
|
380
|
Yellow or customized
|
Air Lifting Bags Quality Certificates
