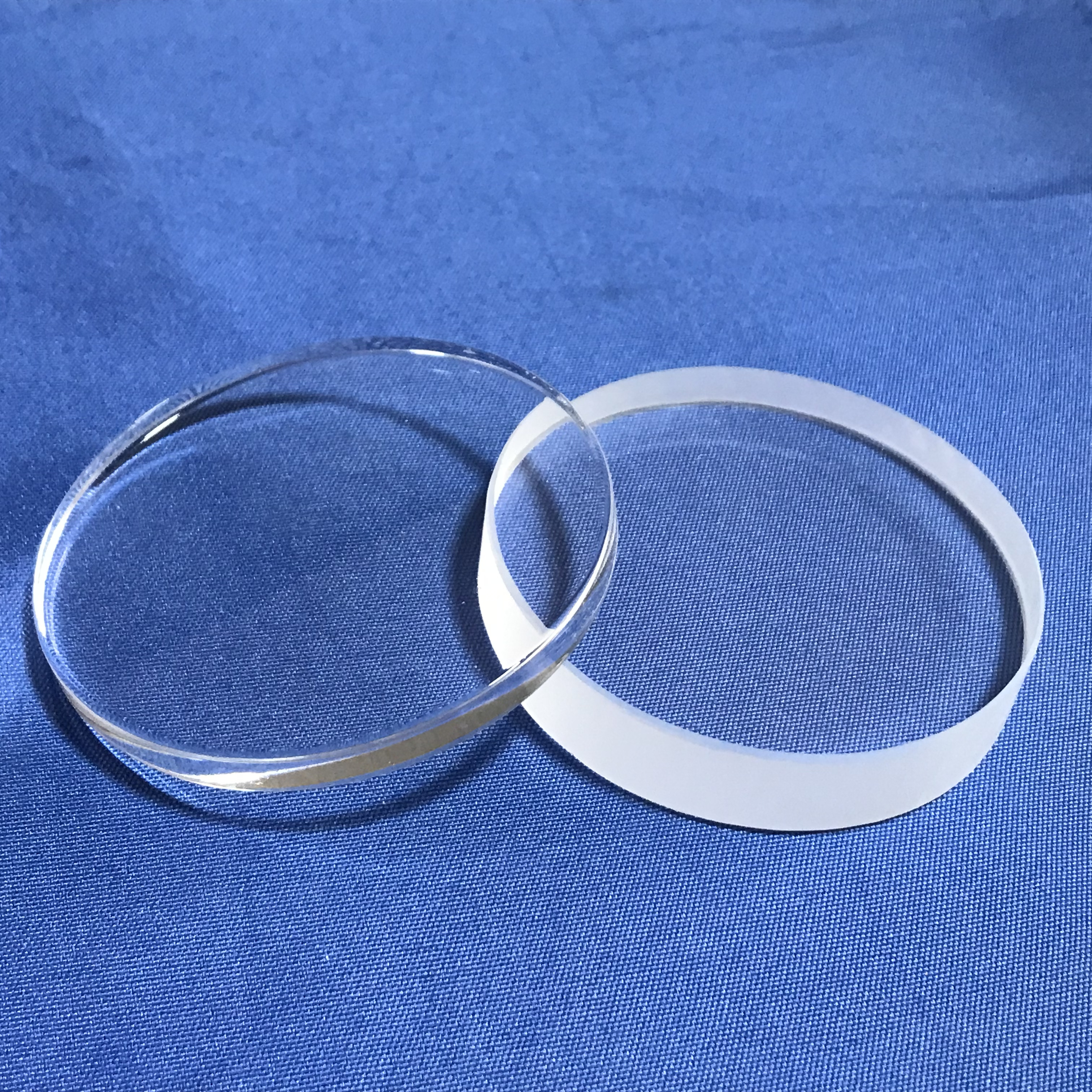

Huoyun High Purity Heat Resistance Optical Clear Wafer Quartz Slices Glass Round Fused Quartz Plate

Huoyun High Purity Heat Resistance Optical Clear Wafer Quartz Slices Glass Round Fused Quartz Plate

FOB Reference Price: Get Latest Price

≥2 Pieces

US $1.1

≥100 Pieces

US $0.8

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: China

Brand Name:: Huoyun

Model Number:: circular clear quartz plate

Material:: SIO2

Density:: 2.2g/cm3

Purity:: 99.99%

Diameter:: customized

Work Temperature:: 1100℃

Annealing Point:: 1180℃

Soften point:: 1730℃

Surface Quality:: 60/40

Edges Treatment:: Rough Edges/polished

Quick Details

Type:: Clear Quartz Plate

Application:: Optical/Semi/Industry

Thickness:: 0.5-100mm, customized

Place of Origin:: China

Brand Name:: Huoyun

Model Number:: circular clear quartz plate

Material:: SIO2

Density:: 2.2g/cm3

Purity:: 99.99%

Diameter:: customized

Work Temperature:: 1100℃

Annealing Point:: 1180℃

Soften point:: 1730℃

Surface Quality:: 60/40

Edges Treatment:: Rough Edges/polished

Products Description

Product Details:

1.SiO2> 99.99% ,high purity quartz rod.

2.Operating Temperature: 1250℃ SoftenTemperature: 1730℃.

3.Excellent visual and chemical performance.

4. without surface coating and infectant.

5. Health care and environmental protection.

6. Any dimension can be made.

Quartz glass sheets are usually colorless and transparent, with a visible light transmittance of more than 85%. Features: heat resistance,acid and alkali resistance， light transmittance, electrical insulation, and chemical stability.

For example, in terms of optical properties, it can not only transmit far ultraviolet light, which is the best of all ultraviolet transparent materials, but also can transmit visible light and near-infrared spectrum. Because quartz glass is resistant to high temperatures, has a very small thermal expansion coefficient, and has good chemical stability. Its bubbles, streaks, uniformity, and birefringence are comparable to those of ordinary optical glass. Therefore, it can work in various harsh situations and has a high stability of optical coefficients. Essential optical materials.

Specification

Circular	Diameter：3mm——500mm Thickness：0.2mm——100mm
Circular	Diameter：3mm——500mm Thickness：0.2mm——100mm
Rectangle type	Length：5mm——2000mm Width：5mm——800mm Thickness：0.2mm——100mm


Sio2	99.99%
Density	2.2g/cm³
Hardness	570KHN100
Specific heat(20℃)	660J/kg℃
Thermal conductivity (20℃)	1.4W/m℃
Working temperature	1100℃
Annealing point	1215℃
Softening point	1730℃
Ligth Transmittance	＞92％（1000 times than ordinary glass）

Accept customized drawings and samples Factory support to figure to sample custom

Buyer's Note

Since there are many types of quartz products, our prices are not necessarily the actual prices. Different types and sizes of quartz have different prices. We can only take pictures for buyers as a reference, and then you give us the specifications and we will give you a quotation. For example, the longer the length of the quartz rod, the more expensive it will be. Of course, the price also depends on the quantity. The larger the quantity, the cheaper the price. Please contact the seller for specific details.

Packing and delivery

Packing: 1. Inner layer: bubble paper. Plastic air cushion film. Foam material 2. Outer layer: Transport cartons, wooden cases or according to customer's requirements. Delivery: It depends on your requirements.

Here is our recommendation: For small orders, we recommend choosing DHL, FedEx, UPS or TNT as they are fast and secure. If the order quantity is large, we recommend shipping by sea as it is more cost-effective. Of course, air transport is also supported

Production details

company instruction

Lianyungang Huoyun Quartz company is one of the leading high quality quartz glass manufacturer and supplier in China.

Factory’s main products are: quartz tube;quartz plate; quartz rod; quartz glass flask; quartz glass beaker; quartz glass condenser; quartz glass crucible and other customized quartz products. The factory has advanced equipment, strong technical force, complete measurement and detection means, complete quality assurance system, to provide you with high-quality, high-standard products .We always try our best to meet the various needs of users.

Huoyun Quartz has always been a defining force in the sale and fabrication of quartz glass within the semi-conductor, chemical, solar Energy and precise ceramics within semi-conductor, solar energy, textile, electronic.Providing high quality products and services to our customers is one of our most important tasks.

FAQ

Q1:Do you have your own factory? A1:Yes, we have our own factory and have been focusing on quartz products for about 15 years.

Q2:Do you provide samples ? A2:Yes, we will provide samples according to your request.

Q3: How long does it take for me to get an offer? A3: We will quote within 24 hours after your inquiry.

Q4:How soon can you deliver the goods? A4:Generally it is usually 5-7 days if the material is in stock, , or it is usually 15-20 days if the material is not in stock, depending on the quantity.

If you have another question, pls feel free to contact us as below: Step1 :Please choose the goods with links or pictures which you want to order, Then click "contact supplier" or "chat with me" Or just send an inquiry. When we get your inquiry, we will give you a quotation soon within 24hours.

Step2: You can email us your order list with details, we'll reply right away when we received your email. If you have a need please send your inquiry details,Click " Send "now.
