- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
customized
-
Power:
-
customized
-
Weight:
-
1400 KG
-
Dimension(L*W*H):
-
customized
-
Product name:
-

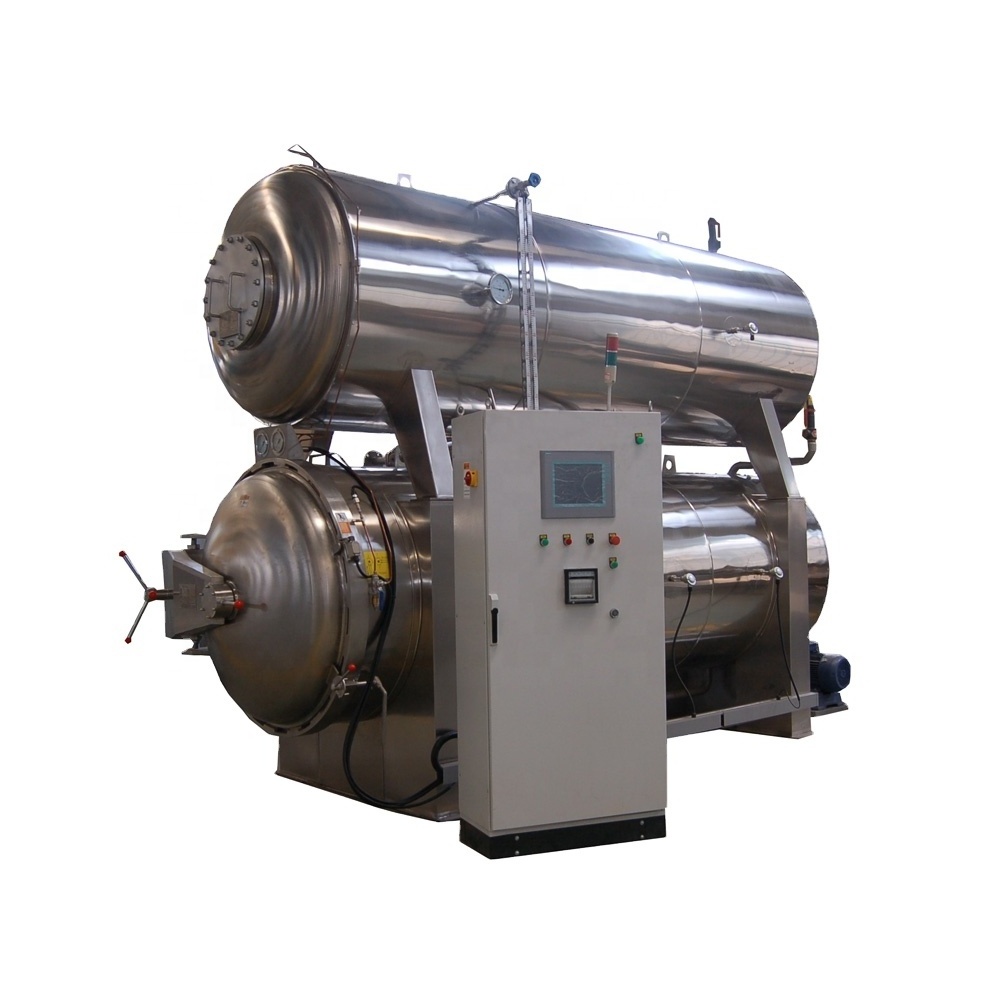

Horizontal Autoclave Sterilizer
-
Application:
-
Food Products
-
Sterilizing way:
-
Hot Water Spraying
-
Keywords:
-
Sterilizating Retort
-
Function:
-
High Temperature High Pressure Sterilizing
-
Material:
-
SUS30408
-
Control system:
-
Automatic Control System
-
Heating way:
-
Steam Heating Boiler \Electric Heating
-
Advantage:
-
High Efficiency Low Cost
-
Capacity:
-
300-5000L/h
Quick Details
-
Marketing Type:
-
Hot Product 2024
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZhongTai
-
Voltage:
-
customized
-
Power:
-
customized
-
Weight:
-
1400 KG
-
Dimension(L*W*H):
-
customized
-
Product name:
-
Horizontal Autoclave Sterilizer
-
Application:
-
Food Products
-
Sterilizing way:
-
Hot Water Spraying
-
Keywords:
-
Sterilizating Retort
-
Function:
-
High Temperature High Pressure Sterilizing
-
Material:
-
SUS30408
-
Control system:
-
Automatic Control System
-
Heating way:
-
Steam Heating Boiler \Electric Heating
-
Advantage:
-
High Efficiency Low Cost
-
Capacity:
-
300-5000L/h
Products Description
The characteristics of the electric and steam dual-purpose high-temperature and high-pressure sterilization pot equipment: This sterilization kettle is equipped with an electric heating system on the basis of the traditional spray sterilization kettle, providing thermal energy for the sterilization process. This machine eliminates the worry of purchasing a boiler, making users worry free and at ease. Especially suitable for users with low production volume.
|
Model
|
ZT-700*1200
|
ZT-900*1800
|
|
Volume(m³)
|
0.55
|
1.32
|
|
Design pressure(Mpa)
|
0.35
|
0.35
|
|
Testing pressure(Mpa)
|
0.44
|
0.44
|
|
Working pressure(Mpa)
|
0.3
|
0.3
|
|
Design temperature(℃)
|
147
|
147
|
|
Operation temperature(℃)
|
143
|
14343
|
|
Power(kw)
|
43
|
58
|
Product Application
The electric and steam dual-purpose high-temperature and high-pressure sterilization pot is suitable for various high-temperature resistant packaging materials:
*Soft bag packaging glass containers
* metal containers
* plastic containers
Main Features
• High temperature short time sterilization. Prior to sterilier retort water heated to the required temperature, thereby shortening the time of sterilizing, improve work efficiency.
•Save energy, increase production. In the sterilization process used in the working medium can be recycled, saving energy, time and manpower, material consumption, reduced production cost. Two sets of retorts work at the same time with one water tank, can improve one time productivity than the double-layers retort.
• For flexible packing products, especially the big packing, heat penetration speed, good sterilization effect.
•Heat distribution uniform, easy control the product quality.
Certifications
Details Images
Stainless Steel Material
The equipment is made of stainless steel ,which is not easy to wear and oxidize. It is beautiful and easy to clean.
Real time temperature monitoring
The B+B temperature sensor can monitor the F value and heat distribution of the food center at any time, and understand heat penetration at any time.
Strong power and stable operation
High speed improves efficiency, long service life, and less prone to damage
Multiple interlocking protections
Leakage protection system, over temperature protection and other safety devices, equipment control box, effective linkage of motor and mechanical components.
PCL intelligent control system
The equipment adopts microcomputer control, intelligent control module, fully automated design, and precise temperature and pressure. The structure is reasonable, easy to operate, and easy to maintain. Equipped with emergency stop switch, total leakage protection switch, over temperature alarm, automatic power cut-off and alarm in case of sensor failure.
Recommend Products
Name: Food steam sterilizer
Brand: Zhongtai
Original: China (mainland)
Main Features
Name: 3 kettles sterilizer
Brand: Zhongtai
Original: China (mainland)
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits
Machine Parts
Name: 2 kettles sterilizer
Brand: Zhongtai
Original: China (mainland)
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits
Main Features
Name: 4 kettles sterilizer
Brand: Zhongtai
Original: China (mainland)
Domestic famous engines, strong driving force, low fuel consumption, high economic
benefits.
in all shapes.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packaging & Shipping
|
Packaging
|
|
|
|
Size
|
4000 (L) * 1600 (W) * 1800(D)
|
|
|
Weight
|
1.5 T
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is
too tigher,we will use pe film for packing or pack it according to customers special request. |
|
|
Packaging
|
|
|
|
Size
|
4600 (L) * 1700 (W) * 2000 (D)
|
|
|
Weight
|
1.8 T
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is
too tigher,we will use pe film for packing or pack it according to customers special request. |
|
