Quick Details
-
Jacket:
-
PVC
-
Place of Origin:
-
China
-
Brand Name:
-
JZD
-
Model Number:
-
XLPE cable
-
Color:
-
Black, Orange or Customized
-
Certificate:
-
SAA
-
Conductor:
-
copper
-
Standard:
-
AS/NZS 5000.1
-
Core:
-
single core
-
Rated voltage:
-
0.6~1kv
-
Insulation:
-
Low Smoke Zero Halogen
-
Keywords:
-
Low Smoke Zero Halogen Insulation and Sheath Flexible Copper Cable
-
MOQ:
-
100meters
-
Working temperature:
-
0-90℃
Quick Details
-
Insulation Material:
-
Xlpe
-
Application:
-
Construction
-
Conductor Material:
-
Copper
-
Jacket:
-
PVC
-
Place of Origin:
-
China
-
Brand Name:
-
JZD
-
Model Number:
-
XLPE cable
-
Color:
-
Black, Orange or Customized
-
Certificate:
-
SAA
-
Conductor:
-
copper
-
Standard:
-
AS/NZS 5000.1
-
Core:
-
single core
-
Rated voltage:
-
0.6~1kv
-
Insulation:
-
Low Smoke Zero Halogen
-
Keywords:
-
Low Smoke Zero Halogen Insulation and Sheath Flexible Copper Cable
-
MOQ:
-
100meters
-
Working temperature:
-
0-90℃
Products Description

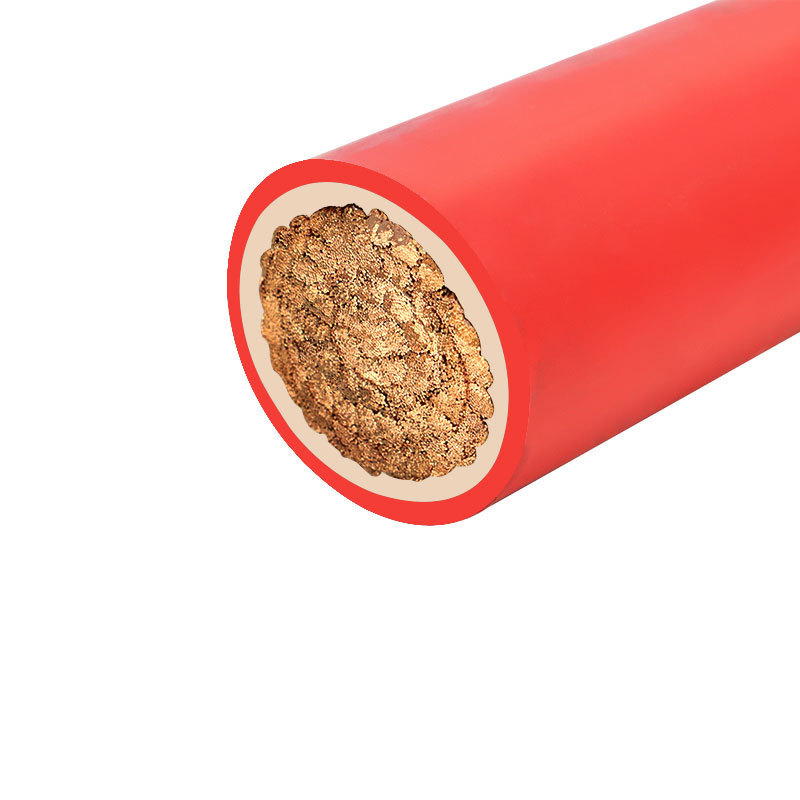

XLPE cable is a power transmission cable used for rated voltage 0.6/1KV.XLPE cable is anti flaming, hard to be on fire when it happens. the cable is applicable to subways, high-rise buildings, large industries, and other places with high density.
|
Rated Voltage
|
0.6/1KV
|
|
Conductor
|
Plain annealed copper
|
|
No.of Core
|
Single Core; 2C; 2C+E; 3C; 3C+E; 4C+E
|
|
Insulation
|
XLPE X-90
|
|
Sheath
|
PVC 5V-90
|
|
Certification
|
SAA
|
|
Stranded
|
AS/NZS 5000.1
|
|
Working Temperature
|
0-90℃
|
|
Sheath Colour
|
Orange Circular, Black
|
|
Inner Colors
|
2 Core+ Earth Core Color: Red, Black, Green/Yellow ;
3 Core+ Earth Core Color: Red, White, Blue, Green/Yellow ;
4 Core+ Earth Core Color: Red, White, Blue, Black, and Green/Yellow
|
Product Paramenters
|
single core
|
|
|
|
|
|
Nominal
conduct area （mm2） |
Main
conductor type |
Nominal
insulation thickness （mm） |
Nominal
overall diameter （mm） |
Approx.
mass |
|
16
|
Stranded
|
1.4
|
9.3
|
21
|
|
25
|
Compacted
|
1.4
|
10.5
|
30
|
|
35
|
Compacted
|
1.4
|
11.5
|
40
|
|
50
|
Compacted
|
1.4
|
12.9
|
52
|
|
70
|
Compacted
|
1.4
|
14.7
|
73
|
|
95
|
Stranded
|
1.5
|
17.2
|
101
|
|
120
|
Stranded
|
1.5
|
19.6
|
123
|
|
150
|
Stranded
|
1.6
|
21.3
|
152
|
|
185
|
Stranded
|
1.6
|
23.5
|
189
|
|
240
|
Stranded
|
1.7
|
26.6
|
246
|
|
300
|
Stranded
|
1.8
|
29.4
|
306
|
|
400
|
Compacted
|
1.9
|
33.3
|
386
|
|
500
|
Compacted
|
2
|
37
|
491
|
|
630
|
Compacted
|
2.2
|
41.4
|
635
|
|
2 &3 Core + Earth
|
|
|
|
|
|
|
||||||
|
Nominal
conductor
area （mm2） |
Main
conductor type |
Nominal
insulation thickness （mm） |
Nominal
sheath thickness （mm） |
Earth
cond. area （mm2） |
Nominal
overall diameter （mm） |
Approx.
mass （kg/ 100m） |
||||||
|
2 Core + Earth
|
|
|
|
|
|
|
||||||
|
16
|
Stranded
|
0.8
|
1.8
|
6
|
17.1
|
52
|
||||||
|
25
|
Compacted
|
0.9
|
1.8
|
6
|
19.3
|
72
|
||||||
|
35
|
Compacted
|
0.9
|
1.8
|
10
|
21.3
|
96
|
||||||
|
50
|
Compacted
|
1
|
1.8
|
16
|
24.2
|
129
|
||||||
|
70
|
Compacted
|
1.1
|
1.8
|
25
|
27.8
|
180
|
||||||
|
95
|
Compacted
|
1.1
|
1.9
|
25
|
31.8
|
238
|
||||||
|
120
|
Stranded
|
1.2
|
2
|
35
|
36.6
|
299
|
||||||
|
3 Core + Earth
|
|
|
|
|
|
|
||||||
|
16
|
Stranded
|
0.8
|
1.8
|
6
|
18.6
|
69
|
||||||
|
25
|
Compacted
|
0.9
|
1.8
|
6
|
20.9
|
97
|
||||||
|
35
|
Compacted
|
0.9
|
1.8
|
10
|
23.2
|
132
|
||||||
|
50
|
Compacted
|
1
|
1.8
|
16
|
26.5
|
176
|
||||||
|
70
|
Compacted
|
1.1
|
1.9
|
25
|
30.8
|
248
|
||||||
|
95
|
Compacted
|
1.1
|
2
|
25
|
34.6
|
333
|
||||||
|
120
|
Stranded
|
1.2
|
2.1
|
35
|
39.7
|
416
|
||||||
|
150
|
Stranded
|
1.4
|
2.3
|
50
|
44.4
|
524
|
||||||
|
185
|
Stranded
|
1.6
|
2.4
|
70
|
49.7
|
655
|
||||||
|
240
|
Stranded
|
1.7
|
2.6
|
95
|
55.7
|
861
|
||||||
|
300
|
Stranded
|
1.8
|
2.8
|
120
|
62.9
|
1066
|
||||||
|
4 Core + Earth
|
|
|
|
|
|
|
||||||
|
Nominal
conductor area (mm2) |
Main
conductor type |
Nominal
insulation thickness (mm) |
Nominal
sheath thickness （mm） |
Earth
cond. area (mm2) |
Nom.
overall diam. (mm) |
Approx.
mass (kg/100m) |
||||||
|
16
|
Stranded
|
0.8
|
1.8
|
6
|
20.4
|
88
|
||||||
|
25
|
Compacted
|
0.9
|
1.8
|
6
|
23.1
|
124
|
||||||
|
35
|
Compacted
|
0.9
|
1.8
|
10
|
25.7
|
167
|
||||||
|
50
|
Compacted
|
1
|
1.9
|
16
|
29.7
|
225
|
||||||
|
70
|
Compacted
|
1.1
|
2
|
25
|
34.4
|
317
|
||||||
|
95
|
Compacted
|
1.1
|
2.1
|
25
|
38.8
|
431
|
||||||
|
120
|
Stranded
|
1.2
|
2.3
|
35
|
44.8
|
542
|
||||||
|
150
|
Stranded
|
1.4
|
2.4
|
50
|
49.9
|
676
|
||||||
|
185
|
Stranded
|
1.6
|
2.6
|
70
|
56.1
|
845
|
||||||
|
240
|
Compacted
|
1.7
|
2.8
|
95
|
62.6
|
1104
|
||||||
|
300
|
Stranded
|
1.8
|
3
|
95
|
74.1
|
1385
|
||||||
