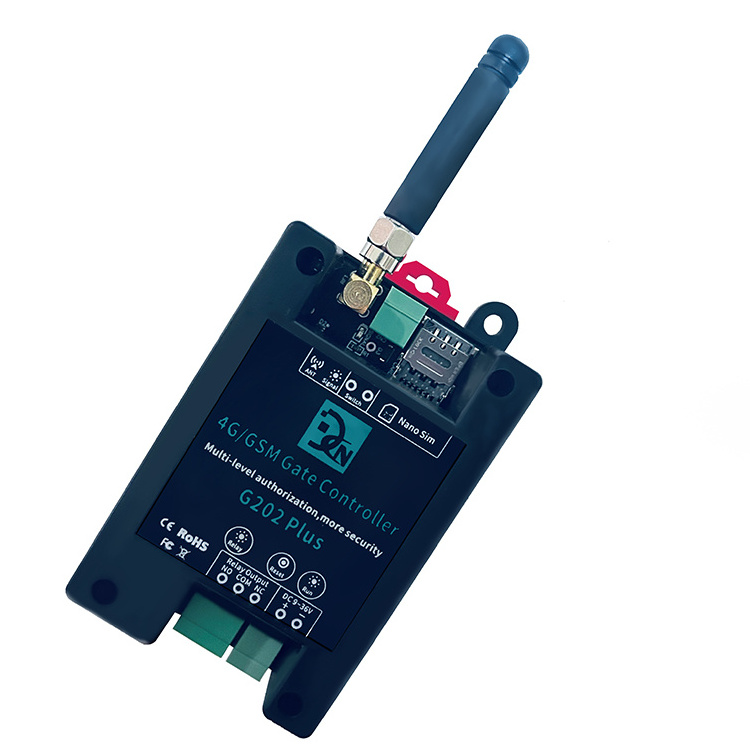

G202PLUS GSM Gate Opener Access Controller Wireless Relay Switch for Garage Door Remote Control
G202PLUS GSM Gate Opener Access Controller Wireless Relay Switch for Garage Door Remote Control
G202PLUS GSM Gate Opener Access Controller Wireless Relay Switch for Garage Door Remote Control
G202PLUS GSM Gate Opener Access Controller Wireless Relay Switch for Garage Door Remote Control
G202PLUS GSM Gate Opener Access Controller Wireless Relay Switch for Garage Door Remote Control
G202PLUS GSM Gate Opener Access Controller Wireless Relay Switch for Garage Door Remote Control
G202PLUS GSM Gate Opener Access Controller Wireless Relay Switch for Garage Door Remote Control
G202PLUS GSM Gate Opener Access Controller Wireless Relay Switch for Garage Door Remote Control

G202PLUS GSM Gate Opener Access Controller Wireless Relay Switch for Garage Door Remote Control

FOB Reference Price: Get Latest Price
≥1 Pieces
US $11.98
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Application:
Villa,Office Building,School,Workshop,Farmhouse
Place of Origin:
Guangdong, China
Brand Name:
Chisung
Model Number:
G202PLUS
Input Voltage(V):
DC 9V~36V/1A
Rated Voltage:
DC 9V~36V/1A
Working temperature:
-10℃~+60℃
Storage temperature:
-20℃~+60℃
Relative humidity:
10-90%, No condensation
Communication protocol:
GSM PHASE 2/2+ (include data service)
Related Voltage of the Output Relay:
3A/240V AC
SIM Card:
Nano type, 3V
Antenna:
50 Ω SMA
Wired Switch:
Supports
Dimension:
96.5*50*31.5mm

Quick Details

Warranty:
1 Year
After-sale Service:
Online technical support
Project Solution Capability:
3D model design, total solution for projects
Application:
Villa,Office Building,School,Workshop,Farmhouse
Place of Origin:
Guangdong, China
Brand Name:
Chisung
Model Number:
G202PLUS
Input Voltage(V):
DC 9V~36V/1A
Rated Voltage:
DC 9V~36V/1A
Working temperature:
-10℃~+60℃
Storage temperature:
-20℃~+60℃
Relative humidity:
10-90%, No condensation
Communication protocol:
GSM PHASE 2/2+ (include data service)
Related Voltage of the Output Relay:
3A/240V AC
SIM Card:
Nano type, 3V
Antenna:
50 Ω SMA
Wired Switch:
Supports
Dimension:
96.5*50*31.5mm
Product Description

1. Technical parameters

Rated Voltage: DC 9V~36V/1A
Working temperature: -10℃~+60℃
Storage temperature: -20℃~+60℃
Relative humidity: 10-90%, No condensation
Work frequency: GSM: 850/900/1800/1900MHz
4G:
C:GSM:900/1800,LTE-FDD B1/B3/B5/B8 LTE-TDD:B34/B38/B39/B40/B41
E:GSM:900/1800,LTE-FDD B1/B3/B5/B7/B8/B20
SA:GSM:850/900/1800/1900M LTE-FDD B1/B3/B5/B7/B8/B28/B66
Communication protocol: GSM PHASE 2/2+ (include data service)
Related Voltage of the Output Relay: 3A/240V AC
SIM Card: Nano type, 3V
Antenna: 50 Ω SMA
Wired Switch: Supports
Dimension: 96.5*50*31.5mm
Net Weight: 88g
Contact Capacity : 5 Amps at 250VAC Cosφ=1. 20 Amps at 14VDC

Main Features

1. Support global 2G 3G 4G communication frequency

2. Support authorization of 1001 user numbers. Support to query your authorized number

3. Support 9-36V wide voltage input

4. Support relay delay closing time 0-999 seconds

5. Support the permanent closing of the relay until the next command interrupts the closing

6. Authorization protection, supporting white list and black list

7. Support remote restart and remote reset

8. Support one-click query of all numbers

9. Support query of equipment status

10. Support query of signal value

11. Support authorized number incoming call and SMS control device

2. Products instruction

Based on GSM/3G/4G communication protocol, supports 1001 authorized users. Authorized
users can remotely control the equipment, systems and machines connected to the product by
SMS commands & free calling. It is widely used in access control systems, garage doors, swing
doors ,folding doors,sliding doors, parking system and the equipments that can be connected to
the relay control,the G202PLUS gate controller will send a notification (via SMS) to the user of
the result of the remote control (such as the opening and closing status of the
gate).
With real authorize and multi-level authorization, more security. no authorize no access, even
if you know the password.
3.Physical Layout
Product display

Installation
1 . A nano SIM card support basic communication function for SMS and calling, close the PIN lock
2 . Connecting diagram
3 . Follow the commands list to operate
4 . After the first authorize successfully, follow the commands list and the user manual to
do other settings
Connecting diagram:
Commands list and note
FAQ

common problem:

1.After authorized, why the device does not respone the commands or calling?
Due to the different communication methods of operators in different countries, the actual
number recognized by the device may be different. For example, your authorized number is +86
12345678, and the actual device acquisition number may be 12345678, resulting in invalid
authorization.
When the authorized number to send the instruction and dial the telephone device does not
correspond, you can use this number to send the verification instruction to the device to verify
whether the authorized number you filled in is correct. The instructions are as follows:
0000#CHECKTHEPHONE#
The device will feedback: YOUR Phone Num:XXXXXXXXX to re-authorize the number
