Quick Details
-
Brand Name:
-
SILFRADENT
-
Model Number:
-
DI 500
-
Shelf Life:
-
None
-
Quality Certification:
-
CE certified products
-
Safety standard:
-
ISO 9001 and ISO 13485
-
Power source:
-
230V+/-10% | 50/60 Hz
-
Nominal power consumption:
-
170 VA
-
RPM:
-
200 MIN 40.000 MAX CON RID.1/1
-
Hydraulic circuit capacity:
-
MAX 50 ML/MIN
-
Weight:
-
4,1 Kg
-
Dimensions:
-
WxDxH: cm 25,5x25x12,5
-
DI IMS:
-
irrigation pipe
-
Medical class:
-
IIA
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Other
-
Place of Origin:
-
Italy
-
Brand Name:
-
SILFRADENT
-
Model Number:
-
DI 500
-
Shelf Life:
-
None
-
Quality Certification:
-
CE certified products
-
Safety standard:
-
ISO 9001 and ISO 13485
-
Power source:
-
230V+/-10% | 50/60 Hz
-
Nominal power consumption:
-
170 VA
-
RPM:
-
200 MIN 40.000 MAX CON RID.1/1
-
Hydraulic circuit capacity:
-
MAX 50 ML/MIN
-
Weight:
-
4,1 Kg
-
Dimensions:
-
WxDxH: cm 25,5x25x12,5
-
DI IMS:
-
irrigation pipe
-
Medical class:
-
IIA
Product Description

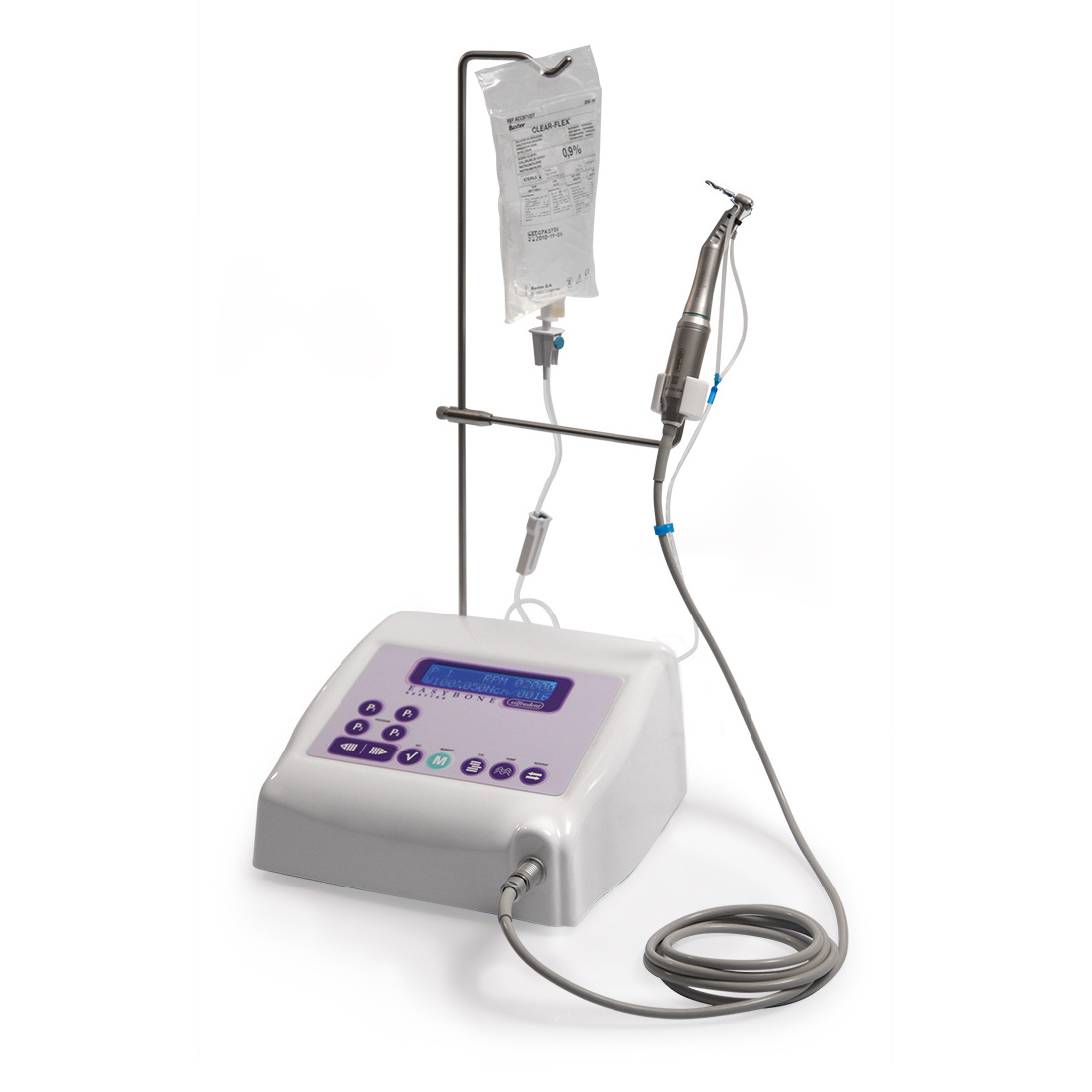

Easybone DI 500 with Light
Surgical micromotor for implant physiodispenser -
Suitable for implants,
and maxillo-facial surgery and microsurgery procedures.
* BRUSHLESS MIRCROMOTOR with 200 to 40.000 rpm (1:1) speed range: simple and pratical functioning at every speed/torque option, and selected program; * MICROMOTOR with contra-agle anti-rotation device. Stainless steel mototr case and connection cable can be both subject to severat auto-cleavable; * TORQUE from 01 to 80 Ncm with contrangle 32:1; * SPEED with contrangle 32:1 from 6 to 1250 rpm * 33 SETTABLE REDUCTIONS; * PUMP IRRIGATION LIQUID FLOW adjustable from 0 to 100%; * DIRECT ACCESS PROGRAMMABLE FUNCTIONS: speed, torque, pump, reverse, reducer hand-piece (all parameters in sequential mode); * ERRORS – DIAGNOSTIC SYSTEM CONTROL; * ANGLE AUTO CALIBRATION upon machine’s activation; * DIRECT SWITCH FOR EVENTUAL PUMP’S ACTIVATION; * INSTANT VISUALIZATION OF TORQUE AND SPEED ADJUSTEMENTS, during the operative phase; * POSSIBILITY TO CHANGE THE OPERATION PARAMETERS and opportunity to memorize them; * 4 PRE-PROGRAMMED FUNCTIONS by direct button.
Specification
|
Product name
|
Easybone Quattro DI 500 with light
|
|
Power source
|
230V+/-10% | 50/60 Hz
|
|
Nominal power consumption
|
170 VA
|
|
RPM
|
200 MIN 40.000 MAX CON RID.1/1
|
|
Hydraulic circuit capacity
|
MAX 50 ML/MIN
|
|
Weight
|
4,1 Kg
|
|
Dimensions
|
WxDxH: cm 25,5x25x12,5
|
|
DI IMS
|
Irrigation pipe
|
|
Equipped with
|
Electronic control with peristaltic pump
High-speed motor with lighting
Multifunction pedal DI 500PV
|
|
Optional
|
Contrangle with light model CIS321SNLIGHT
|
