Quick Details
-
Model Number:
-

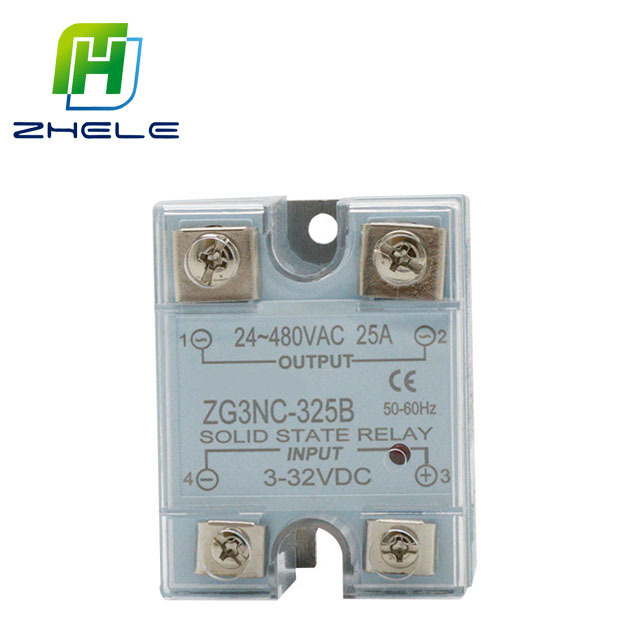

ZG3NC-325B SSR 25A
-
Load voltage:
-
24~480VAC
-
control voltage:
-
3~32VDC
-
Control current:
-
DC4~20mA
-
on voltage:
-
≤1.5V
-
On leakage current:
-
≤2mA
-
On-off Time:
-
≤10mS
-
Dielectric Strength:
-
2500VAC
-
Insulation resistance:
-
1000MΩ/500VDC
-
ambient temperature:
-
-30 ~+75℃
-
Work instructions:
-
LED
Quick Details
-
Contact Load:
-
10A/20A/30A/40A/50A/60A/70A/80A/90A/100A/120A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZHELE
-
Model Number:
-
ZG3NC-325B SSR 25A
-
Load voltage:
-
24~480VAC
-
control voltage:
-
3~32VDC
-
Control current:
-
DC4~20mA
-
on voltage:
-
≤1.5V
-
On leakage current:
-
≤2mA
-
On-off Time:
-
≤10mS
-
Dielectric Strength:
-
2500VAC
-
Insulation resistance:
-
1000MΩ/500VDC
-
ambient temperature:
-
-30 ~+75℃
-
Work instructions:
-
LED
Solid state relay
| Load voltage | 24~480VAC |
| control voltage | 3~32VDC |
| Control current | DC4~20mA |
| on voltage | ≤1.5V |
| On leakage current | ≤2mA |
| On-off Time | ≤10mS |
| Dielectric Strength | 2500VAC |
| Insulation resistance | 1000MΩ/500VDC |
| ambient temperature | -30 ~+75℃ |
| Work instructions | LED |
| Load current | 25A |
| Mounting Methods | bolted |
| Weight | 90g(10A,25A)105g(40A)above |
outline overall and installing dimensions
1,Miniature,light,high sensitivity,long life.
2, 2 group, 3 group (10A) contact transfermation are available.
3,Installation method like PCB print layout,Socket type,flange type are avaible.
4,Indicator light and diode are optional.
5.Silver alloy contact, with the features of heat resistance,shock resistance,high flame retardant refractive index, is used to make the casing.
6.Best quality grass and integral punch forming method are adopted,resulting in outstanding conduction.
8.Electromagnetic relay passed,CE&RoHS,CQC,UL.
9.OEM/ODM Service.
