Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
Ranking
-
Model Number:
-
SP-12-12
-
Place of Origin:
-
Fujian, China
-
Cable Length:
-
3m 16AWG or OEM
-
Outlet Size:
-
1/2"(12.7mm) Barb
-
Power:
-
144 W
-
motor:
-
Permanent Magnet
-
Amps:
-
12A
-
Flow:
-
12 LPM / 3.2 GPM
-
Inlet Size:
-
50 mesh dual Stainless steel filter
-
Max Fluid Temp:
-
140 °F (60 °C)
-
Max Lift:
-
82.2m
-
Duty Circle:
-
intermittent
-
Fuel:
-
Battery, Solar Power, Transformer, Electric
-
Material:
-
Housing: 304 Stainless steel, Valve:EPDM
-
Thermal Protection:
-
Yes
Quick Details
-
Application:
-
Irrigation, Agriculture, Livestock, watering, Deep well, Remote home, Tank Filling, Pond Increase Oxygen
-
Pressure:
-
High Pressure
-
Voltage:
-
12V
-
Warranty:
-
1 year
-
Brand Name:
-
Ranking
-
Model Number:
-
SP-12-12
-
Place of Origin:
-
Fujian, China
-
Cable Length:
-
3m 16AWG or OEM
-
Outlet Size:
-
1/2"(12.7mm) Barb
-
Power:
-
144 W
-
motor:
-
Permanent Magnet
-
Amps:
-
12A
-
Flow:
-
12 LPM / 3.2 GPM
-
Inlet Size:
-
50 mesh dual Stainless steel filter
-
Max Fluid Temp:
-
140 °F (60 °C)
-
Max Lift:
-
82.2m
-
Duty Circle:
-
intermittent
-
Fuel:
-
Battery, Solar Power, Transformer, Electric
-
Material:
-
Housing: 304 Stainless steel, Valve:EPDM
-
Thermal Protection:
-
Yes
|
Pump Name
|

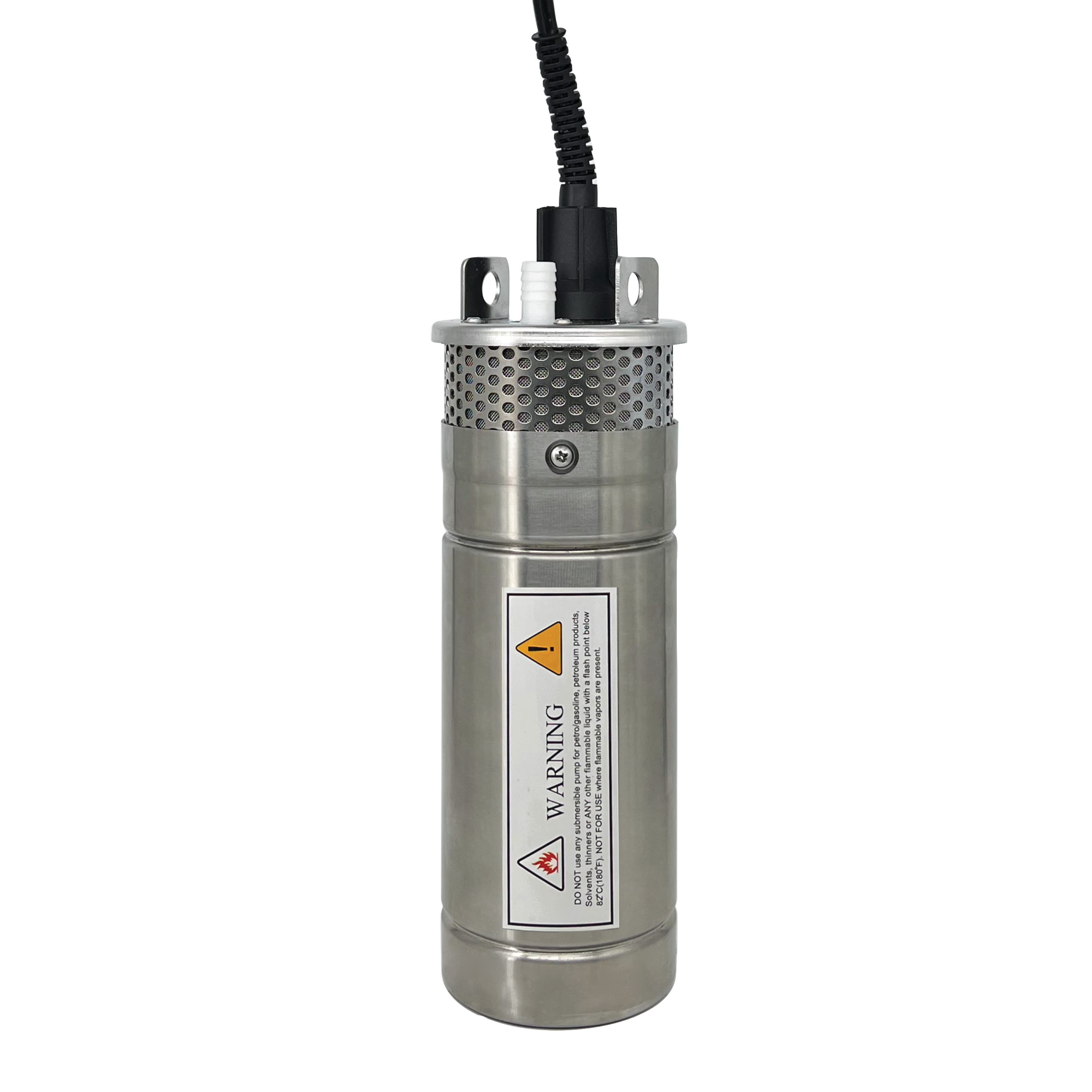

RANKING DC Solar 3 Chambers Submersible Water Pump
|
|
|
||
|
Flow Rate
|
12LPM/3.2GPM
|
|
|
||
|
Max Lift
|
62.2M
|
|
|
||
|
Max Amps
|
12A
|
|
|
||
|
Voltage
|
12V
|
|
|
||
|
Power
|
144w
|
|
|
||
|
Outlet Port
|
1/2"(12.7mm)Barb
|
|
|
||
|
Inlet Port
|
60 mesh filter
|
|
|
||
|
Max Fluid Temp
|
140 °F (60 °C)
|
|
|
||
|
Lead
|
3m
|
|
|
||
|
Switch Type
|
By Pass
|
|
|
||
|
Thermal Protection
|
Yes
|
|
|
||
|
Duty Circle
|
intermittent
|
|
|
||
|
Fuel
|
Battery, Solar Power, Transformer, Electric
|
|
|
||
|
Material
|
Valve:EPDN;Housing:Stainless Steel;Motor:Copper Coils;Fasteners:Stainless Steel;Diaphragm:Santoprene
|
|
|
||
|
Head &Flow table(3 miters power lead)
|
|
|
Head &Flow table (30 miters power lead)
|
|
||
|
62.2M
|
3LPM
|
|
56.4M
|
2LPM
|
||
|
56.4M
|
4LPM
|
|
50.6M
|
2.5LPM
|
||
|
50.6M
|
4LPM
|
|
39M
|
3LPM
|
||
|
39M
|
4.6LPM
|
|
30.3M
|
3,5LPM
|
||
|
30.3M
|
5.5LPM
|
|
|
|
||
|
18.7M
|
7LPM
|
|
|
|
||
|
10M
|
10LPM
|
|
|
|
||
|
4M
|
12LPM
|
|
|
|
||
Product Description
Application
Irrigation, Agriculture, Livestock, watering, Deep well, Remote home, Tank Filling, Pond Increase Oxygen, etc.
|
Housings
|
304 Stainless Steel
|
|
|
|
|||
|
Valves
|
EPDM
|
|
|
|
|||
|
Diaphragm
|
Santoprene
|
|
|
|
|||
|
Fasteners
|
304 Stainless Steel
|
|
|
|
|||
|
Motor
|
Copper Coils Motor
|
|
|
|
|||
Specification
|
Unit Pump Weight
|
7.05lbs (3.2kg)
|
|
Selling Unit Size (L x W x H)
|
13.78" x 5.19" x 4.33"
(35 x 13 x 11cm) |
|
Unit Weight
|
8.16 lbs (3.7kg)
|
|
Master Carton Size (L x W x H)
|
16.34"x 13.58" x 11.02"
(41.5 x 34.5 x 28cm) |
|
Master Carton Qty
|
6pcs
|
|
Master Carton Weight
|
51.59lbs (23.4kg)
|
