Technique datas:
Tofu mould:420*320*80mm
Packing Size:650*580*650mm
Size:610*580*1200mm
Weight:20kg
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
No
-
Power:
-
No
-
Weight:
-
20 KG
-
Dimension(L*W*H):
-
580*610*1200mm
-
Forming Quantity:
-
A box
-
Tofu Box Size:
-
320*420*80 mm
-
Application:
-
Tofu forming
Quick Details
-
Core Components:
-
stainless steel screw
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Tiangang
-
Voltage:
-
No
-
Power:
-
No
-
Weight:
-
20 KG
-
Dimension(L*W*H):
-
580*610*1200mm
-
Forming Quantity:
-
A box
-
Tofu Box Size:
-
320*420*80 mm
-
Application:
-
Tofu forming

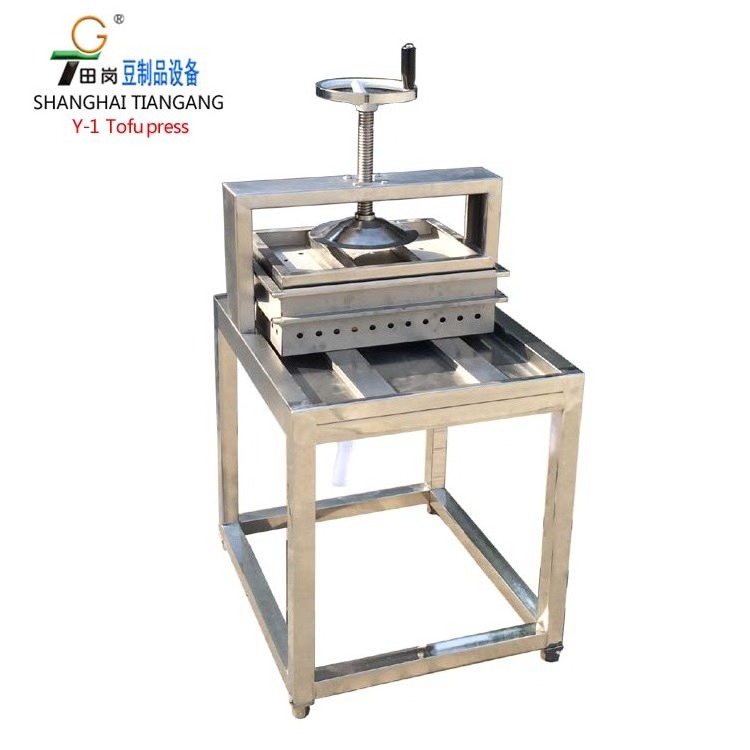

Y-1 Manual tofu pressing machine /tofu making / tofu press
Consist of full stainless steel , rack, tofu mould and screw and handwheel, simple structure, easy to operate, wash convenient ,
the tofu press height can easy control, the tofu looks nice , production operations save time and strength.
Apply to Beancurd Mill, chains shop, canteens, restaurants etc.
All stainless steel,Manual operation,Tofu forming pressing
Features: No power, power outages are not affected, the operation is simple, tofu quality control easy.
Y-1 manual tofu press machine
Y-2 Aerodynamic Force Tofu Press Machine
The machine is made of stainless steel and consists of a frame, a tofu mold, an air pressure control system and an air compressor. The structure is simple, the operation is simple, and the cleaning is convenient and hygienic. The pressed tofu is highly controllable, the pressure is adjustable, the tofu forming quality is controllable, and the production operation saves time and effort。
Apply to Tofu Mill, chains shop, canteens, restaurants etc.
Technique data:
Route of air cylinder:150mm；
Maximun pressure:0.8MPa
tofu mould:420*320*80+70mm
Size:610*580*1200mm
Weight:20+16kg;Include the air pump
Y-4 Multifunctional tofu press
The machine is made of all stainless steel and meets food hygiene standards.
The pressure is provided by the screw and jack.
Its characteristics:
manual operation is convenient and random, no power supply is required, and power failure and other failures do not affect production.
Multi-function:
To configure tofu, dried bean curd, tofu skin, etc., it is widely used in the production of small soy products workshops.
With jack pressure: 10T;
limited working height: 500mm
Upper platen size: 300 * 300mm;
lower table size: 580 * 600mm
Production capacity: 30-60kg / h (dried tofu)
Dimensions: 68 * 61 * 130cm; weight: 95Kg.
Shanghai Tiangang Machine Manufacture Co.Ltd. has been engaged in manufacturing soybean processing machine for .
Our products are widely used all over the world . Mainly including Food grinding machine,Colloid mill,Commercial Soya milk machine, Tofu making machine, packaging and other soybean processing machinery.
Also,we can provide whole sets of soymilk and tofu processing line, consist of soybean soaking,suction of soybeans,grinding and separating,cooking,breaking,pressing and sterilization ,packaging other.
More importantly is we can design turn-key project according to customers' needs. Our salesmen as well as engineers are know very well about our products,they will serve you with all their profession and sincerity.
Looking forward to cooperating with you in the near future !
