Quick Details
-
Model Number:
-
MGNG1MW
-
Rated Voltage:
-
400/230V, 10.5kv
-
Rated Current:
-
1800A
-
Speed:
-
1500/1800rpm
-
Frequency:
-
50/60HZ
-
Engine brand:
-
WEICHAI/YuChai/Commins/JiChai
-
Alternator Brand:
-
Stanford
-
Gas type:
-
Natural Gas Biogas Lpg
-
Cooling method:
-
Water Cooled Method
-
Start method:
-
Electric Start
-
Product name:
-
Natural Gas Generator
-
Engine Type:
-
Gas Engine
-
Gas Fuel:
-
Natuaral Gas
-
Fuel:
-
Bio Gas
Quick Details
-
Warranty:
-
1year, 1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MG
-
Model Number:
-
MGNG1MW
-
Rated Voltage:
-
400/230V, 10.5kv
-
Rated Current:
-
1800A
-
Speed:
-
1500/1800rpm
-
Frequency:
-
50/60HZ
-
Engine brand:
-
WEICHAI/YuChai/Commins/JiChai
-
Alternator Brand:
-
Stanford
-
Gas type:
-
Natural Gas Biogas Lpg
-
Cooling method:
-
Water Cooled Method
-
Start method:
-
Electric Start
-
Product name:
-
Natural Gas Generator
-
Engine Type:
-
Gas Engine
-
Gas Fuel:
-
Natuaral Gas
-
Fuel:
-
Bio Gas
Product Description

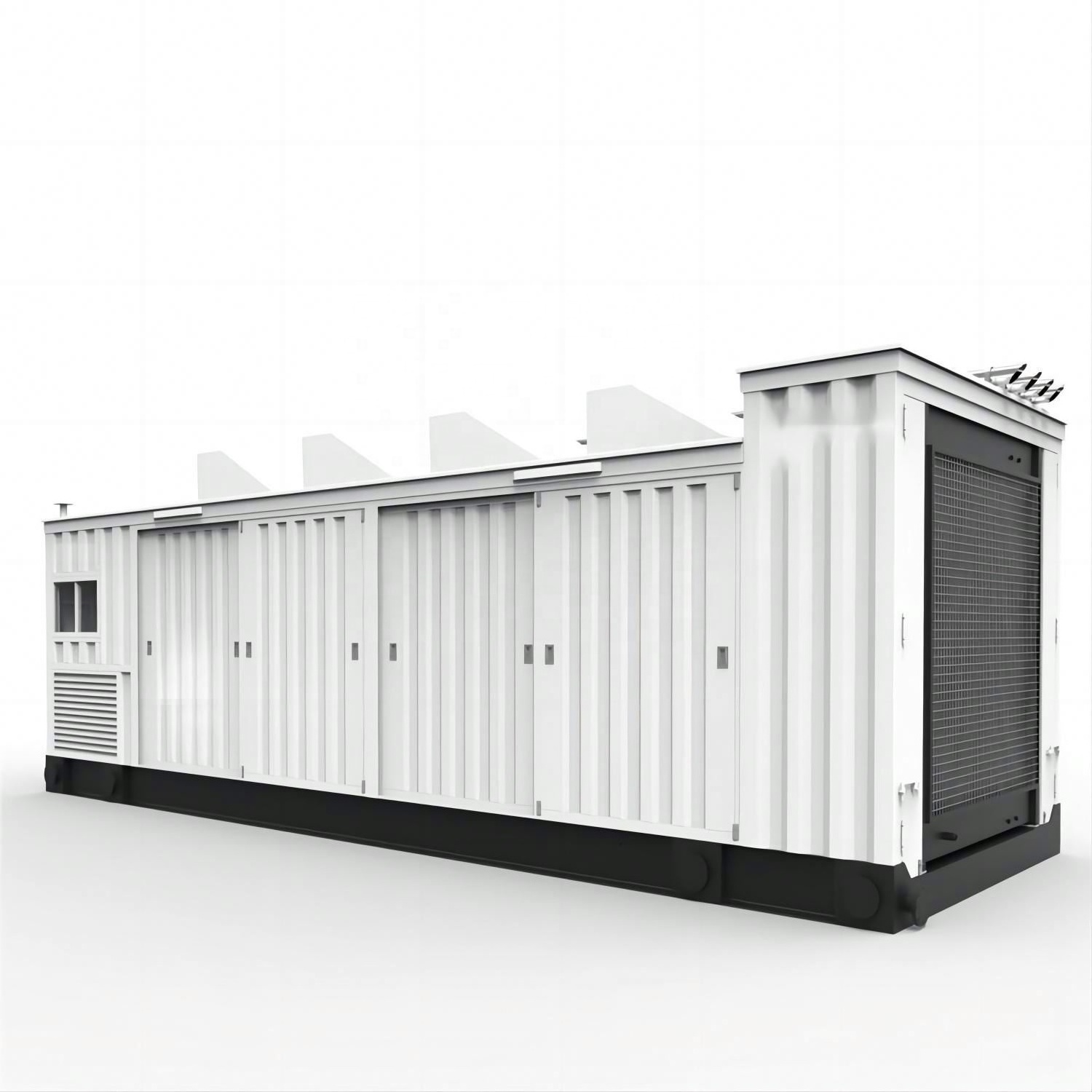

CE backup power 50hz /60 Hz 1MW 1000 kva natural gas generator
GAS ENGINE BRAND
Specification
|
Generator Set
|
Rated Power
|
20kw-1000kw
|
|
|
|
Rated Voltage
|
400V/380/230V/220V (customizable)
|
|
|
|
Rated Frequency
|
50Hz/60Hz
|
|
|
|
Rated Current
|
36~1800A
|
|
|
|
Type
|
Open/Silent/Soundproof/Container
|
|
|
Gas Engine
|
Engine Brand
|
Cummins, YuChai, WEICHAI, Jichai
|
|
|
Alternator
|
Type
|
Brushless
|
|
|
|
Brand
|
Stamford,Leory Somer,LongYuan, etc.
|
|
|
|
Connection
|
3-pahse, 4-wire
|
|
|
Controller
|
Type
|
Auto PLC Controller
|
|
|
|
Brand
|
Deepsea, SmartGen,etc.
|
|
|
Fuel
|
|
Natural gas/CNG/LNG/LPG/Biogas/Biomass gas
|
|
|
Application
|
|
Mines, Building, Oil Fields, Hospitals, Schools, Ports, Hotels, etc.
|
|
|
Delivery Time
|
|
7-10days
|
|
|
Warranty
|
|
12 months or 1500 running hours (subject to the earlier)
|
|
|
Requirments for gas
|
|
1.Impurities content≤30mg/Nm³, size≤5μm, no free water.
|
|
|
|
|
2.Acceptable fuel gas pressure: 2kPa ~10 kPa, C3H8≥80%.
|
|
|
|
|
3.Impurities content≤30mg/Nm³
|
|
|
|
|
Excessive sulfur content can cause serious damage to engine components
|
|
|
Approximate Natural Gas Consumption Chart
|
|
|
|
|
||||
|
This chart approximates the fuel consumption* of a natural gas generator based on the size of the generator and the load at which the generator is operating at. Please note that this table is intended to be used as an estimate of how much fuel a generator uses during operation and is not an exact representation due to various factors that can increase or decrease the amount of fuel consumed. Just for reference only
|
|
|
|
|
||||
|
Generator Size (kW)
|
1/4 Load (ft3/hr)
|
1/2 Load (ft3/hr)
|
3/4 Load (ft3/hr)
|
Full Load (ft3/hr)
|
||||
|
20
|
157
|
188
|
247
|
289
|
||||
|
30
|
202
|
260
|
348
|
416
|
||||
|
40
|
246
|
333
|
449
|
543
|
||||
|
60
|
334
|
479
|
652
|
798
|
||||
|
75
|
400
|
588
|
803
|
990
|
||||
|
100
|
510
|
771
|
1056
|
1308
|
||||
|
125
|
621
|
953
|
1308
|
1627
|
||||
|
135
|
665
|
1026
|
1409
|
1754
|
||||
|
150
|
731
|
1135
|
1561
|
1946
|
||||
|
175
|
841
|
1317
|
1813
|
2264
|
||||
|
200
|
952
|
1500
|
2066
|
2583
|
||||
|
230
|
1084
|
1718
|
2369
|
2965
|
||||
|
250
|
1172
|
1864
|
2571
|
3220
|
||||
|
300
|
1393
|
2229
|
3076
|
3857
|
||||
|
350
|
1614
|
2593
|
3581
|
4495
|
||||
|
400
|
1834
|
2958
|
4086
|
5132
|
||||
|
500
|
2276
|
3687
|
5096
|
6407
|
||||
|
600
|
2717
|
4416
|
6107
|
7681
|
||||
|
750
|
3379
|
5509
|
7622
|
9593
|
||||
|
1000
|
4482
|
7332
|
10147
|
12780
|
||||
Packing & Delivery
plywood or according the customer requirement for 40kw Natural gas/biogas/gas generator with stamford alternator
