Quick Details
-
Type:
-
12v cartridge heater
-
net wight:
-
20g
-
high precision:
-
yes
-
voltage:
-
12V/24 available
-
Thermocouple option:
-
J type and K type
-
the length of wire:
-
1meters
-
power:
-
40w
-
Wattage Tolerance:
-
+5%, -10%
-
Usage:
-
Temperature Sensor
Quick Details
-
Place of Origin:
-
China
-
After-sales Service Provided:
-
Online support
-
Heating pipes:
-
Heater Cartridge 12V40W
-
Type:
-
12v cartridge heater
-
net wight:
-
20g
-
high precision:
-
yes
-
voltage:
-
12V/24 available
-
Thermocouple option:
-
J type and K type
-
the length of wire:
-
1meters
-
power:
-
40w
-
Wattage Tolerance:
-
+5%, -10%
-
Usage:
-
Temperature Sensor

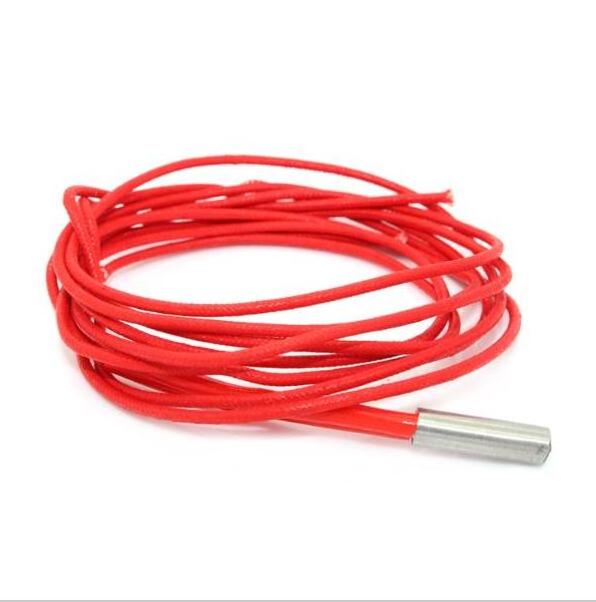

Heating pipes Heater Cartridge 12V40W/24V40w for Hot End J-Head 6*15/6*20/6*30 Single-head heating tube 3D printer accessories
12v 40w /24v 40 w cartridge heater (can be customize according to your requirements )
high quality high precision perfect for 3d printer
Heating pipes Heater Cartridge 12V40W/24V40w for Hot End J-Head 6*15/6*20/6*30 Single-head heating tube 3D printer accessories
Leading wire : 1meter
6*15/6*20/6*30 available
12V40W/24V40w avaiable
| Sheath material: | SUS304,321,316,Incoloy800,840 |
| Wattage Tolerance: | +5%, -10% |
| Resistance tolerance: | +10%, -5% |
| Voltages available: | 380V,240V, 220V,110V,36V,24V or 12V |
| Max operating temp: | 800ºC |
| Length tolerance: | ±1 mm |
| Diameter tolerance: | -0.02mm |
| Standard Cold Zone: | 5-10mm |
| Thermocouple Location: | type J or K are available |
| Insulation resistance (cold): | ≥ 500 MΩ |
| Maximum leakage current (cold): |
≤ 0.5 mA
|
Applications:
1. Liquid Immersion
2. Plastic Molds
3. Dies
4. Labeling
5. Medical Equipment
6. Platens
7. Packaging Equipment
8. Hot Stamping
9. Sealing
10. Injection Molding
We also have NTC 100k thermistor with 2 pin wire and without wire
we also have kinds of jumper wire:
2pin male-male jumper wire ,2pin femeal-femeal jumper wire
3pin femeal -femeal jumper wire 3pin meal-femeal jumper wire
4pin femeal -femeal jumper wire 4pin meal-femeal jumper wire
