- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
A year or 1,000 working hours
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Poweronly
-
Model Number:
-
BDE625
-
Speed:
-
1500RPM/1800RPM
-
Weight:
-
5100KGS
-
Product Name:
-
Diesel Genertor
-
Engine type:
-
Silent diesel generator
-
Alternator:
-
Brushless, China Stamford, Original Stamford, Marathon, Leroy somer
-
Generator Type:
-
Open, silent, trailer, containerized
-
Control panel:
-
LCD Digital Display
-
Certificate:
-
CE, ISO9001
-
Options 1:
-
ATS/Container/Trailer
-
Options 2:
-
Customer's Logo
-
Package:
-
Plywood, plastic film packing
-
After sales service:
-
Lifetime consultant
Quick Details
-
Rated Voltage:
-
400V/230V 380V/220V 220V/110V
-
Rated Current:
-
900A
-
Frequency:
-
50HZ/60HZ
-
Warranty:
-
A year or 1,000 working hours
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Poweronly
-
Model Number:
-
BDE625
-
Speed:
-
1500RPM/1800RPM
-
Weight:
-
5100KGS
-
Product Name:
-
Diesel Genertor
-
Engine type:
-
Silent diesel generator
-
Alternator:
-
Brushless, China Stamford, Original Stamford, Marathon, Leroy somer
-
Generator Type:
-
Open, silent, trailer, containerized
-
Control panel:
-
LCD Digital Display
-
Certificate:
-
CE, ISO9001
-
Options 1:
-
ATS/Container/Trailer
-
Options 2:
-
Customer's Logo
-
Package:
-
Plywood, plastic film packing
-
After sales service:
-
Lifetime consultant

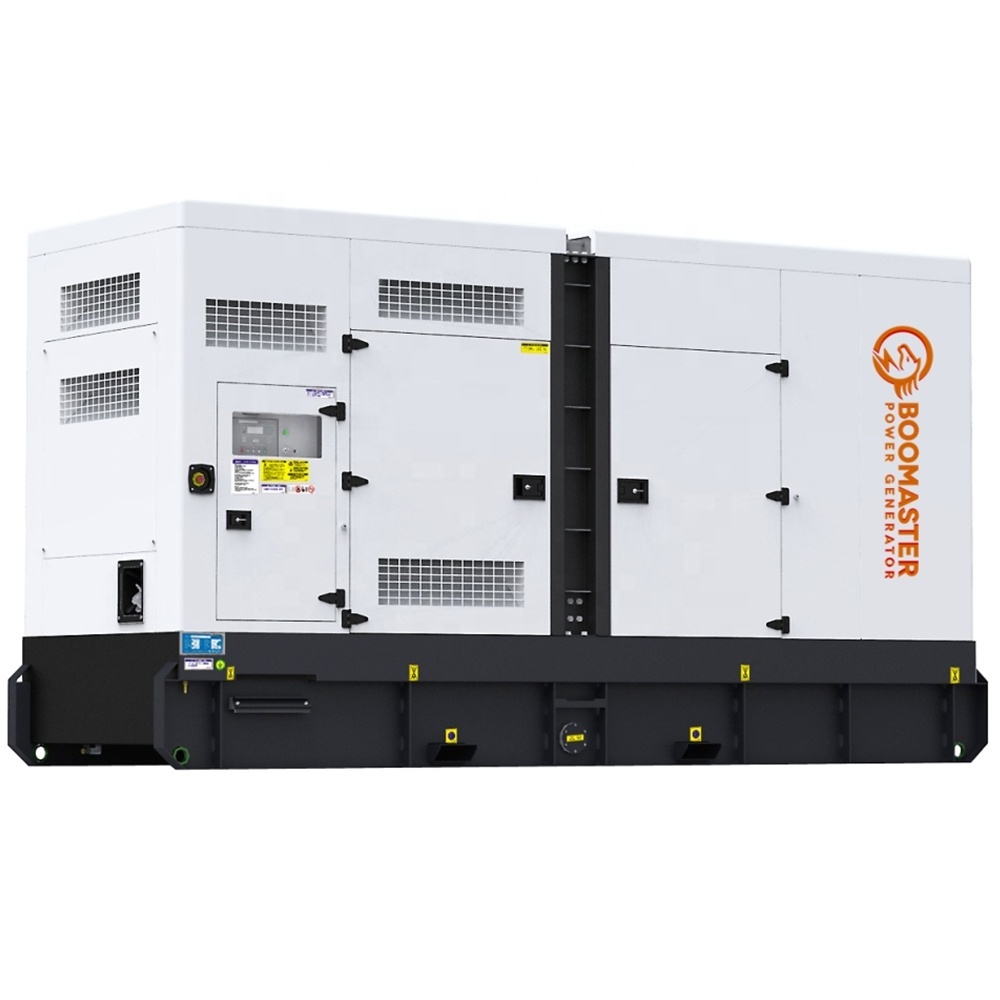

SDEC 500KW Silent Diesel Generator Weatherproof SDEC Engine Diesel Generators For Sale
Technical Parameter
Technical Parameter
|
Generator set
|
||||||||
|
Brand
|
Poweronly
|
|||||||
|
Manufacturer
|
Boomastesr
Power
|
|||||||
|
Production location
|
Fujian Province, China
|
|||||||
|
Model Number
|
BSD625
|
|||||||
|
Rated power
|
625KVA/500KW
|
|||||||
|
Rated current
|
900A
|
|||||||
|
Rated Voltage
|
400V/230V 380V/220V 220V/110V
|
|||||||
|
The power factor
|
Cos Phi 0.8
|
|||||||
|
Frequency
|
50HZ/60HZ
|
|||||||
|
Weight
|
5100kg
|
|||||||
|
Volume
|
19.20m³
|
|||||||
|
Size
|
4750*1650*2450mm (L×W×H)
|
|||||||
|
Engine
|
||||||||
|
Brand
|
SDEC
|
|||||||
|
Model Number
|
SC27G755D2
|
|||||||
|
Rated power
|
The commonly use 450KW/ The standby 500kw
|
|||||||
|
Number of cylinders
|
12 cylinders
|
|||||||
|
Cylinder structure
|
V shape
|
|||||||
|
Bore and stroke
|
159*159
|
|||||||
|
Fuel
|
diesel
|
|||||||
|
Rated Speed
|
1500RPM/1800RPM
|
|||||||
|
Intake Type
|
Turbocharged & Mid-cooling
|
|||||||
|
Mode of speed regulation
|
Electrical
|
|||||||
|
Mode of cooling
|
Closed water circulation cooling
|
|||||||
|
Generator set
|
||||||||
|
Brand
|
Poweronly
|
|||||||
|
Production location
|
Fujian Province, China
|
|||||||
|
Model Number
|
TFW2-500KW
|
|||||||
|
Rated power
|
500KW/625KVA
|
|||||||
|
Rated Voltage
|
400V/230V 380V/220V 220V/110V
|
|||||||
|
Adjustment range of voltage output
|
110V-690V
|
|||||||
|
Phases
|
Three-phase
|
|||||||
|
Excitation way
|
Brushless self-excitation
|
|||||||
|
Connection mode
|
Y shape
|
|||||||
|
Insulation class
|
F
|
|||||||
|
Winding material
|
Copper wire
|
|||||||
|
Voltage Regulator
|
AVR
|
|||||||
