Quick Details
-
Filling Accuracy:
-
≥99%
-
Voltage:
-
110V 220V 380V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
paixie
-
Dimension(L*W*H):
-
2200*900*1800mm
-
Weight:
-
600 KG
-
Machine Name:
-
kitchen condiment coffee liquid soy sauce smart filling machine
-
Yield:
-
60 bottles/ minute(Customized)
-
Accuracy:
-
≥99%
-
Driving:
-
Servo motor
-
Metal Quality:
-
SS304 and SS316
-
Work voltage:
-
110/220/380V 50/60HZ
-
Power:
-
1-3.5KW
-
package:
-
Wooden case
-
After-sales Service Provided:
-
Online technical support
Quick Details
-
Machinery Capacity:
-
4000BPH, 8000BPH, 12000BPH, 6000BPH, 400BPH, 20000BPH, 16000BPH, 500BPH, 2000BPH, 1000BPH, 100BPH, 200BPH
-
Packaging Material:
-
Metal, Wood
-
Filling Material:
-
Other, Milk, Water, Juice
-
Filling Accuracy:
-
≥99%
-
Voltage:
-
110V 220V 380V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
paixie
-
Dimension(L*W*H):
-
2200*900*1800mm
-
Weight:
-
600 KG
-
Machine Name:
-
kitchen condiment coffee liquid soy sauce smart filling machine
-
Yield:
-
60 bottles/ minute(Customized)
-
Accuracy:
-
≥99%
-
Driving:
-
Servo motor
-
Metal Quality:
-
SS304 and SS316
-
Work voltage:
-
110/220/380V 50/60HZ
-
Power:
-
1-3.5KW
-
package:
-
Wooden case
-
After-sales Service Provided:
-
Online technical support
Product description:

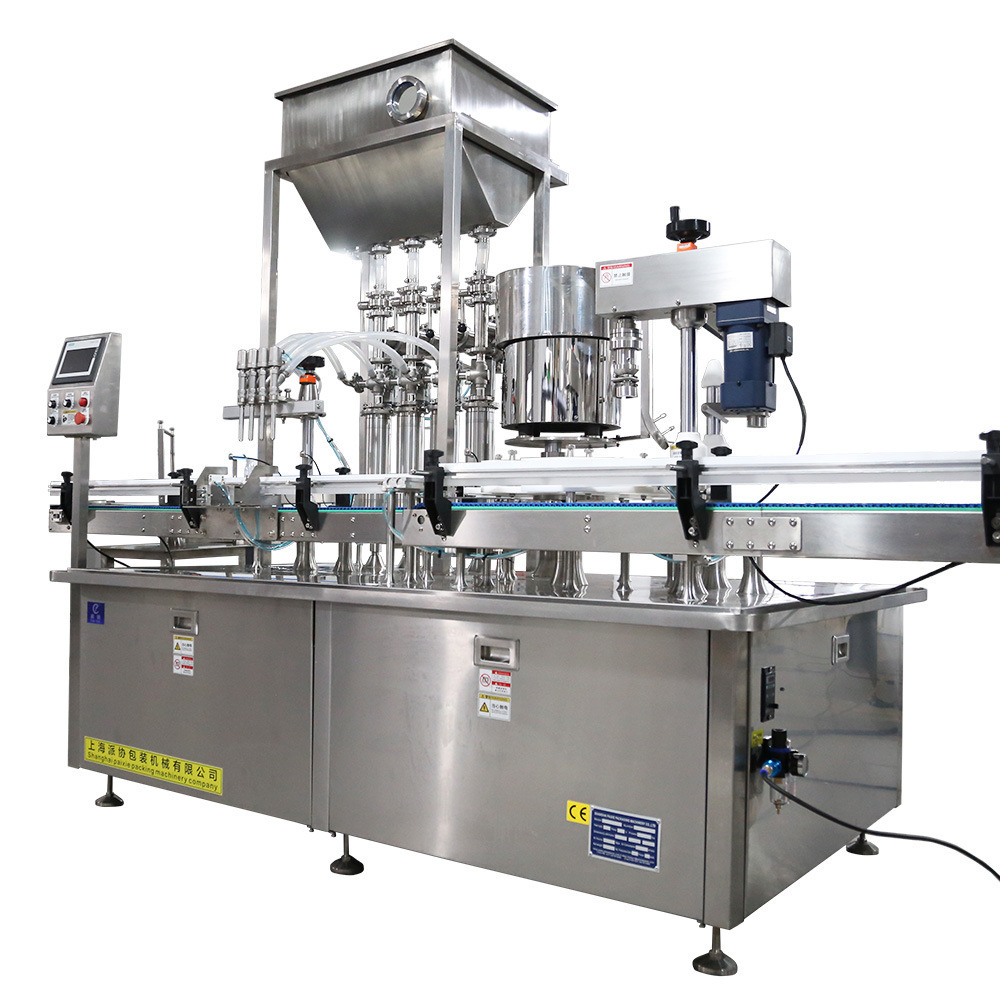

The new PX-BFC80 SmartFiller all-in-one filling line is rated for up to 60 fills per minute, depending on fill volume. Use in-line filling 200-1000ml soy sauce, vinegar, dark soy sauce containers. Soy sauce is similar to syrup. The BFC80 Smartfiller is driven by a servo motor and filled through a piston cylinder, which meets the food requirements as a whole. With vial detecting sensor, machine is able to set all filling order, no bottle no filling, no cap no torquing. Servo motor ensures high precision.
Main technical parameter:
| Product Name |
kitchen condiment soy sauce smart filling machine |
|
Yield |
60 BPM (customized) |
|
Filling heads |
4 (Customized) |
|
Filling pump |
Piston pump |
|
Work voltage |
110/220/380V 50/60HZ |
|
Air presstion |
0.6MPA |
|
Accuracy |
≥99% |
|
Power |
3KW |
|
Driving |
Servo motor |
|
Pump volume |
200-1000ml |
|
United size |
2200*900*1800mm |
|
Hot filling |
Normal temperature filling |
|
Weight |
600KG |
|
Material |
SS304+SS316 |
|
HMI |
7.5” Color Touch Screen Control |
| Protection | Comprehensive Safety Alarm System |
| Speed controller | Variable Speed Controls |
| Detecting system | Vial Detector & Counter |
1- How can I fill so many formats my bottles with the machine perfectly without complex adjusment?
2- How can I understand your quality? I do not want any kinds bad machine which failed to live up to my investment.
3- How can I know your machine life? It looks always beautiful but only in your room.
4- How can I install such a big long machine by myself? It looks never easy at all.
5- How can I recognize the real difference in chinese market? So many suppliers quoted me every day!!!
6- What should I do if the machine is broken? Who is gonna to help me?
Compared with traditional machinery, PAIXIE smart filler has characters below which are beneficial to each customer operation experience:
1- With servo driving , operator just edit the filling parameter on HMI to realize all kinds products packing.
2- 150mm width SS304 protection frame which equiped with induction switch is able to stop machine whenever operator open the plexiglass door which is good for human protection.
3- PAIXIE'S machines are all equiped with scale rules for diffeferent kinds bottle replacing , which is convenient for date recording and save the time in adjusting.
4- All PAIXIE'S machine are made of SS304+SS316 which avoiding pollution perfectly, protect the quality of customer's product.
5- Machines are delivered as whole which solving the stress of after-sale installation for customer . PAIXIE'S technicians are standing by all time for on-site service
Filling and capping station
