2. Planned output.
We will formulate the most suitable plan for you according to the output.
- Product Details
- {{item.text}}
Quick Details
-
Production Capacity:
-
40-230bags/min
-
Weight (KG):
-
420
-
Voltage:
-
220V, 50/60Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jason Machinery
-
Dimension(L*W*H):
-
3770*670*1450 mm
-
Product name:
-
Pillow packing machine
-
Film width:
-
Max 250mm
-
Bag length:
-
65-190 or 120-280mm
-
Bag width:
-
30-110mm
-
Product height:
-
Max 40/50mm
-
Roll film diameter:
-
Max 320mm
-
Packing speed:
-
40-230 bags/min
-
Machine size:
-
3770*670*1450 mm
-
Weight:
-
420kg
Quick Details
-
Function:
-
FILLING, Wrapping, Labeling, Sealing, BOXING
-
Packaging Type:
-
Bags, Pouch
-
Packaging Material:
-
Plastic
-
Production Capacity:
-
40-230bags/min
-
Weight (KG):
-
420
-
Voltage:
-
220V, 50/60Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jason Machinery
-
Dimension(L*W*H):
-
3770*670*1450 mm
-
Product name:
-
Pillow packing machine
-
Film width:
-
Max 250mm
-
Bag length:
-
65-190 or 120-280mm
-
Bag width:
-
30-110mm
-
Product height:
-
Max 40/50mm
-
Roll film diameter:
-
Max 320mm
-
Packing speed:
-
40-230 bags/min
-
Machine size:
-
3770*670*1450 mm
-
Weight:
-
420kg

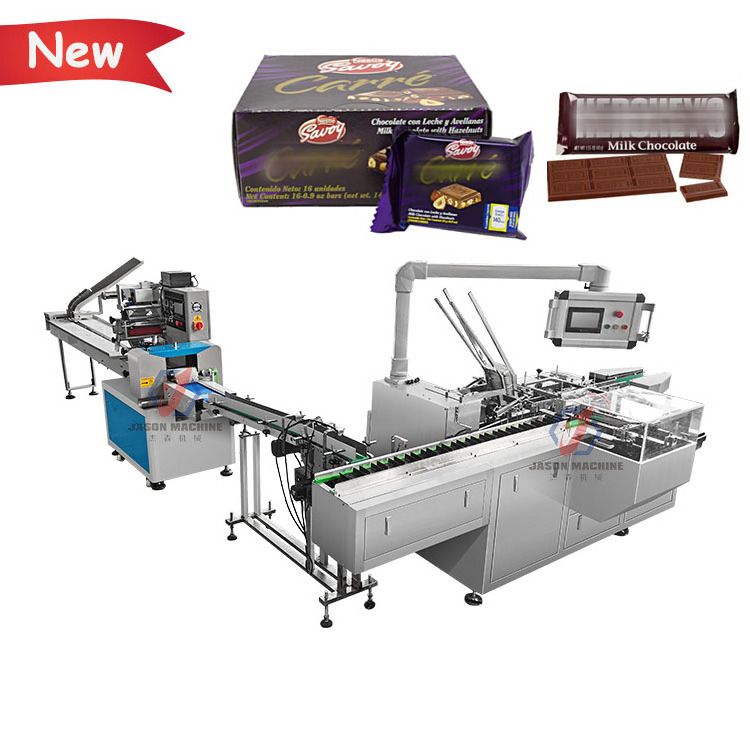

Chocolate packaging machine automatic cartoning chocolate bars box packing machine manufacturers
The machine is suitable for packaging various regular objects such as biscuits, pies, chocolates, energy bars, bread, moon cakes, daily necessities, industrial parts, cartons, trays, etc.
Horizontal Packing Machine
Main Features
1. The Packing machine Integrate Bag-making, filling, sealing, cutting, heating, date / lot number achieved in one progress.
2. Independent temperature controller with heat balance enables different packing materials; Dual inverters controller, upgradable PLC system, self-failure diagnosis, double encoder.
3. Automatic stop function, with safe operation and saving the film. One worker is able to operate it , Saving labor costs.
4. Easy to operation and maintenance.The machine can be moved to any workplace, whether it is a home or a factory.
5. The length of the machine can be appropriately shortened according to customer requirements. The machine can also be converted to dual servo control by variable frequency control.
|
Film width
|
Max 250mm
|
Max 350mm
|
|
Bag length
|
65-190 or 120-280mm
|
90-220 or 150-330mm
|
|
Bag width
|
30-110mm
|
50-160mm
|
|
Product height
|
Max 40/50mm
|
Max 45/80mm
|
|
Roll film diameter
|
Max 320mm
|
Max 320mm
|
|
Packing speed
|
40-230 bags/min
|
40-230 bags/min
|
|
Power
|
220/380v 2.4kw
|
220/380v 2.6kw
|
|
Machine size
|
3770*670*1450 mm
|
3770*720*1450 mm
|
|
Weight
|
420kg
|
450kg
|
Automatic Cartoning Machine
|
Cartoning speed
|
40-70 boxes/min
|
|
Quality requirement
|
250-450g sqm(According to box dimensions )
|
|
Size range
|
70-220(L)x 35-170(W)x 20-100(H)mm
|
|
Power supply
|
220V 50/60Hz
|
|
Total power
|
1.5Kw
|
|
Machine dimension
|
3200*1200*1700*mm
|
|
Machine weight
|
1300Kg
|
The working platform is made of stainless steel, easy to clean and maintain, and ensure safe packaging.
Coordinating the film pulling process with Multi-linkage roll film shaft. adapt to more film material, film rolling process is smoother.
Intelligent PID independent temperature control, tight sealing, beautiful bag shape.
Rotary cutting device, high work efficiency, flat incision of packaging bag.
The box storage slot can store a large number of cartons, improve work efficiency, and facilitate the suction cup to pick up and open the box.
The product is fed into the carton through the eccentric wheel and guide rail to complete the packing action.
4. Acceptance and testing
After the machine completes production, it will undergo rigorous testing to ensure reliable quality
Foshan Jason Automation Equipment Co., Ltd. is a manufacturer of automatic packaging equipment.
We are a production-oriented enterprises focused on product innovation, factory direct sales and
perfect after-sales service in one.
The automatic packaging equipment for granule, powder, liquid and sauce produced by the Jason company is at the advanced level of the industry，it can be customized production automatic material packaging line for all kinds of products.
1.
7 years
of R&D experience.
2. More than
30 engineer teams.
3. Hot sell in
more than 40
countries and regions.
4.
More than 100
production line solutions
1.Provide video training services
Our technical team has carefully shot more than 300 videos of various accessories and machine installation explanations, providing permanent video training guarantee services for the equipment.
FAQ
1: How to find a Packing machine suitable for my product?
Tell me about your product details. 1. What kind of product you have. 2. The size of your product( the length, width, and height).
2: Is an engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine
installation and assist you till the end.
3. Are you a factory or trading company?
We are the factory, and especially R&D, manufacture and sell various packing euipments. We have engaged in the packing R&D and production for over 10 years.
4. What's your payment way?
T/T by our bank account directly, or by Alibaba trade assurance service, or by West Union, or in cash.
5. How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality
checking by yourself or by your contacts in China.
6. We are afraid you won't send us the machine after we send you the money?
Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance
service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
7. Why we should choose your company?
We are professional in packing machines for over 10 years, and we provide better after-sales service. You guarantee no risk for our deal.
Tell me about your product details. 1. What kind of product you have. 2. The size of your product( the length, width, and height).
2: Is an engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine
installation and assist you till the end.
3. Are you a factory or trading company?
We are the factory, and especially R&D, manufacture and sell various packing euipments. We have engaged in the packing R&D and production for over 10 years.
4. What's your payment way?
T/T by our bank account directly, or by Alibaba trade assurance service, or by West Union, or in cash.
5. How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality
checking by yourself or by your contacts in China.
6. We are afraid you won't send us the machine after we send you the money?
Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance
service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
7. Why we should choose your company?
We are professional in packing machines for over 10 years, and we provide better after-sales service. You guarantee no risk for our deal.
Tell us your requirements, tell us your product information,
we will have a professional staff to provide you with a most suitable packaging solution!
You can also send us samples, we can provide free trial packaging service!
we will have a professional staff to provide you with a most suitable packaging solution!
You can also send us samples, we can provide free trial packaging service!
