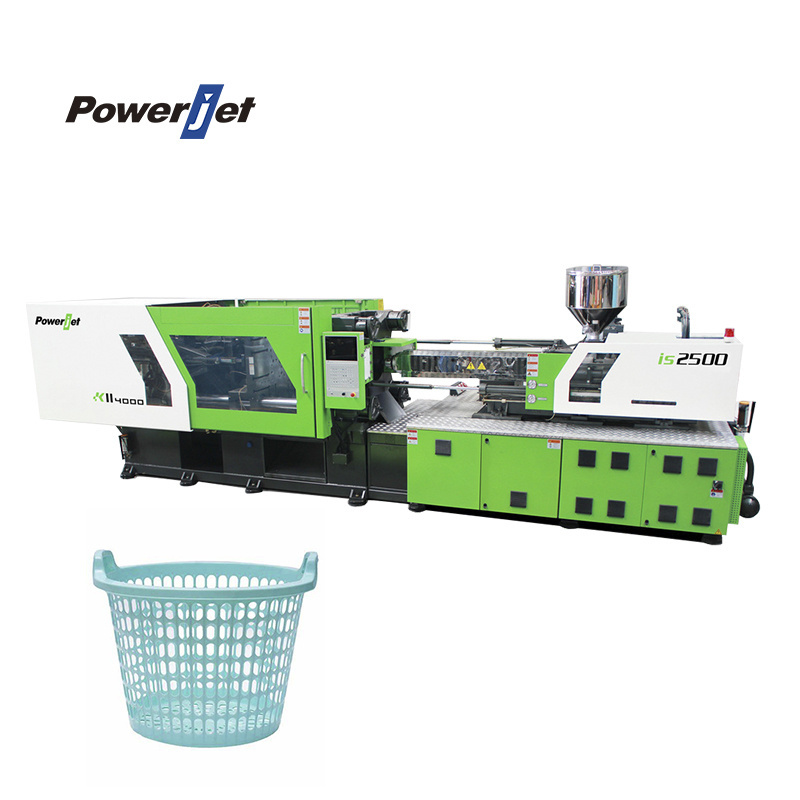

Powerjet 400 Ton Plastik Enjeksiyon Kalp Makinalar

Powerjet 400 Ton Plastik Enjeksiyon Kalp Makinalar

FOB Reference Price: Get Latest Price

≥1 Sets

US $49800

≥5 Sets

US $40000

≥10 Sets

US $26800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Ejector Stroke(mm):: 210 mm

Ejector Force(kN):: 110 kN

Theoretical Shot Volume(cm³):: 2099 cm³

Injection Rate (g/s):: 642 g/s

Injection Weight (g):: 1097 g

Screw diameter (mm):: 90 mm

Screw L/D Ratio:: 19

Weight (KG):: 13100 kg

Place of Origin:: Guangdong, China

Open Stroke(mm):: 710 mm

Model Number:: KII400-S7

Brand Name:: Powerjet

Power (kW):: 22 kW

Keyword:: Injection Machine

Name:: Powerjet

Color:: Green+black

BRAND:: POWERJET

Motor:: Servo

Model:: KII400-S7

Usage:: Injection Molding Machine Making Plastic Injection

Advantage:: Service

After-sales Service Provided:: Video technical support

Certification:: CE ISO9001

Quick Details

Distance between Tie Bars(Width)(mm):: 740mm

Distance between Tie Bars(Height)(mm):: 720mm

Plasticizing Capacity(g/s):: 94

Ejector Stroke(mm):: 210 mm

Ejector Force(kN):: 110 kN

Theoretical Shot Volume(cm³):: 2099 cm³

Injection Rate (g/s):: 642 g/s

Injection Weight (g):: 1097 g

Screw diameter (mm):: 90 mm

Screw L/D Ratio:: 19

Weight (KG):: 13100 kg

Place of Origin:: Guangdong, China

Open Stroke(mm):: 710 mm

Model Number:: KII400-S7

Brand Name:: Powerjet

Power (kW):: 22 kW

Keyword:: Injection Machine

Name:: Powerjet

Color:: Green+black

BRAND:: POWERJET

Motor:: Servo

Model:: KII400-S7

Usage:: Injection Molding Machine Making Plastic Injection

Advantage:: Service

After-sales Service Provided:: Video technical support

Certification:: CE ISO9001

Products Description

New sheet metal appearance design,novel and fashionable

Center-press toggle system designed, fast and stable

New improved injection system, higher

injection speed, more precise

S trengthen rigid frame, better damping performance, production more stable

New servo motor system, high response and high precision

CLAMPING UNIT

-Improve stability in molding

-Minimize platen's damage -Higher speed and stable platen's movement

Center- Press Toggle Unit

●Center press toggle system designed to apply equal force on mold during clamping and preventing platen's damage

●New design of the clamping structure, ensures the rigid mold platen enhancement increasing more than 20%.

●Anti-tilt side design of the foot ensures the opening and closing of smooth high-speed;

●European ejector design, enhances the adaptability of the mold;

●Low stress and long life bar structure.

INJECTION UNIT

---Precision, Stability, Good Plasticization---

● Improved injection mechanism,

● Efficient driving technology, ● Fully reduce injection resistance, ● Improve speed and accuracy, ● Ensure plasticizing quality

● Color mixing performance.

Centralized lubrication

Shooting and moving double rod structure, positioning is firmer and more accurate

Proportional back pressure control of melting

Structure of long life transmission shaft and anti- fatigue injection piston rod

C ONTROLLING UNIT

-----Easy To Use-----

PLC

. More reasonable electric circuit layout, improving anti-interference ability and stability;

. More powerful software, highscalability; Optimized control system, energy saving and high response

Specification

DESCRIPTION			UNIT	KII400-S7
LAMPING UNIT	Clamping force	KN	4000
		Opening stroke	mm	710
		Max.datlight	mm	1440
		Platen size	mm	1080*1060
		Space between bars	mm	740*720
		Max.mold height	mm	730
		Min.mold height	mm	300
		Ejector stroke	mm	210
		Ejector force	KN	110
INJECTION UNIT	Screw diameter	mm	90
		Screw L/D Ratio	L/D	19
		Injection Pressure	MPa	119
		Shot volume	cm3	2099
		Shot weight (ps)	g	1907
			oz	67.3
		Injection rate	g/s	642
		Screw stroke	mm	330
		Screw speed	rpm	160
POWER UNIT	Hydraulic system Pressure	MPa	17.5
		Pump motor power	KW	45/57
		Heater power	KW	22
GENERAL	Oil tank capacity	L	520
		Machine weight	T	13.1
		Machine dimensions (LWH)	m	7.971.972
