Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
shandong
-
Brand Name:
-
weier
-
Dimension(L*W*H):
-
310*220*135cm
-
Weight (KG):
-
800 KG
-
Product name:
-
400w co2 laser foam cutting engraving machine
-
Function:
-
Cutting Engraving Marking Non-metal Materials
-
Keywords:
-
Co2 foam laser cutting engraving machine
-
Laser tube type:
-
CO2 Sealed Laser Glass Tube
-
Type:
-
Water Cooling CO2 Laser Engraving Machines
-
File Format:
-
DXF / PLT / AI / JPG / BPM
-
Color:
-
Gray-white / Blue-white
-
Cutting thickness:
-
0-35mm Acrylic (others Determined
-
Cutting Speed:
-
10-500mm/s
-
Laser power:
-
400w
Quick Details
-
Engraving Area:
-
1300mm*2500mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
800mm/s
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
shandong
-
Brand Name:
-
weier
-
Dimension(L*W*H):
-
310*220*135cm
-
Weight (KG):
-
800 KG
-
Product name:
-
400w co2 laser foam cutting engraving machine
-
Function:
-
Cutting Engraving Marking Non-metal Materials
-
Keywords:
-
Co2 foam laser cutting engraving machine
-
Laser tube type:
-
CO2 Sealed Laser Glass Tube
-
Type:
-
Water Cooling CO2 Laser Engraving Machines
-
File Format:
-
DXF / PLT / AI / JPG / BPM
-
Color:
-
Gray-white / Blue-white
-
Cutting thickness:
-
0-35mm Acrylic (others Determined
-
Cutting Speed:
-
10-500mm/s
-
Laser power:
-
400w
Foam Board Laser Cutter 3d Photo Crystal

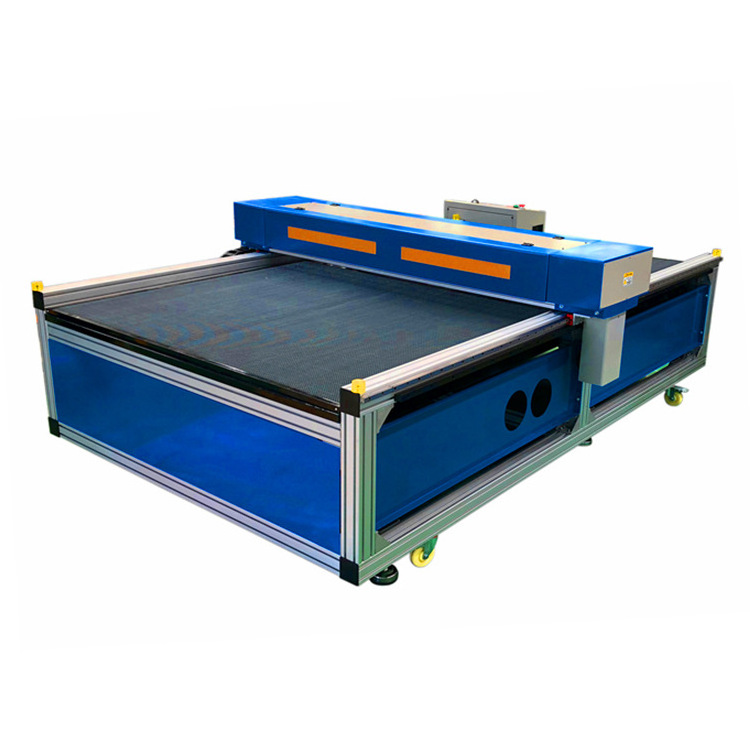

400w Co2 Laser Cutting Engraving Machine for Wood and Metal
Foam Board Laser Cutter 3d Photo Crystal 400w Co2 Laser Cutting Engraving Machine for Wood and Metal, High tempreture cutting non metal and metal, Matched with Mixed cutting head, auto focusing, Water cooling for lens and mirrors. Adopt D25mm focus lens and D30mm reflective mirrors. Knife blade table, and the welded steel frame or Industrial aluminum alloy assembly frame optional .
This set Foam Board Laser Cutter 3d Photo Crystal 400w Co2 Laser Cutting Engraving Machine for Wood and Metal includdes a set CW6000 industrial chiller with pretector and alarm, a set oil free air compressor, two sest fan, it is very high accury. we usually free give a focus lens for spare. this is 400w high power laser cutting engraving machine, mainly cutting thickness materials, like Wood, Acrylic, EVA, Rubber... Advantage on this machine is water-cooling for mirrors and focus lens, high quality co2 laser, mixed cutting head. Here are 3 types of machine for choose.
Technical indicators
| Name | Foam Board Laser Cutter 3d Photo Crystal 400w Co2 Laser Cutting Engraving Machine for Wood and Metal |
| Model | WJD-1325-400w |
| Working size | 1300*2500mm (W*L) |
| Laser power | 400W |
| Cutting speed | 1-40m/min (fabric, depends on materials) |
| Engraving speed | 5-50m/min |
| Power supply | AC220±10%, 50/60Hz |
| Positioning accuracy | ±0.1mm |
| Total power | <5500W |
| Operating temperature | 0-35℃ |
| Support file format | DXF/PLT/AI/JPG/BMP/etc |
| Working table | knife balde / honeycomb |
| Drive system |
Leadshine hybrid motor + Gear rack + Taiwan square linear guide |
| Cooling system | Industrial chiller cw6000 with protector |
| Control system | Ruida |
| Cutting head | Mixed cutting head with water-cooling |
| Attached equipment | Air compressor*1 set, Fan*2 set |
| Packing way | Plywood wooden case |
| Gross weight | About 800kgs |
Foam Board Laser Cutter 3d Photo Crystal 400w Co2 Laser Cutting Engraving Machine for Wood and Metal
1. Transmission system PMI linear guide rail + Gear rack , High precision, long life, Reduce maintenance cost.
2. Unique air suction structure maximizes the volume of exhaust air, Reduce wear.
3. Adopt D30mm mirror *3 , D25mm Lens *1, both are matched with water cooling device.
4. Automatic focus cutting head for cutting metal and non-metal.
5. Attched CW6000 industria chiler, oil free air compressor, fans
6. Machine frame can be welded steel or Industrial aluminum alloy assembly frame
Foam Board Laser Cutter 3d Photo Crystal 400w Co2 Laser Cutting Engraving Machine for Wood and Metal
suitable for Cloth, Home, Toys, AD, Packing box, Shoes, Bag, Craft , Outdoor product , Carpet, EVA, Sponge etc. Can cut and engrave non metal, like Leather, Fabric, Fur, Plastic, Paper, Acrylic, MDF, Wood etc
Foam Board Laser Cutter 3d Photo Crystal 400w Co2 Laser Cutting Engraving Machine for Wood and Metal
1. Outside package: Standard export plywood wooden case
2. Inner package: Stretchy film and plastic film for humidity.
3. According to demand
Pre-Sale Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
On-Purchase Service
* We update you the producted progress of your machine in every stage.
After-Sale Service
* One year warranty (except consumable parts), main parts are free of charge when problem happens during the warranty period.
* Lifetime technical support free of charge.
* Free training online or in our factory with our Professional Technician.
* Provide the consumable parts at dealers' price when needed.
* Online service 24 hours a day, free technical support with different languages.
* Provide door to door technical support to customers, if necessary.
Foam Board Laser Cutter 3d Photo Crystal 400w Co2 Laser Cutting Engraving Machine for Wood and Metal
We Weier Factory have our own R&D and After-sales service team , with more than 10 years of industry experience, Support Customization and OEM . Here are some different models we have made.
Foam Board Laser Cutter 3d Photo Crystal 400w Co2 Laser Cutting Engraving Machine for Wood and Metal
