Quick Details
-
Machine Weight:
-
2600 kg
-
Hydraulic Cylinder Brand:
-
China
-
Hydraulic Pump Brand:
-
China
-
Hydraulic Valve Brand:
-
China
-
Bucket capacity:
-
0.48cbm
-
Lifting Time:
-
5.0s
-
Driving Speed:
-
0-12km/h
-
Max.Turning Angle:
-
±35°
Quick Details
-
Engine Brand:
-
Kubota
-
Power:
-
37 KW, 17.2 kw, 25KW
-
Place of Origin:
-
China
-
Machine Weight:
-
2600 kg
-
Hydraulic Cylinder Brand:
-
China
-
Hydraulic Pump Brand:
-
China
-
Hydraulic Valve Brand:
-
China
-
Bucket capacity:
-
0.48cbm
-
Lifting Time:
-
5.0s
-
Driving Speed:
-
0-12km/h
-
Max.Turning Angle:
-
±35°

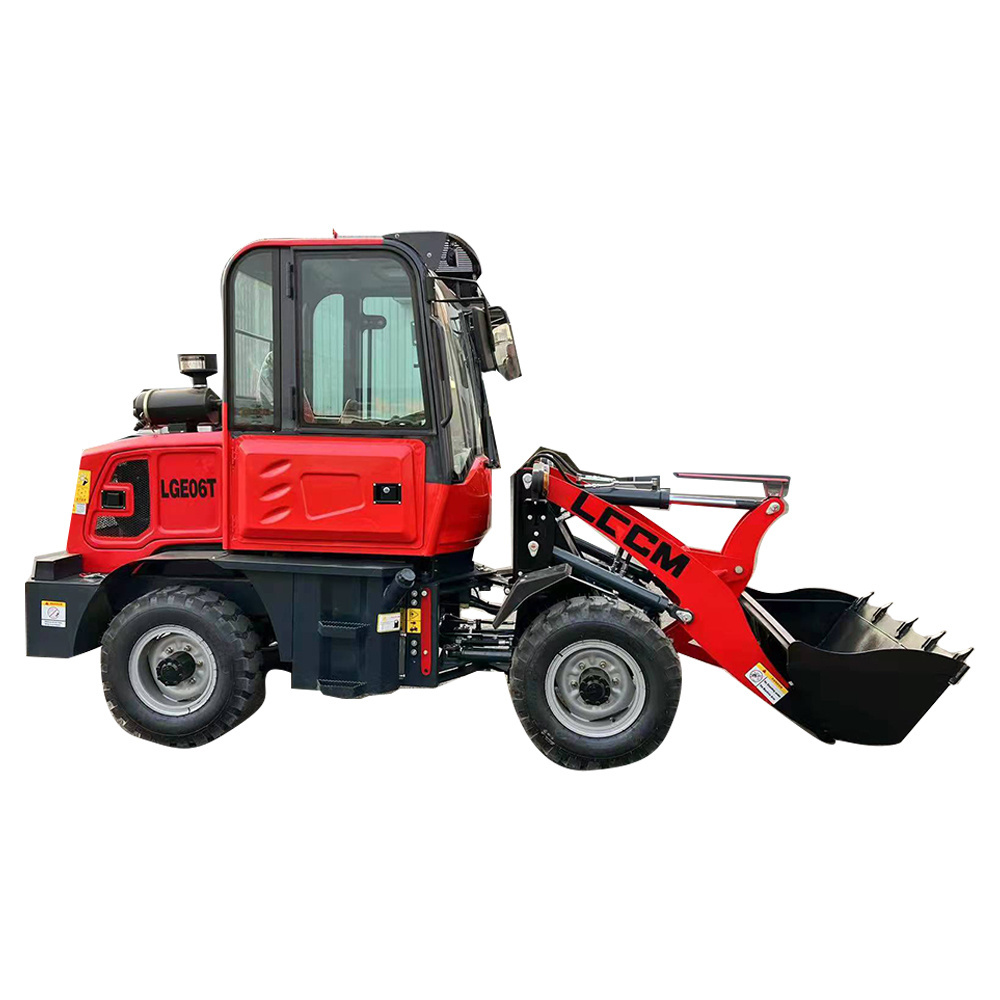

LAIGONG LGE06Twheel loader is a very powerful product, with compact size, strong engine power and optimized transmission, widely used in agriculture and forestry.
|
LGE06T
|
1.0 Engine Details
|
|
|
|
(1) Model:
|
CHANGCHAI ZN390Q
|
|
|
(2) Rated Power:
|
25 KW
|
|
|
(3) Rated Speed:
|
2400r/min(rpm)
|
|
|
2.0 Operating Specifications
|
|
|
|
(1) Bucket Capacity/Width:
|
0.48m3
|
|
|
(2) Loading Capacity:
|
800KG
|
|
|
(3) Operation Weight:
|
2600KG
|
|
|
(4) Lifting Time:
|
5.0s
|
|
|
(5) Driving Speed:
|
0-12km/h
|
|
|
(6)Min.Turning Radius:
|
4600mm
|
|
|
(7) Max.Turning Angle:
|
±35°
|
|
|
3.0 Overall Dimensions
|
|
|
|
(1) Overall length(bucket on ground)
|
4550mm
|
|
|
(2) Overall Height:
|
2490mm
|
|
|
(3) Overall width:
|
1500mm
|
|
|
(4) Dumping Height:
|
2150mm
|
|
|
(5) Dumping Reach:
|
1150mm
|
|
|
(6) Min.Ground Clearance:
|
240mm
|
|
|
(7) Lifting Height:
|
3270mm
|
|
|
(8) Lifting Distance:
|
1360mm
|
|
|
(9) Wheel Base:
|
2050mm
|
|
|
4.0 Brake System
|
|
|
|
(1) Service Brake:
|
Four wheel hydraulic spread-shoe brake
|
|
|
(2) Breakout Force:
|
22KN
|
|
|
5.0 Tyre
|
|
|
|
(1) Standard Tyre:
|
31*15.5-15 Grass Tyre
|
|
|
(2) Optional Tyre:
|
10-16.5 Tyre or 20.5-16 Tyre or 8.25-16Tyre
|
