Products Description

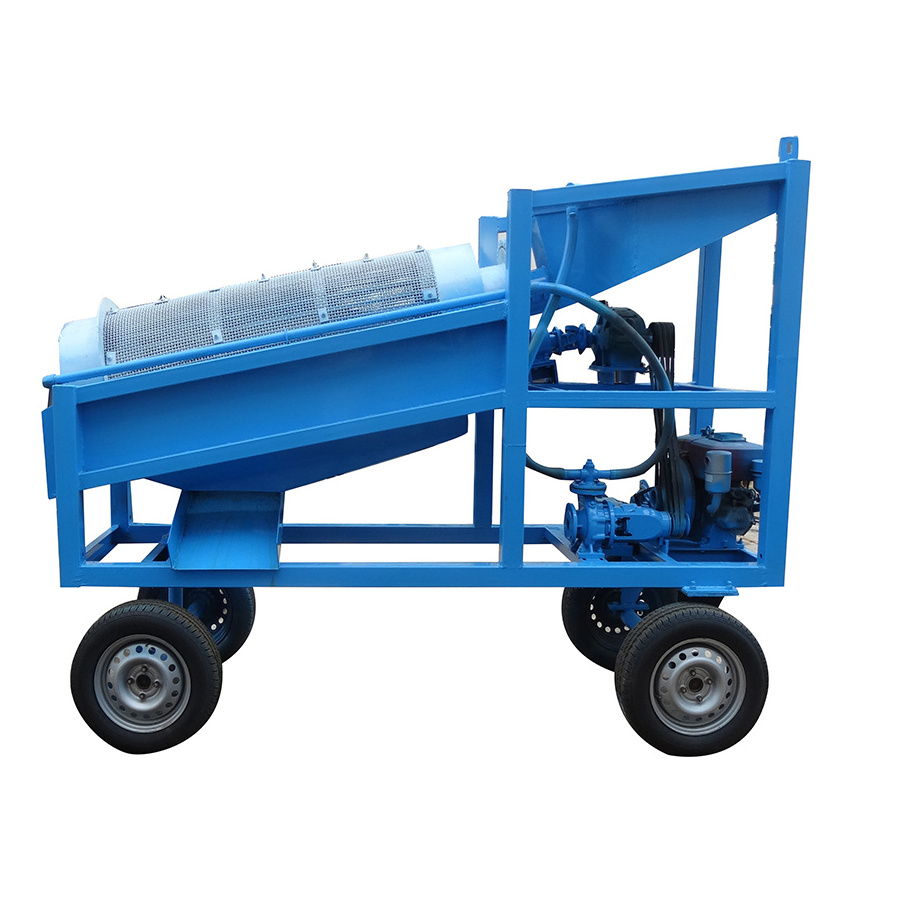

Small scale 5-10 tons alluvial gold washing plant mobile gold mining trommel screen with diesel engine
Trommel screen also known as rotary screen, is a kind of mechanical screen machine for separating mineral ore material, mainly used in the gold wash plant and solid waste treatment industry. The trommel controls the mineral separation by the size of the particles, and the separation precision is high.
Gelin Provide different specifications trommel screen with Stationary and Mobile Type;
Sieve size, Layer quantity, Power type, Wheel type... can be customization as required.
Stationary Type:
Gelin Provide different specifications trommel screen with Stationary and Mobile Type;
Sieve size, Layer quantity, Power type, Wheel type... can be customization as required.
Stationary Type:
|
Stationary Type
|
|
|
|
|
|
|
|
|
||||||||
|
Model
|
Capacity (t/h)
|
Power(kw)
|
Screen Diameter (mm)
|
Screen Length(mm)
|
Input Size (mm)
|
Output Size (mm)
|
Dimension (L*W*H)(mm)
|
Weight
(kg) |
||||||||
|
TW1015
|
50
|
3
|
1000
|
1500
|
≤300
|
0-100
|
2600×1400×1700
|
2200
|
||||||||
|
TW1020
|
100
|
4
|
1000
|
2000
|
|
|
3390×1400×2140
|
2800
|
||||||||
|
TW1225
|
160
|
5.5
|
1200
|
2500
|
|
|
4146×1600×2680
|
4200
|
||||||||
|
TW1530
|
250
|
7.5
|
1500
|
3000
|
|
|
4460×1900×2820
|
5100
|
||||||||
|
TW1545
|
350
|
11
|
1500
|
4500
|
≤400
|
|
5960×1900×3080
|
6000
|
||||||||
|
TW1848
|
450
|
15
|
1800
|
4800
|
|
6500×2350×4000
|
|
7500
|
||||||||
|
TW2055
|
600
|
22
|
2000
|
5500
|
|
7500×2550×4800
|
|
9600
|
||||||||
|
TW2265
|
800
|
30
|
2200
|
6500
|
|
8500×2750×5000
|
|
12800
|
||||||||
|
Note: above parameter is for reference,Screen Size,Layer,etc can be customized as required
|
|
|
|
|
|
|
|
|
||||||||
Mobile Type:
|
Mobile Type
|
|
|
|
|
|
|
|
|
||||||||
|
Model
|
Capacity (t/h)
|
Wheel
|
Water pump
|
Diesel engine/Electric Motor
|
Drum Dia. (mm)
|
Drum Length.
(mm) |
Screen size (mm)
|
Weight
|
||||||||
|
GL510
|
5-15
|
4
|
include
|
Alternative
|
500
|
1300
|
<3-20
|
1200
|
||||||||
|
GL615
|
10-20
|
4
|
include
|
Alternative
|
600
|
1500
|
<3-20
|
1500
|
||||||||
|
GL715
|
20-30
|
4
|
include
|
Alternative
|
600
|
1500
|
<3-20
|
1500
|
||||||||
|
GL815
|
30-40
|
4
|
include
|
Alternative
|
600
|
1500
|
<3-20
|
1500
|
||||||||
|
GL1020
|
40-100
|
4
|
include
|
Alternative
|
1000
|
2000
|
<3-20
|
2300
|
||||||||
|
GL1225
|
100-160
|
4
|
include
|
Alternative
|
1200
|
2500
|
<3-20
|
3000
|
||||||||
|
GL1530
|
150-200
|
4-6
|
include
|
Alternative
|
1500
|
3000
|
<3-20
|
4000
|
||||||||
|
GL1545
|
200-300
|
4-6
|
include
|
Alternative
|
1500
|
4500
|
<3-20
|
4500
|
||||||||
|
GL1848
|
300-450
|
4-6
|
include
|
Alternative
|
1800
|
4800
|
<3-20
|
6000
|
||||||||
|
GL2055
|
400-500
|
4-6
|
include
|
Alternative
|
2000
|
5500
|
<2-20
|
9000
|
||||||||
|
GL2265
|
500-700
|
4-6
|
include
|
Alternative
|
2200
|
6500
|
<2-20
|
12000
|
||||||||
|
Note: above parameter is for reference,Screen Size,Layer,etc can be customized as required
|
|
|
|
|
|
|
|
|
||||||||
Features
2.Large capacity range from 5t/h to 800t/h;.
3.Easy move around,operation,and maintenance;
4.Low investment,long service life.
Working Principe
When feeding ore material into the drum, the material begins to rotate and tumble inside the drum before calming down
intermittently. This revolution is completed along the length of the drum. Hence, the larger ones tumble to their exit through the rear end of the drum while the finer materials pass through the screen openings and then pass to the downstream process equipment, which can be in various forms, such as gold concentrator, spiral chutes, jig machines, Sluice box with carpet etc.Separation of different materials is done efficiently.
Sluice Box with Carpet
|
Parameter for Sluice Box with Carpet
|
|
|
|
|
||||
|
Sluice Box
|
|
|
Gold Carpet/Sluice Matting
|
|
||||
|
Width: 1000mm
Length: 5000mmOr refer to customers' request
Q235B for steel chute
steel thickness mm:8mm
|
|
|
The surface material of sluice mat/gold carpet is PE whose chemical name is polyethylene
The back side material is PA which is also called polyamide.
Length: 15 meters or as customers' request
|
|
||||
Normally the trommel need
water pump
to supply water source for operation,our factory supply IS series centrifugal water pump,which is widely used for supplying water to mining plant and industry and city.It can transport the clean water (T
＜80℃) and the liquid (physical and chemical character is similar as clean water).
|
Parameter for Water Pump
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Model
|
Speed
|
Capacity
|
Head
|
|
Max Efficiency
|
Suction
|
Dia. of Impeller
|
Diameter
|
|
|||||||||
|
|
n
|
Q
|
H
|
|
n
|
|
|
Inlet
|
Outlet
|
|||||||||
|
|
r/min
|
m2/h
|
m
|
KW
|
%
|
m
|
mm
|
mm
|
mm
|
|||||||||
|
IS80-65-125
|
2900
|
50
|
20
|
5.5
|
75
|
6.5
|
137
|
80
|
65
|
|||||||||
|
IS80-50-250
|
1900
|
50
|
80
|
22
|
63
|
7
|
250
|
80
|
50
|
|||||||||
|
IS100--65-200
|
2900
|
100
|
50
|
22
|
76
|
5.9
|
203
|
100
|
65
|
|||||||||
|
IS100-65-250A
|
2900
|
93.5
|
70
|
30
|
72
|
5.7
|
238.5
|
100
|
65
|
|||||||||
|
IS125-100-200A
|
2900
|
187
|
44
|
37
|
81
|
5.5
|
202.5
|
125
|
100
|
|||||||||
|
IS150-125-250
|
1450
|
400
|
20
|
37
|
82
|
6
|
275
|
200
|
150
|
|||||||||
|
IS200-150-315
|
1450
|
400
|
32
|
55
|
82
|
6.5
|
346
|
200
|
150
|
|||||||||
|
* IS--international standards singles-stage single-suction centrifugal pump
* 100--inlet diameter(mm) * 65--outlet diameter(mm)
* 250-- nominal outside diameter of impeller(mm)
* A--first cutting of impeller
|
|
|
|
|
|
|
|
|
|
|||||||||
Application&Successful Case
- gold mining plant for alluvial gold, placer, gold sand
- gold processing plant for river dirt gold with clay
The basically main machines matching are as below according to different mining condition:
a). Washing trommel+Centrifugal concentrator+Shaking table;
b). Washing trommel+Jig machine(Jigger)+Shaking table;
c). Washing trommel+Sluice box with grass mat(carpet).
a). Washing trommel+Centrifugal concentrator+Shaking table;
b). Washing trommel+Jig machine(Jigger)+Shaking table;
c). Washing trommel+Sluice box with grass mat(carpet).
Packing & Delivery
Packing
Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below:
1.
Nude packing.
2.
Bundle packing.
3.
Grass rope packing.
4.
Water proof packing.
5.
Wooden pallets packing.
6.
Wooden box or carton box packing.
Delivery
Usually the equipments are delivered aboard by
tracks,trains,or container(sea transportation). and some spare parts or very small goods also support to send by express
, our company have built good relationships with large cargo agent and shipping companies which guarantee our products delivered safely and promptly.Sea transportation includes three delivery ways as below:
1.
40HQ container
: used for goods without overlength, overheight and overweight;
2.
FR(Flat Rack) container
:suitable for large equipments with overlength,overheight like ball mill,excavator,etc.
3.
Bulk cargo shipment (LCL)
: used for some goods without loading in full container,normally it requires good packing with marks for safety and easy to be trackable.
