Widely Used styrofoam box machine for fish/fruit/vegetable/wine
Widely Used styrofoam box machine for fish/fruit/vegetable/wine
Widely Used styrofoam box machine for fish/fruit/vegetable/wine
Widely Used styrofoam box machine for fish/fruit/vegetable/wine
Widely Used styrofoam box machine for fish/fruit/vegetable/wine
Widely Used styrofoam box machine for fish/fruit/vegetable/wine
Widely Used styrofoam box machine for fish/fruit/vegetable/wine
Widely Used styrofoam box machine for fish/fruit/vegetable/wine

Widely Used styrofoam box machine for fish/fruit/vegetable/wine

FOB Reference Price: Get Latest Price
≥1 Sets
US $4500
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Voltage:
380V/50HZ or customized
Dimension(L*W*H):
4700x2240x3680mm
Warranty:
12 months
Power:
6.6-11kw
Weight:
3400KG
Application:
EPSpackaging box. icf panel,decoration cornice, fish box, fruit box
Automatic:
semi-automatic
Material:
Steel structure, stainless steel
Feature:
High efficiency, energy-saving, easy operation
Raw material:
expandable Polystyrene, Styrofoam, Thermocol
Certificate:
CE ISO9001
Machine Type:
eps ice boxes making machine
Color:
selectable color
HS code:
84778000 eps machine
Item:
Widely Used styrofoam box machine for fish/fruit/vegetable/wine

Quick Details

Place of Origin:
Zhejiang, China
Brand Name:
Milon
Model Number:
ML-1200-ML1750
Voltage:
380V/50HZ or customized
Dimension(L*W*H):
4700x2240x3680mm
Warranty:
12 months
Power:
6.6-11kw
Weight:
3400KG
Application:
EPSpackaging box. icf panel,decoration cornice, fish box, fruit box
Automatic:
semi-automatic
Material:
Steel structure, stainless steel
Feature:
High efficiency, energy-saving, easy operation
Raw material:
expandable Polystyrene, Styrofoam, Thermocol
Certificate:
CE ISO9001
Machine Type:
eps ice boxes making machine
Color:
selectable color
HS code:
84778000 eps machine
Item:
Widely Used styrofoam box machine for fish/fruit/vegetable/wine

Widely Used styrofoam box machine for fish/fruit/vegetable/wine

Product Description

---Product show---

Working flow of EPS shape production line

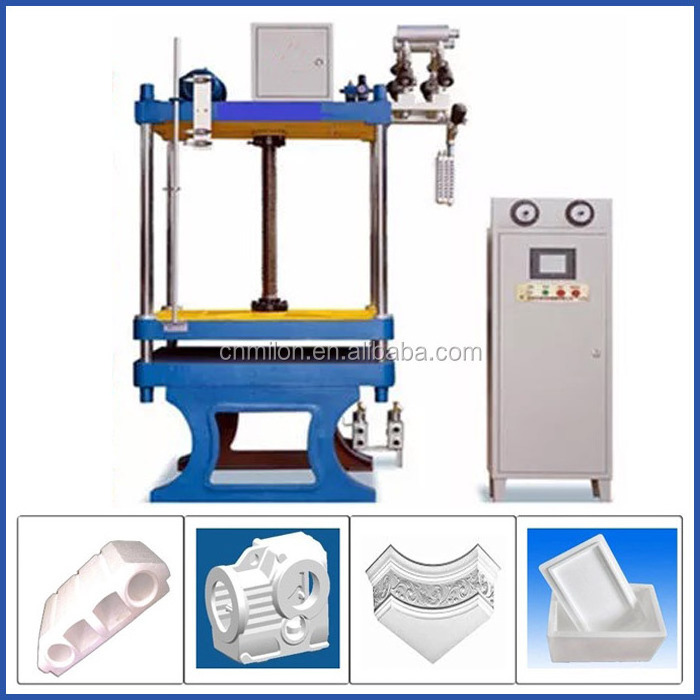

1.Picture of styrofoam box machine for fish/fruit/vegetable/wine

2.Technical data of styrofoam box machine for fish/fruit/vegetable/wine

Item

ML-1200

ML-1400

ML-1750

Mould Dimension(mm)

1200*1000

1400*1200

1800*1600

Product Dimension(mm)

1050*850*350

1250*1050*350

1650*1450*350

Stroke(mm)

150~1200

150~1200

150~1200

Steam

Entry(mm)

50

50

65

Consumption

5kg/cycle

6kg/cycle

6.5kg/cycle

Water Entry

Entry(mm)

50

50

65

Consumption

50~150 kg/cycle

50~180 kg/cycle

80~190 kg/cycle

Compressed Air Entry

Entry(mm)

40

40

50

Consumption

1.5m3/cycle

2m3/cycle

2.5m3/cycle

Vacuum Pump Capacity

230m3/h

290m3/h

290m3/h

Drainage

100KW

100KW

125KW

Cycle Time

70~140s

80~160s

100~200s

Connected Load

6.6KW

8.6KW

11KW

Weight

2600kg

3400kg

4500kg

3.Feature of styrofoam box machine for fish/fruit/vegetable/wine

  1. This machine is vertical structure,function with hydraulic pressure transmission. Fast mould opening and closing, mould locking firmly and stable performance, which makes machine steam saving.
  2. This machine applies PLC and touch screen, it is convenient to maintain.
  3. This machine applies various of expansion and ejecting mode to save more steam,which improve the quality of products.
  4. The machine is easy to operate ,no need training.

4.Application

5.Production flow EPS machine

6.Certificate

Packaging & Shipping

---Packaging & shipping---

MOQ

1 SET
Payment term T/T, L/C western union
Delivery 30days after receive deposit payment or L/C
Port Ningbo or Shanghai
Packing wooden,Bubble bag and standard export seaworthy packaging
